Precision Visual Inspection Using Camera
Specifications and Features
- Purpose/Function
-
Transport/Movement
Positioning/Clamp
Inspection/Measurement
Reproducibility of positioning of manual jigs.
Set the workpiece and secure it with a toggle clamp, then visually inspect the monitor image using a camera.
Toggle clamps are selected as top and bottom types for workpieces that can only be held by their upper and lower surfaces.

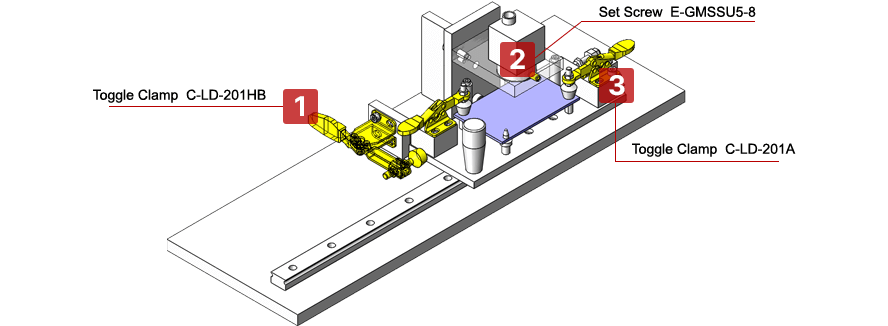

Environment/Operability: A mechanism that sets the workpiece in a wide space using a linear guide, moves it under the camera, and secures it with a toggle clamp.
Set the workpiece and secure it with a toggle clamp, then visually inspect the monitor image using a camera.
Toggle clamps are selected as top and bottom types for workpieces that can only be held by their upper and lower surfaces.
Environment/Operability: A mechanism that sets the workpiece in a wide space using a linear guide, moves it under the camera, and secures it with a toggle clamp.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Toggle Clamp | C-LD-201HB | Clamp bolt size: M5 Material: Steel (body), Steel (bolt) Clamping pressure (N): 400 |
1 | MYR 8.76/Unit |
| ② | Set Screw | E-GMSSU5-8 | Screw nominal (M): 5 Length L(mm): 8 Material: Stainless steel RoHS10 compliant |
2 | MYR 0.25/Unit |
| ③ | Toggle Clamp | C-LD-201A | Clamp bolt size: M4 Material: Nylon (body), Nylon (bolt) Clamping pressure (N): 264 |
2 | MYR 6.99/Unit |
※ Kindly check MISUMI eCatalog for latest information.
Product List
1![Hex Socket Set Screws - Cup Point, Stainless Steel[RoHS Comliant]](/pr/vona/eco_design/images/110310926189.jpg)
2
3
※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
