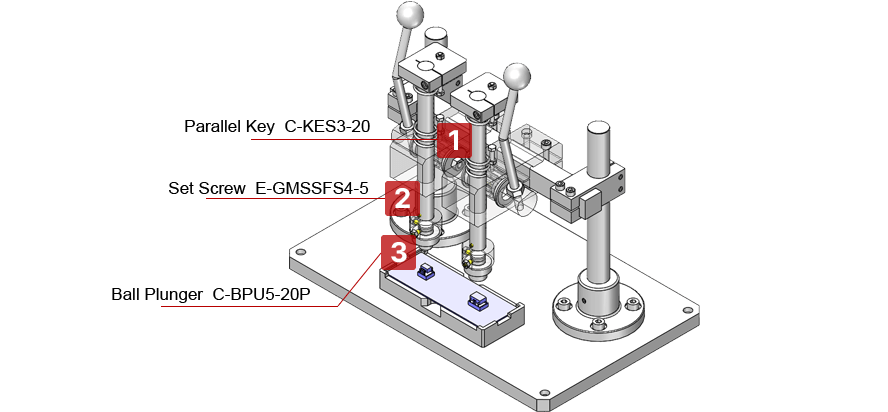

Different Position Press-Fit Jig

Specifications and Features

Purpose/Function

Positioning/Clamp Set up

Manual assembly for small-volume production, installing operational amplifiers into sockets set on the circuit board.
Maintain the pressing direction even when changing position by using a square support.
Consider preventing rotation of the circular rack if you want to maintain the angle of the tip jig.
Rack and pinion mechanism that achieves 50 [N] of pressure with an operating load of 10 [N] or less.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Parallel Key	C-KES3-20	Shape: Parallel key (rounded on both ends) Width (mm): 3 Total length (mm): 20 Material: Steel	2	MYR 1.38/Unit
②	Set Screw	E-GMSSFS4-5	Screw nominal (M): 4 Length L(mm): 5 Material: Stainless steel RoHS10 compliant	2	MYR 0.17/Unit
③	Ball Plunger	C-BPU5-20P	Material: Steel (body), Stainless steel (ball) Outer diameter M(mm): 5 Stroke (S)(mm): 1 Load range (N): 3~10	4	MYR 32.66/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Parallel Keys Straight / Round at One End / Round at Both End MYR 0.55 /Unit Shipping: 1 Day

2 Hex Socket Set Screws - Flat End, Stainless Steel, Box / Single Item[RoHS Comliant] MYR 0.17 /Unit Shipping: 4 Days

3 Ball Plungers Stainless Steel, White Zinc Plated MYR 18.08 /Unit Shipping: 1 Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
