Economy Cross Roller Guide

Product Features

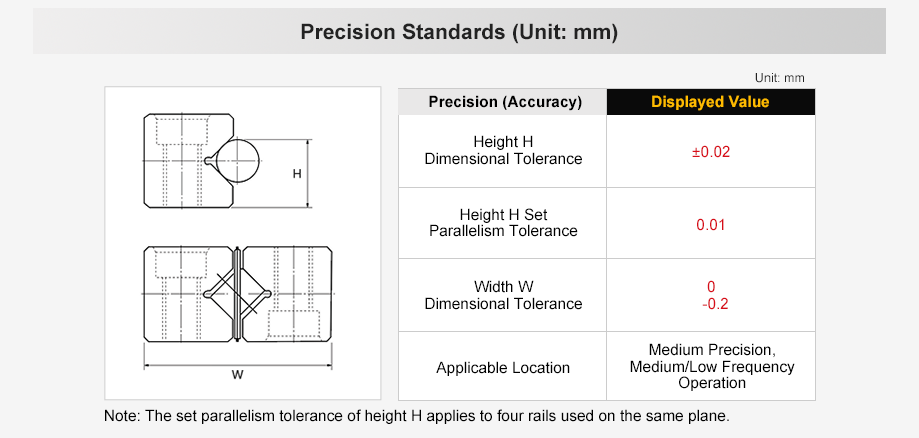

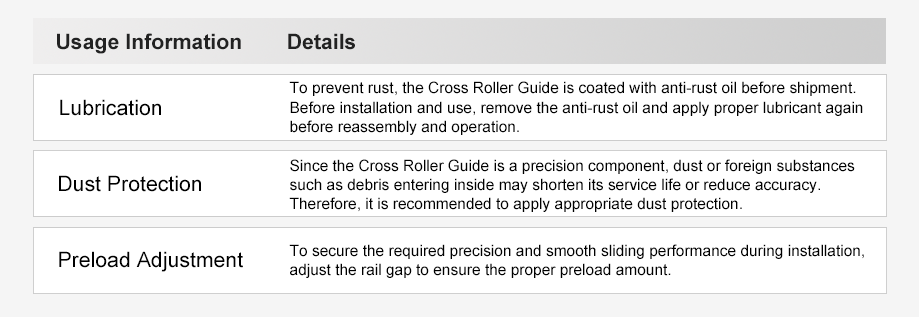

Medium precision, medium/low frequency operation To prevent rust, it is recommended to apply anti-rust oil and dust-proof treatment before shipment, and to secure preload to obtain precision and slipperiness.

Cross Roller Guide Installation Procedure

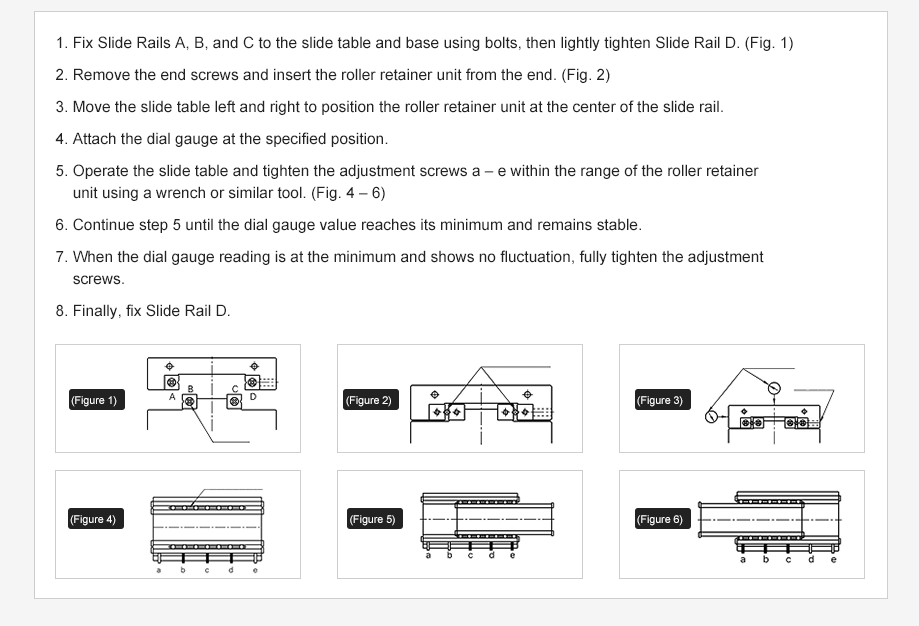

Cross roller guide installation sequence

Usage Example

Rollers are arranged alternately at right angles to two V-shaped groove guide rails, and the rollers roll along the V-shaped grooves.
