Gas Spring -Global Standard Type GSV-
Click this image to zoom it.
Move the mouse over the image to zoom
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Outer diameter (D) (mm) | Stroke (S) (mm) | L Dimension (L) (mm) | Initial load (N) | Maximum load (N) | Brand |
|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 306.16 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 13 | 64 | 10600 | 17900 | MISUMI | |
MYR 306.16 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 16 | 70 | 10600 | 18370 | MISUMI | |
MYR 306.16 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 19 | 76 | 10600 | 18920 | MISUMI | |
MYR 308.68 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 25 | 88 | 10600 | 19750 | MISUMI | |
MYR 311.58 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 32 | 102 | 10600 | 20440 | MISUMI | |
MYR 314.10 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 38 | 114 | 10600 | 20870 | MISUMI | |
MYR 316.98 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 50 | 138 | 10600 | 21490 | MISUMI | |
MYR 325.29 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 63 | 164 | 10600 | 21940 | MISUMI | |
MYR 325.66 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 75 | 188 | 10600 | 22230 | MISUMI | |
MYR 327.83 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 80 | 198 | 10600 | 22330 | MISUMI | |
MYR 338.30 | 1 Piece(s) | Available | 21 Day(s) | 10 | 50 | 100 | 238 | 10600 | 22640 | MISUMI | |
MYR 349.49 | 1 Piece(s) | Available | 21 Day(s) | - | 50 | 125 | 288 | 10600 | 22900 | MISUMI | |
MYR 118.42 | 1 Piece(s) | Available | 21 Day(s) | - | 19 | 13 | 56 | 1700 | 2800 | - | |
MYR 124.56 | 1 Piece(s) | Available | 21 Day(s) | - | 19 | 32 | 94 | 1700 | 2800 | - | |
MYR 912.36 | 1 Piece(s) | Available | 21 Day(s) | - | 120 | 19 | 106 | 66000 | 9100 | MISUMI | |
MYR 917.04 | 1 Piece(s) | Available | 21 Day(s) | - | 120 | 25 | 118 | 66000 | 93900 | MISUMI | |
MYR 922.47 | 1 Piece(s) | Available | 21 Day(s) | - | 120 | 32 | 132 | 66000 | 96100 | MISUMI | |
MYR 1,552.43 | 1 Piece(s) | 23 Day(s) | - | 120 | 100 | 268 | 66000 | 105400 | MISUMI | ||
MYR 1,356.08 | 1 Piece(s) | Available | 31 Day(s) | - | 150 | 19 | 116 | 95000 | 135000 | MISUMI |
Loading...
Basic Information
| Set/single item | Body only |
|---|
Specification/Dimensions
-
type
- GSV
-
Outer diameter (D)(mm)
-
Stroke (S)(mm)
-
L Dimension (L)(mm)
-
Initial load(N)
-
Maximum load(N)
-
Brand
- MISUMI
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 21 Day(s) or Less
- 23 Day(s) or Less
- 31 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- Gas Springs -Mini Type MGSA-
- Gas Spring Plate -Plates for GSV/GST/GSK-
- Gas Springs -GSK-

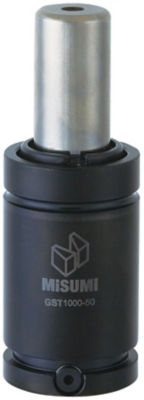

- Gas Spring -GST-
