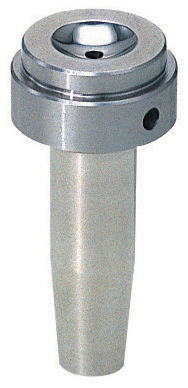

Sprue Bushings -Shoulder Type-

Click this image to zoom it.

Move the mouse over the image to zoom

MISUMI_Test

Part Number

Configured Part Number is shown.

Product TOP

: 30; 45; 60

Part Number
SBSD8-[0-80/0.1]-SR[0,10.5,11]-P[2,2.5,3,3.5]-A[0.5-3/0.5]
SBSD10-[0-120/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSD13-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSD16-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSD20-[0-200/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSD25-[0-200/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSM8-[0-80/0.1]-SR[0,10.5,11]-P[2,2.5,3,3.5]-A[0.5-3/0.5]
SBSM10-[0-120/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSM13-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSM16-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSS10-[0-100/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSS13-[0-100/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBSS16-[0-100/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]
SBTD12-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]-V[4-12.9/0.1]-G[1-10/1]
SBTD13-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]-V[4-12.9/0.1]-G[1-10/1]
SBTD16-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]-V[4-15.9/0.1]-G[1-10/1]
SBTD20-[0-200/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]-V[4-19.9/0.1]-G[1-10/1]
SBTM10-[0-120/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]-V[4-9.9/0.1]-G[1-10/1]
SBTM12-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]-V[4-12.9/0.1]-G[1-10/1]
SBTM13-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]-V[4-12.9/0.1]-G[1-10/1]
SBTM16-[0-150/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]-V[4-15.9/0.1]-G[1-10/1]
SBTM20-[0-200/0.1]-SR[0,10.5,11,12,13,16,20,21,23]-P[2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,8]-A[0.5-4/0.5]-V[4-19.9/0.1]-G[1-10/1]

Standard Unit Price	Minimum order quantity	Days to Ship	RoHS	Material	Tip matching shape	D (Shaft diameter) (mm)	L (Bearing bore length) (mm)	A (Taper angle at sprue) (°)	G (Taper angle) (mm)	P (Sprue diameter) (mm)	SR (Nozzle part) (mm)	V (Tip diameter) (mm)
-	1 Piece(s)	3 Day(s)	10	SKD61	Straight	8	0 ～ 80	0.5 ～ 3	-	2 ～ 3.5	0 ～ 11	-
-	1 Piece(s)	3 Day(s)	10	SKD61	Straight	10	0 ～ 120	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	SKD61	Straight	13	0 ～ 150	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	SKD61	Straight	16	0 ～ 150	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	SKD61	Straight	20	0 ～ 200	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	SKD61	Straight	25	0 ～ 200	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	HPM1 Equivalent	Straight	8	0 ～ 80	0.5 ～ 3	-	2 ～ 3.5	0 ～ 11	-
-	1 Piece(s)	3 Day(s)	10	HPM1 Equivalent	Straight	10	0 ～ 120	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	HPM1 Equivalent	Straight	13	0 ～ 150	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	HPM1 Equivalent	Straight	16	0 ～ 150	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	DC53	Straight	10	0 ～ 100	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	DC53	Straight	13	0 ～ 100	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	3 Day(s)	10	DC53	Straight	16	0 ～ 100	0.5 ～ 4	-	2 ～ 8	0 ～ 23	-
-	1 Piece(s)	4 Day(s)	10	SKD61	Tapered	12	0 ～ 150	0.5 ～ 4	1 ～ 10	2 ～ 8	0 ～ 23	4 ～ 12.9
-	1 Piece(s)	4 Day(s)	10	SKD61	Tapered	13	0 ～ 150	0.5 ～ 4	1 ～ 10	2 ～ 8	0 ～ 23	4 ～ 12.9
-	1 Piece(s)	4 Day(s)	10	SKD61	Tapered	16	0 ～ 150	0.5 ～ 4	1 ～ 10	2 ～ 8	0 ～ 23	4 ～ 15.9
-	1 Piece(s)	4 Day(s)	10	SKD61	Tapered	20	0 ～ 200	0.5 ～ 4	1 ～ 10	2 ～ 8	0 ～ 23	4 ～ 19.9
-	1 Piece(s)	4 Day(s)	10	HPM1 Equivalent	Tapered	10	0 ～ 120	0.5 ～ 4	1 ～ 10	2 ～ 8	0 ～ 23	4 ～ 9.9
-	1 Piece(s)	4 Day(s)	10	HPM1 Equivalent	Tapered	12	0 ～ 150	0.5 ～ 4	1 ～ 10	2 ～ 8	0 ～ 23	4 ～ 12.9
-	1 Piece(s)	4 Day(s)	10	HPM1 Equivalent	Tapered	13	0 ～ 150	0.5 ～ 4	1 ～ 10	2 ～ 8	0 ～ 23	4 ～ 12.9
-	1 Piece(s)	4 Day(s)	10	HPM1 Equivalent	Tapered	16	0 ～ 150	0.5 ～ 4	1 ～ 10	2 ～ 8	0 ～ 23	4 ～ 15.9
-	1 Piece(s)	4 Day(s)	10	HPM1 Equivalent	Tapered	20	0 ～ 200	0.5 ～ 4	1 ～ 10	2 ～ 8	0 ～ 23	4 ～ 19.9
