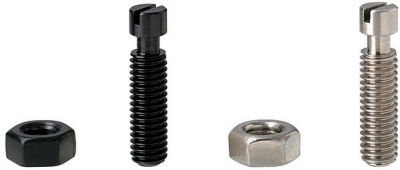

Posts for Tension Springs - Groove Type
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Body Material | Post Dia. D (Ø) | Full Length L (mm) | Mounting Screw Size | Post Shape | Surface Treatment | Thread Length ℓ (mm) | Hooking Hole Dia. d (mm) | Slot Width A (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 9.16 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 3 | 10 | M3 | Full Thread under Head | Black Oxide Coating | - | 1.8 | 1.0 | |
MYR 9.16 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 3 | 15 | M3 | Full Thread under Head | Black Oxide Coating | - | 1.8 | 1.0 | |
MYR 8.24 | 1 Piece(s) | Available | 1 Day(s) | 10 | [S45C] S45C Equivalent | 3 | 20 | M3 | Full Thread under Head | Black Oxide Coating | - | 1.8 | 1.0 | |
MYR 9.64 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 4 | 15 | M4 | Full Thread under Head | Black Oxide Coating | - | 2 | 1.2 | |
MYR 9.64 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 4 | 20 | M4 | Full Thread under Head | Black Oxide Coating | - | 2 | 1.2 | |
MYR 9.64 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 4 | 25 | M4 | Full Thread under Head | Black Oxide Coating | - | 2 | 1.2 | |
MYR 9.42 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 4 | 30 | M4 | Full Thread under Head | Black Oxide Coating | - | 2 | 1.2 | |
MYR 9.42 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 5 | 15 | M5 | Full Thread under Head | Black Oxide Coating | - | 3 | 2.0 | |
MYR 9.42 | 1 Piece(s) | Available | 1 Day(s) | 10 | [S45C] S45C Equivalent | 5 | 20 | M5 | Full Thread under Head | Black Oxide Coating | - | 3 | 2.0 | |
MYR 9.42 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 5 | 25 | M5 | Full Thread under Head | Black Oxide Coating | - | 3 | 2.0 | |
MYR 9.42 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 5 | 30 | M5 | Full Thread under Head | Black Oxide Coating | - | 3 | 2.0 | |
MYR 9.42 | 1 Piece(s) | Available | 1 Day(s) | 10 | [S45C] S45C Equivalent | 6 | 20 | M6 | Full Thread under Head | Black Oxide Coating | - | 3.6 | 3.0 | |
MYR 9.64 | 1 Piece(s) | Available | 1 Day(s) | - | [S45C] S45C Equivalent | 6 | 25 | M6 | Full Thread under Head | Black Oxide Coating | - | 3.6 | 3.0 | |
MYR 9.42 | 1 Piece(s) | Available | 2 Day(s) or more | - | [S45C] S45C Equivalent | [8] 8 | 25 | [M8] M8 | Full Thread under Head | Black Oxide Coating | - | 5 | 3.0 | |
MYR 12.03 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 3 | 10 | M3 | Full Thread under Head | Not Provided | - | 1.8 | 1.0 | |
MYR 12.03 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 3 | 15 | M3 | Full Thread under Head | Not Provided | - | 1.8 | 1.0 | |
MYR 12.03 | 1 Piece(s) | Available | 1 Day(s) | 10 | SUS303 | 3 | 20 | M3 | Full Thread under Head | Not Provided | - | 1.8 | 1.0 | |
MYR 12.03 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 3 | 25 | M3 | Full Thread under Head | Not Provided | - | 1.8 | 1.0 | |
MYR 12.03 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 4 | 15 | M4 | Full Thread under Head | Not Provided | - | 2 | 1.2 | |
MYR 12.03 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 4 | 20 | M4 | Full Thread under Head | Not Provided | - | 2 | 1.2 | |
MYR 12.03 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 4 | 25 | M4 | Full Thread under Head | Not Provided | - | 2 | 1.2 | |
MYR 11.77 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 5 | 20 | M5 | Full Thread under Head | Not Provided | - | 3 | 2.0 | |
MYR 11.77 | 1 Piece(s) | Available | 1 Day(s) | 10 | SUS303 | 5 | 25 | M5 | Full Thread under Head | Not Provided | - | 3 | 2.0 | |
MYR 11.77 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 5 | 30 | M5 | Full Thread under Head | Not Provided | - | 3 | 2.0 | |
MYR 11.77 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 6 | 20 | M6 | Full Thread under Head | Not Provided | - | 3.6 | 3.0 | |
MYR 11.77 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 6 | 25 | M6 | Full Thread under Head | Not Provided | - | 3.6 | 3.0 | |
MYR 11.77 | 1 Piece(s) | Available | 1 Day(s) | - | SUS303 | 6 | 35 | M6 | Full Thread under Head | Not Provided | - | 3.6 | 3.0 |
Loading...
Specification/Dimensions
-
Body Material
- S45C
- SUS303
- S45C
-
Post Dia. D(Ø)
- 3
- 4
- 5
- 6
- 8
-
Full Length L(mm)
-
Mounting Screw Size
- M3
- M4
- M5
- M6
- M8
-
Surface Treatment
- Black Oxide Coating
- Not Provided
-
Thread Length ℓ(mm)
- 10
- 16
- 20
-
Hooking Hole Dia. d(mm)
-
Slot Width A(mm)
-
type
- BSPO
- BSPOZ
- SBSPO
- SBSPOZ
-
Post Shape
- ℓ Dimension Selectable
- Full Thread under Head
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
