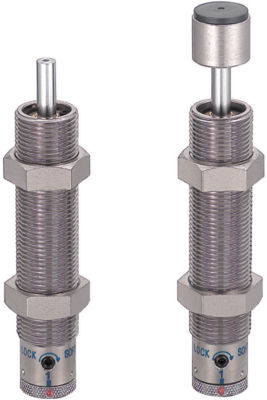

Shock Absorbers/Adjustable Dampening
Part Number
Configured Part Number is shown.
| No. | [ M ] Material(Main Body) | [ S ]Surface Treatment |
| 0806 | SUS303 | - |
| 1008, 1210, 1214, 1410, 1417, 1612, 1620, 3625 | SUM | Non-electrolytic Nickel Plating |
| 2016, 2530, 2725, 3035, 3650 | STKM12C | |
| Cap | Polyacetal 3035, 3625 and 3650 are Urethane Rubber. | - |
Specifications
| Part Number |
| MAC1008H |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Stroke (mm) | Mounting Screw Nominal (M) | Max. Absorbed Energy (J) | Orifice Type | Body Material | Max. Collision Velocity (m/s) | Min. Collision Velocity (m/s) | Overall Length (mm) | Equivalent Mass (kgf) | Max. Resisting Force Value (N) | Piston Rod Return Force (N) | Max. Operating Cycle (cycle/min) | Max. Absorbed Energy (per Minute) (J/min) | Cap | Thread Size M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 154.70 | 1 Piece(s) | Available | 1 Day(s) | - | 8 | M10 | 1.76 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 65.2 | 2.5 | 637 | 5.88 | 60 | 58.8 | With Cap | - | |
MYR 164.69 | 1 Piece(s) | Available | 1 Day(s) | - | 10 | M12 | 4.9 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 84 | 4 | 1470 | 9.8 | 60 | 98 | With Cap | - | |
MYR 199.62 | 1 Piece(s) | Available | 2 Day(s) or more | - | 14 | M12 | 5.4 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 92 | 30 | 1156 | 12.7 | 60 | 98 | With Cap | M12X1.0 | |
MYR 169.68 | 1 Piece(s) | Available | 1 Day(s) | 10 | 10 | M14 | 5.88 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 88 | 4.5 | 1813 | 9.8 | 60 | 147 | With Cap | - | |
MYR 219.58 | 1 Piece(s) | Available | 1 Day(s) | - | 17 | M14 | 14.7 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 115 | 50 | 2646 | 15.7 | 60 | 176 | With Cap | - | |
MYR 244.53 | 1 Piece(s) | Available | 1 Day(s) | - | 12 | M16 | 9.8 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 117 | 10 | 2646 | 14.7 | 60 | 235 | With Cap | - | |
MYR 274.48 | 1 Piece(s) | Available | 1 Day(s) | - | 20 | M16 | 17.6 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 143 | 60 | 2646 | 19.6 | 60 | 235 | With Cap | M16X1.5 | |
MYR 264.50 | 1 Piece(s) | Available | 2 Day(s) or more | - | 16 | M20 | 29.4 | Multi Orifice | [Steel] STKM12C | 3 | 0.7 | 127 | 120 | 3528 | 18.1 | 60 | 343 | With Cap | M20X1.5 | |
MYR 364.31 | 1 Piece(s) | Available | 2 Day(s) or more | - | 30 | M25 | 49 | Multi Orifice | [Steel] STKM12C | 3 | 0.7 | 173 | 150 | 3920 | 33.2 | 60 | 490 | With Cap | - | |
MYR 379.28 | 1 Piece(s) | Available | 2 Day(s) or more | - | 25 | M27 | 79.3 | Multi Orifice | [Steel] STKM12C | 3 | 0.7 | 156 | 300 | 6370 | 27.3 | 60 | 539 | With Cap | - | |
MYR 598.86 | 1 Piece(s) | Available | 2 Day(s) or more | - | 35 | M30 | 196 | Multi Orifice | [Steel] STKM12C | 3 | 0.7 | 206.5 | 700 | 16660 | 44.1 | 30 | 1176 | With Cap | M30X1.5 | |
MYR 623.81 | 1 Piece(s) | Available | 2 Day(s) or more | - | 25 | M36 | 200 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 155 | 700 | 25000 | 100 | 30 | 1500 | With Cap | M36X1.5 | |
MYR 623.81 | 1 Piece(s) | Available | 2 Day(s) or more | - | 25 | M36 | 200 | Multi Orifice | [Steel] SUM | 1 | 0.3 | 155 | 2000 | 25000 | 100 | 30 | 1500 | With Cap | - | |
MYR 144.72 | 1 Piece(s) | Available | 2 Day(s) or more | - | 8 | M10 | 1.76 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 58.9 | 2.5 | 637 | 5.88 | 60 | 58.8 | No Cap | - | |
MYR 154.70 | 1 Piece(s) | Available | 2 Day(s) or more | - | 10 | M12 | 4.9 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 76 | 4 | 1470 | 9.8 | 60 | 98 | No Cap | M12X1.0 | |
MYR 189.64 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | 14 | M12 | 5.4 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 84 | 30 | 1156 | 12.7 | 60 | 98 | No Cap | M12X1.0 | |
MYR 159.70 | 1 Piece(s) | Available | 2 Day(s) or more | - | 10 | M14 | 5.88 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 80 | 4.5 | 1813 | 9.8 | 60 | 147 | No Cap | - | |
MYR 209.60 | 1 Piece(s) | Available | 2 Day(s) or more | - | 14 ～ 17 | M12 / M14 | 5.4 ～ 14.7 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 105 | 30 ～ 50 | 1156 ～ 2646 | 12.7 ～ 15.7 | 60 | 98 ～ 176 | No Cap | - | |
MYR 229.56 | 1 Piece(s) | Available | 2 Day(s) or more | - | 12 | M16 | 9.8 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 102 | 10 | 2646 | 14.7 | 60 | 235 | No Cap | M16X1.5 | |
MYR 259.50 | 1 Piece(s) | Available | 2 Day(s) or more | - | 20 | M16 | 17.6 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 128 | 60 | 2646 | 19.6 | 60 | 235 | No Cap | - | |
MYR 249.52 | 1 Piece(s) | Available | 2 Day(s) or more | - | 16 | M20 | 29.4 | Multi Orifice | [Steel] STKM12C | 3 | 0.7 | 110 | 120 | 3528 | 18.1 | 60 | 343 | No Cap | - | |
MYR 339.35 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | 30 | M25 | 49 | Multi Orifice | [Steel] STKM12C | 3 | 0.7 | 155 | 150 | 3920 | 33.2 | 60 | 490 | No Cap | M25X1.5 | |
MYR 354.32 | 1 Piece(s) | Available | 2 Day(s) or more | - | 25 | M27 | 79.3 | Multi Orifice | [Steel] STKM12C | 3 | 0.7 | 136 | 300 | 6370 | 27.3 | 60 | 539 | No Cap | M27X1.5 | |
MYR 553.94 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | 35 | M30 | 196 | Multi Orifice | [Steel] STKM12C | 3 | 0.7 | 188 | 700 | 16660 | 44.1 | 30 | 1176 | No Cap | - | |
MYR 573.91 | 1 Piece(s) | Available | 1 Day(s) | - | 25 | M36 | 200 | Multi Orifice | [Steel] SUM | 3 | 0.7 | 150 | 700 | 25000 | 100 | 30 | 1500 | No Cap | - | |
MYR 573.91 | 1 Piece(s) | Available | 2 Day(s) or more | - | 25 | M36 | 200 | Multi Orifice | [Steel] SUM | 1 | 0.3 | 150 | 2000 | 25000 | 100 | 30 | 1500 | No Cap | - | |
MYR 638.78 | 1 Piece(s) | Available | 2 Day(s) or more | - | 50 | M36 | 392 | Multi Orifice | [Steel] STKM12C | 3 | 0.7 | 235 | 1400 | 23520 | 68.6 | 30 | 2352 | No Cap | - |
Loading...
Basic Information
| Main Body, Related Components | Main Body | Structure | Adjustable | Operating Environment | Standard |
|---|---|---|---|---|---|
| Operating Temperature Range(°C) | -5::70 |
Specification/Dimensions
-
Stroke(mm)
-
Max. Absorbed Energy(J)
-
Body Material
- SUS303
- Steel
-
Max. Collision Velocity(m/s)
-
Min. Collision Velocity(m/s)
-
Overall Length(mm)
-
Equivalent Mass(kgf)
-
Max. Resisting Force Value(N)
-
Piston Rod Return Force(N)
-
Max. Operating Cycle(cycle/min)
-
Max. Absorbed Energy (per Minute)(J/min)
-
Cap
- No Cap
- With Cap
-
Thread Size M
-
type
- MAC
- MAS
-
Orifice Type
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
