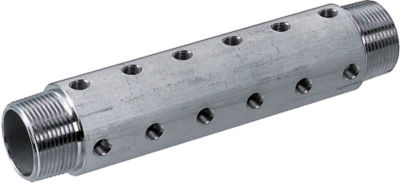

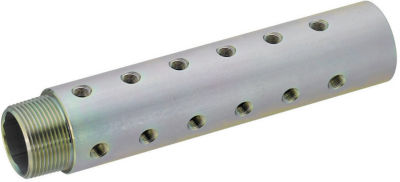

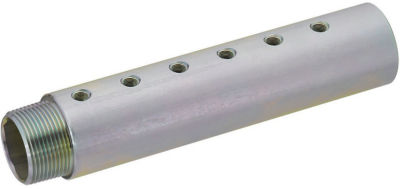

Pipe Manifolds - Both Ends Female Thread / One End Male Thread, One End Female Thread / Both Ends Male Thread
Part Number
Configured Part Number is shown.
| Hole Direction | Type | [ M ]Material | [ S ]Surface Treatment | ||
| Both Ends Female Thread | One End Male Thread One End Female Thread | Both Ends Male Thread | |||
| 1 Direction | PMF | PMMF | - | STPT370 | Trivalent Chromate |
| PMFS | PMMFS | - | SUS304TP | - | |
| 2 Directions 90° | PMFL | - | PMML | STPT370 | Trivalent Chromate |
| PMFSL | PMMFSL | PMMSL | SUS304TP | - | |
| 2 Directions 180° | PMFT | - | - | STPT370 | Trivalent Chromate |
| PMFST | - | - | SUS304TP | - | |
Specifications
| Part Number | - | H (Number of Holes) | - | P | - | S | - | Q |
| PMF1 PMML1 PMMF2 | - - - | 1 12 5 | - - | P30 P40 | - - - | S40 S35 S35 | - - - | Q50 Q35 Q40 |
| Part Number | No. of Side Female Thread Holes H | Pitch P 1mm Increment | S / Q 1mm Increment | d1 | d2 | D | d | |||
| Type | No. | Rc(PT) | R / Rc (PT) | |||||||
| (Both Ends Female Thread Type) 1 Direction PMF PMFS 2 Directions 90° PMFL PMFSL 2 Directions180° PMFT PMFST | (One End Male Thread - One End Female Thread) 1 Direction PMMF PMMFS 2 Directions 90° PMMFSL | (Both Ends Male Thread Type) 2 Directions 90° PMML PMMSL | 1 | *1~12 | 30~50 | 35~80 | 1/8 | 1 1/4 | 48.6 | 34.4 |
| 1S | 1/2 | 27.2 | 16.2 | |||||||
| 2 | 1/4 | 1 1/4 | 48.6 | 34.4 | ||||||
| 5 | M5 | 1/2 | 27.2 | 16.2 | ||||||
| *When H (the number of side tapped holes) is 1, Pitch P specification is not required. [ ! ]For 2 directions type (90° and 180°), the number of side tapped holes is H x 2. | ||||||||||
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| PMFL1S-4-P[30-50/1]-S[35-80/1]-Q[35-80/1] |
| PMFSL5-9-P[30-50/1]-S[35-80/1]-Q[35-80/1] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Pipe Opening Type | Number of Holes/Circuits H | Material (Main Body) | Multipoint Connection Type | Piping - Screw Nominal - 1st Fitting | Piping - Screw Nominal - 2nd Fitting | Multipoint Connection - Screw Nominal | P (mm) | Q (mm) | S (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 6 Day(s) or more | 10 | [Stationary] 2-Way 90° Type | 4 | [Steel] STPT370 | [Rc/R Thread] Female Threaded Type (Rc) | 1/2B | 1/2B | 1/8B | 30 ～ 50 | 35 ～ 80 | 35 ～ 80 | ||
- | 1 Piece(s) | 4 Day(s) or more | 10 | [Stationary] 2-Way 90° Type | 9 | [Stainless Steel] SUS304TP | Male Threaded | 1/2B | 1/2B | M5 | 30 ～ 50 | 35 ～ 80 | 35 ～ 80 |
Loading...
More Information
Example
Basic Information
| Type | Pipe Manifolds | Pipe End Shape - 1st Fitting | Female Threaded Type (Rc) | Pipe End Shape - 2nd Fitting | Female Threaded Type (Rc) |
|---|---|---|---|---|---|
| Pipe End Type | Both Ends Tappeed Type |
Specification/Dimensions
-
Pipe Opening Type
- Stationary
- Stationary
-
Number of Holes/Circuits H
-
Material (Main Body)
- Stainless Steel
- Steel
- Stainless Steel
-
Multipoint Connection Type
- Rc/R Thread
- Male Threaded
- Rc/R Thread
-
Piping - Screw Nominal - 2nd Fitting
-
Multipoint Connection - Screw Nominal
-
P(mm)
-
Q(mm)
-
S(mm)
-
type
- PMF
- PMFL
- PMFSL
-
Piping - Screw Nominal - 1st Fitting
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 4 Day(s) or Less
- 6 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
