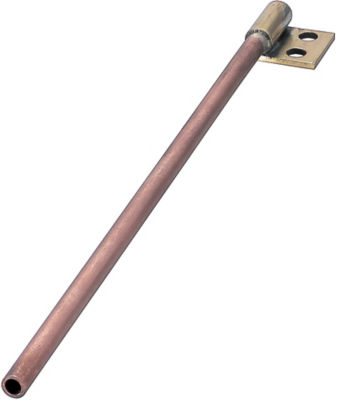

Air Blow Nozzles - Nozzles with Attachment Plate - 1-Hole Type, 2-Hole Type
Part Number
Configured Part Number is shown.
PLNZS3-[100-300/1]
| Type | No. of Holes | [ M ] Material | ||
| Hollow | Body | Plate | ||
| PLNZS | 1Hole | SUS304 | ||
| PLNZC | 2Holes | C1220T | C3604 | SUS304 |

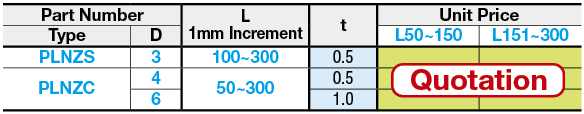

Specifications
| Part Number | - | H (No. of rows of hole) | - | P | - | N | - | S | - | Q |
| PNZC8 PNMS10 | - - | 10 1 | - | P10 | - - | N1.5 N1.0 | - - | S15 S20 | - - | Q15 Q20 |

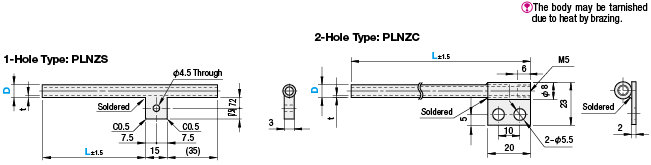

■Nozzles with Attachment Plate
| Part Number | - | L | - | N |
| DKNZFN8 DKNZP8 | - - | 300 200 | - | N1.0 |
| Part Number | - | L |
| PLNZC6 | - | 150 |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| PLNZS3-[100-300/1] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Length L (mm) |
|---|---|---|---|---|---|
- | 1 Piece(s) | 4 Day(s) or more | 100 ～ 300 |
Loading...
Basic Information
| Spray Shape | Point | Material | SUS304 | Angle Adjustment | Angle Adjustable / Straight |
|---|---|---|---|---|---|
| Type | Nozzles with Attachment Plate | Applicable Fluid | Compressed Air | Nozzle Outer Dia. D (or d)(Ø) | 3 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
