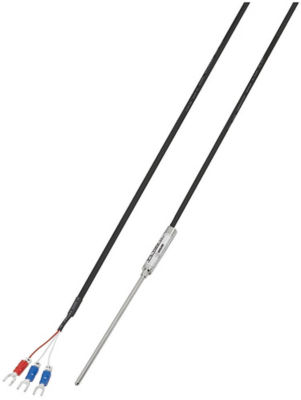

Temperature Sensors/Standard/K-Thermocouple
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| MSND1.0-100 |
| MSND1.0-300 |
| MSND1.6-30 |
| MSND1.6-50 |
| MSND1.6-100 |
| MSND2.3-30 |
| MSND2.3-50 |
| MSND3.2-30 |
| MSND3.2-50 |
| MSND3.2-100 |
| MSND3.2-150 |
| MSND4.8-100 |
| MSPT3.2-50 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Type of Temperature Sensor | Type of Thermocouple | Temperature Measurement Contact Point | Type of Device | Temperature Measuring Resistor Structure | Operating Temperature Range (°C) | Sheath, Protection Tube Diameter (Ø) | Sheath, Protecting Tube Length L (mm) | Lead Wire Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 124.67 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 1 | 100 | - | |
MYR 143.59 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 1 | 300 | - | |
MYR 124.67 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 1.6 | 30 | - | |
MYR 123.59 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 1.6 | 50 | - | |
MYR 124.63 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 1.6 | 100 | - | |
MYR 127.08 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 2.3 | 30 | - | |
MYR 125.94 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 2.3 | 50 | - | |
MYR 129.95 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 3.2 | 30 | - | |
MYR 129.95 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 3.2 | 50 | - | |
MYR 129.47 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 3.2 | 100 | - | |
MYR 140.53 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 3.2 | 150 | - | |
MYR 203.62 | 1 Piece(s) | Available | 1 Day(s) | Thermocouple | K Thermocouple | Isolated Neutral Type | - | - | 0～150 | 4.8 | 100 | - | |
MYR 206.65 | 1 Piece(s) | Available | 2 Day(s) or more | Temperature Measuring Resistor | - | - | Pt100Ω | Protection Tubes | 0～60 | 3.2 | 50 | Vinyl Coating |
Loading...
Basic Information
| Measurement Object | Temperature Sensor | Sheath, Protecting Tube Material | SUS316 | Operating Environment | Standard |
|---|---|---|---|---|---|
| Number of Elements | 1 | Sheath, Protecting Tube Shape | Straight | Attaching Portion Shape | Sleeve |
| Type of Terminal | Y-Shaped Crimp Terminal | Lead Wire Length (F)(m) | 2 |
Specification/Dimensions
-
Type of Temperature Sensor
- Thermocouple
- Temperature Measuring Resistor
-
Type of Thermocouple
- K Thermocouple
-
Temperature Measurement Contact Point
- Isolated Neutral Type
-
Type of Device
- Pt100Ω
-
Temperature Measuring Resistor Structure
- Protection Tubes
-
Sheath, Protection Tube Diameter(Ø)
-
Sheath, Protecting Tube Length L(mm)
-
Lead Wire Insulation Material
- Vinyl Coating
-
type
- MSND
- MSPT
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
