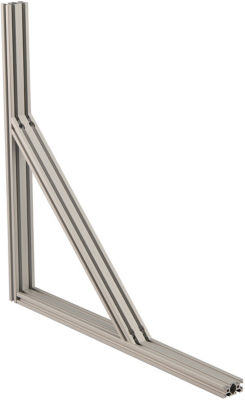

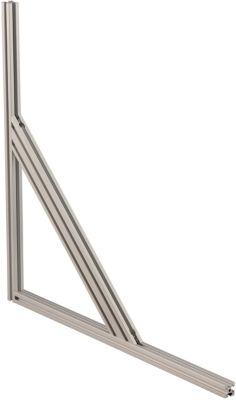

5 Series Aluminum Frames - Brackets for Reinforcement
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| HFBL5-2020-[100-500/1] |
| HFBL5-2040-[100-500/1] |
| HFBL5-4020-[100-500/1] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Extrusion Size | Number of Extrusion Connection Holes | Overall Length L (mm) |
|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 4 Day(s) or more | 10 | For 2020 | 2 | 100 ～ 500 | ||
- | 1 Piece(s) | 4 Day(s) or more | 10 | For 2040 | 4 | 100 ～ 500 | ||
- | 1 Piece(s) | 4 Day(s) or more | 10 | For 4020 | 2 | 100 ～ 500 |
Loading...
Basic Information
| Material | A6N01SS-T5 | Surface Treatment | Clear Anodize | Extrusion Series | HFS |
|---|---|---|---|---|---|
| Extrusion No. | 5 | Bracket Type | Brackets for Reinforcement | Applicable Screws | M5 Screws |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
