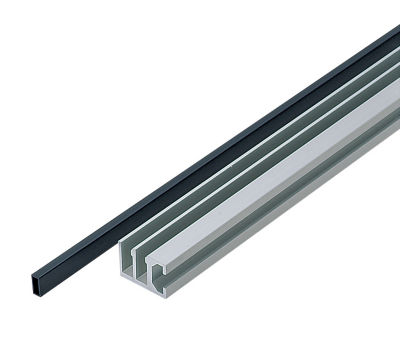

Aluminum Frames for Slide Doors / Slide Rails / Mounting Plates / Slide Spacers
- Volume Discount

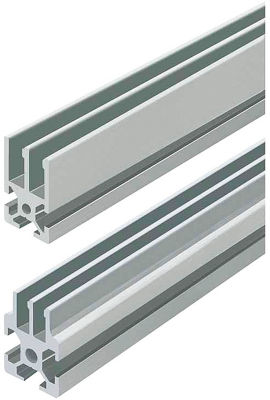

A Slide Door can be constructed with aluminum frame extrusions.
(i)Caution
- Items with L Length longer than 2,000.5mm will be treated as special delivery from 01/11/02019,
and additional cost RM119.30 will be added in each product for the delivery fee.
For items L Length shorter than 2,000mm will not have any price increase
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| HFHRF5-2020-[50-4000/0.5] |
| HFHRF6-3030-[50-4000/0.5] |
| HFHRT6-3030-[50-4000/0.5] |
| HRLFL-[50-1800/0.5] |
| HRLFL-[1801-3000/0.5] |
| HRLPL6 |
| HRLPL8 |
| HRLSP |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Type | Material | Surface Treatment | Extrusion No. | Extrusion Size | L Dimension (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 2 Day(s) or more | 10 | Aluminum Extrusion for Slide Doors | A6N01SS-T5 | Anodize | 5 | 20 x 20 (2-Row Rail) | 50 ～ 4000 | ||
- | 1 Piece(s) | 2 Day(s) or more | 10 | Aluminum Extrusion for Slide Doors | A6N01SS-T5 | Anodize | 6 | 30 x 30 (2-Row Rail) | 50 ～ 4000 | ||
- | 1 Piece(s) | 2 Day(s) or more | 10 | Aluminum Extrusion for Slide Doors | A6N01SS-T5 | Anodize | 6 | 30 x 30 (3-Row Rail) | 50 ～ 4000 | ||
- | 1 Piece(s) | 2 Day(s) or more | 10 | Slide Rails | A6N01SS-T5 | Anodize | 6,8,8-45 | - | 50 ～ 1800 | ||
- | 1 Piece(s) | 2 Day(s) or more | 10 | Slide Rails | A6N01SS-T5 | Anodize | 6,8,8-45 | - | 1801 ～ 3000 | ||
MYR 9.29 | 1 Piece(s) | Available | 1 Day(s) | - | Mounting Plate | SPCC | Bright Chromate | 6 | - | - | |
MYR 9.56 | 1 Piece(s) | Available | 2 Day(s) or more | - | Mounting Plate | SPCC | Bright Chromate | 8,8-45 | - | - | |
MYR 15.31 | 1 Piece(s) | Available | 1 Day(s) | 10 | Slide Spacers | Polyethylene (Black) | Not Provided | 6,8,8-45 | - | 2000 |
