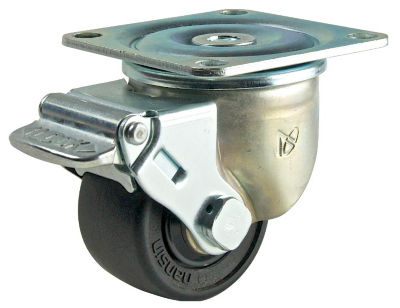

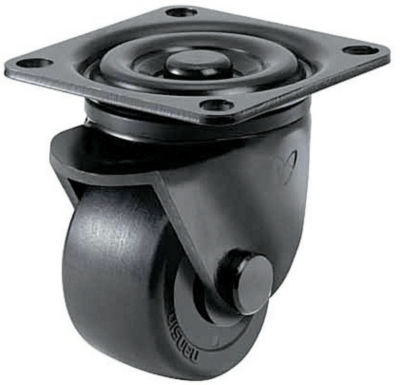

Casters/Heavy Load/Swivel Type
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| CSHK65-N |
| CSHK75-N |
| CSHN50-N |
| CSHN65-N |
| CSHN65A-N |
| CSHN75-N |
| CSHN75A-N |
| CSHNS50A-N |
| CSHNS65-N |
| CSHNS75-N |
| CSHNS75A-N |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Caster Type | Mounting Height H (mm) | Load Range (daN) | Stopper (Detail) | Allowable Load (daN) | Mounting Hole Pitch, Long Length Direction (mm) | Mounting Hole Pitch, Short Length Direction (mm) | Plate Length (mm) | Plate Width (mm) | Wheel Dia. D (Ø) | Wheel Width B (mm) | Bearing in Wheel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 74.15 | 1 Piece(s) | Available | 1 Day(s) | 10 | Fixed Type | 92 | 485.01~750.00 | Not Provided | 600 | 80 | 80 | 104 | 119 | 65 | 45 | Provided | |
MYR 82.39 | 1 Piece(s) | Available | 1 Day(s) | - | Fixed Type | 106 | 485.01~750.00 | Not Provided | 600 | 80 | 80 | 104 | 119 | 75 | 45 | Provided | |
MYR 82.24 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 79 | 320.01~485.00 | Not Provided | 350 | 71 | 71 | 90 | 90 | 50 | 38 | Provided | |
MYR 114.17 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 92 | 485.01~750.00 | Not Provided | 600 | 80 | 80 | 100 | 100 | 65 | 45 | Provided | |
MYR 57.67 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 92 | 220.01~320.00 | Not Provided | 300 | 71 | 71 | 90 | 90 | 65 | 38 | Provided | |
MYR 129.47 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 106 | 485.01~750.00 | Not Provided | 600 | 80 | 80 | 100 | 100 | 75 | 45 | Provided | |
MYR 66.22 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 106 | 320.01~485.00 | Not Provided | 400 | 71 | 71 | 90 | 90 | 75 | 38 | Provided | |
MYR 68.83 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 68 | 140.01~220.00 | With Rotation Stopper | 200 | 54 | 36 | 70 | 54 | 50 | 28 | Not Provided | |
MYR 146.86 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 92 | 485.01~750.00 | With Rotation Stopper | 600 | 80 | 80 | 100 | 100 | 65 | 45 | Provided | |
MYR 165.55 | 1 Piece(s) | Available | 1 Day(s) | 10 | Swivel Type | 106 | 485.01~750.00 | With Rotation Stopper | 600 | 80 | 80 | 100 | 100 | 75 | 45 | Provided | |
MYR 120.16 | 1 Piece(s) | Available | 1 Day(s) | - | Swivel Type | 106 | 320.01~485.00 | With Rotation Stopper | 400 | 71 | 71 | 90 | 90 | 75 | 38 | Provided |
Loading...
Basic Information
| Wheel Material | Reinforced Nylon | Wheel Characteristics | Not Provided | Fitting Material | Steel |
|---|---|---|---|---|---|
| Load Category | Heavy Load |
Specification/Dimensions
-
Caster Type
- Swivel Type
- Fixed Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 140.01~220.00
- 220.01~320.00
- 320.01~485.00
- 485.01~750.00
-
Stopper (Detail)
- Not Provided
- With Rotation Stopper
-
Allowable Load(daN)
-
Mounting Hole Pitch, Long Length Direction(mm)
-
Mounting Hole Pitch, Short Length Direction(mm)
-
Plate Length(mm)
-
Plate Width(mm)
-
Wheel Dia. D(Ø)
-
Wheel Width B(mm)
-
Bearing in Wheel
- Not Provided
- Provided
-
type
- CSHK
- CSHN
- CSHNS
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
