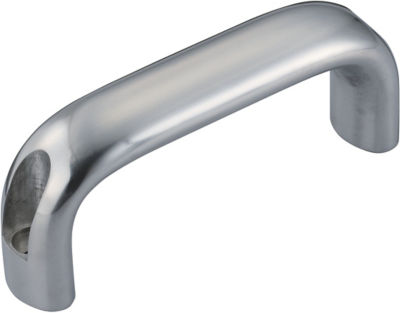

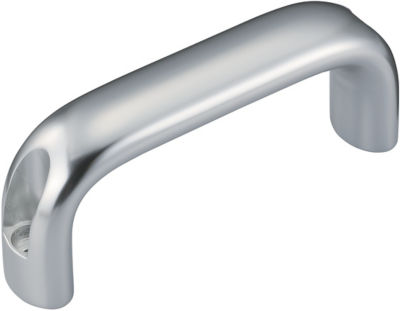

Handles, Oval, Standard Lengths
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| UADEL116 |
| UADEL132 |
| UADEL164 |
| UADL100 |
| UADL116 |
| UADL132 |
| UADL150 |
| UADLA116 |
| UADLA132 |
| UADLA164 |
| UADLA196 |
| UADLF26-[100-200/1]-[30-50/1] |
| UADLF26-[100-200/1]-F[30-50/1] |
| UADR100 |
| UADR116 |
| UADR132 |
| UADR150 |
| UADR196 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Mounting Pitch L (mm) | Material | Overall Height (mm) | Allowable Load (N) | Surface Treatment | F (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 87.10 | 1 Piece(s) | Available | 1 Day(s) | - | 116 | [Aluminum + Plastic] Aluminum Alloy | 53 | 1200 | [Anodize] Clear Anodize | - | |
MYR 92.98 | 1 Piece(s) | Available | 1 Day(s) | - | 132 | [Aluminum + Plastic] Aluminum Alloy | 55 | 800 | [Anodize] Clear Anodize | - | |
MYR 111.82 | 1 Piece(s) | Available | 2 Day(s) or more | - | 164 | [Aluminum + Plastic] Aluminum Alloy | 57 | 600 | [Anodize] Clear Anodize | - | |
MYR 68.27 | 1 Piece(s) | Available | 1 Day(s) | - | 100 | [Aluminum + Plastic] Aluminum Alloy | 47 | 1200 | Tumble Polish | - | |
MYR 76.47 | 1 Piece(s) | Available | 1 Day(s) | - | 116 | [Aluminum + Plastic] Aluminum Alloy | 53 | 1200 | Tumble Polish | - | |
MYR 81.30 | 1 Piece(s) | Available | 1 Day(s) | - | 132 | [Aluminum + Plastic] Aluminum Alloy | 55 | 800 | Tumble Polish | - | |
MYR 83.57 | 1 Piece(s) | Available | 1 Day(s) | - | 150 | [Aluminum + Plastic] Aluminum Alloy | 67 | 600 | Tumble Polish | - | |
MYR 76.51 | 1 Piece(s) | Available | 1 Day(s) | - | 116 | [Aluminum + Plastic] Aluminum Alloy | 53 | 1200 | Buff Polished | - | |
MYR 82.39 | 1 Piece(s) | Available | 2 Day(s) or more | - | 132 | [Aluminum + Plastic] Aluminum Alloy | 55 | 800 | Buff Polished | - | |
MYR 89.45 | 1 Piece(s) | Available | 2 Day(s) or more | - | 164 | [Aluminum + Plastic] Aluminum Alloy | 57 | 600 | Buff Polished | - | |
MYR 100.05 | 1 Piece(s) | Available | 2 Day(s) or more | - | 196 | [Aluminum + Plastic] Aluminum Alloy | 57 | 390 | Buff Polished | - | |
- | 1 Piece(s) | 6 Day(s) or more | 10 | 100 ～ 200 | [Aluminum + Plastic] Aluminum Alloy | - | - | Tumble Polish | 30 ～ 50 | ||
- | 1 Piece(s) | 6 Day(s) or more | 10 | 100 ～ 200 | [Aluminum + Plastic] Aluminum Alloy | - | - | Tumble Polish | 30 ～ 50 | ||
MYR 75.33 | 1 Piece(s) | Available | 1 Day(s) | - | 100 | [Aluminum + Plastic] Aluminum Alloy | 47 | 1200 | Electrostatic Paint | - | |
MYR 85.57 | 1 Piece(s) | Available | 1 Day(s) | - | 116 | [Aluminum + Plastic] Aluminum Alloy | 53 | 1200 | Electrostatic Paint | - | |
MYR 89.45 | 1 Piece(s) | Available | 1 Day(s) | - | 132 | [Aluminum + Plastic] Aluminum Alloy | 55 | 800 | Electrostatic Paint | - | |
MYR 91.81 | 1 Piece(s) | Available | 1 Day(s) | - | 150 | [Aluminum + Plastic] Aluminum Alloy | 67 | 600 | Electrostatic Paint | - | |
MYR 107.11 | 1 Piece(s) | Available | 2 Day(s) or more | - | 196 | [Aluminum + Plastic] Aluminum Alloy | 57 | 390 | Electrostatic Paint | - |
Loading...
Basic Information
| Main Body Type | Surfaced | Surfaced Type Category | U Shape | U Shape | Aluminum Pull Handles |
|---|---|---|---|---|---|
| Additional Function | Not Provided | Mounting Method | Outside Mount | Grip thickness(mm) | 26 |
