Locating Pins- Large Head

Price Down

MISUMI_Test

MiSUMi Economy

MISUMI_Test

Part Number

Configured Part Number is shown.

Drawing/Specifications
3D Preview
Part Numbers
Days to Ship
More Information
Catalog

Materials No.	[ M ]Material	[ S ]Surface Treatment	[ H ]Hardness	Type	D Tolerance / Shape Code
(1)	SKS3 Equivalent	-	Treated Hardness 60 ~ 63HRC	JPRB	B(Standard, m6) PB(Standard, p6) TB(Female Thread) NB(Male Thread)
(2)	SKS3 Equivalent	Hard Chrome Plating Plating Thickness 3µm or More	Treated Hardness 60 ~ 63HRC Plating Hardness 750HV~	GJPRB
(3)	SUS304 Equivalent	-	-	SJPRB
(4)	SUS440C Equivalent	-	Treated Hardness 50 ~ 55HRC	CJPRB

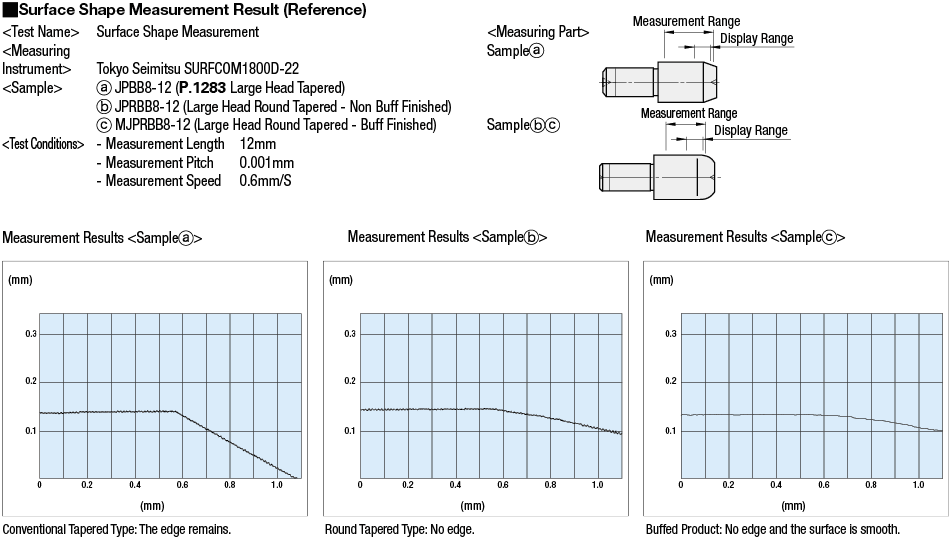

(5)	SKS3 Equivalent	Buffing	Treated Hardness 60 ~ 63HRC	MJPRB
(6)	SKS3 Equivalent	Hard Chrome Plating + Buffing Plating Thickness 3µm or More	Treated Hardness 60 ~ 63HRC Plating Hardness 750HV~	MGJPRB
(7)	SUS440C Equivalent	Buffing	Treated Hardness 50 ~ 55HRC	MCJPRB

Specifications

Part Number			-	P

Type	Shape	D
JPRB	B	10	-	12
MJPRB	TB	12	-	16

■Standard

Part Number			D Dimension Tolerance		P Selection													L	B	C	E	ℓ
Type	Shape Code	D	m6	p6	P Selection													L	B	C	E	ℓ
JPRB GJPRB SJPRB CJPRB (Buffed Product) MJPRB MGJPRB MCJPRB [ ! ]Applicable when D≥5.	B(m6) PB(p6)	2	+0.008 +0.002	+0.012 +0.006	3	4												4	3	0.5	3	0
		3	+0.008 +0.002	+0.012 +0.006		4	5	6										5	5	0.5	3	1
		4	+0.012 +0.004	+0.020 +0.012			5	6										5	6	1	4
		5						6	8									10	6		4
		6							8	10								10	8		5
		8	+0.015 +0.006	+0.024 +0.015						10	12	13						15	8	1.5
		10	+0.015 +0.006	+0.024 +0.015							12	13	15						10	2
		12	+0.018 +0.007	+0.029 +0.018								13	15	16							6
		13											15	16				22			6	2
		16													20	25		22		3	7
		20	+0.021 +0.008	+0.035 +0.022												25	30	30	15	3	7

■Female Thread

Part Number			D Dimension Tolerance g6	P Selection									L	B	E	M (Coarse)	ℓ
Type	Shape Code	D	D Dimension Tolerance g6	P Selection									L	B	E	M (Coarse)	ℓ
JPRB GJPRB SJPRB CJPRB (Buffed Product) MJPRB MGJPRB MCJPRB	TB	6	-0.004 -0.012	8	10								10	8	5	M3	5
		6T	-0.004 -0.012	8	10								10			M2.6	4
		8	-0.005 -0.014		10	12	13						15			M5	8
		8T			10	12	13									M4	6
		10				12	13	15						10		M5	8
		12	-0.006 -0.017				13	15	16						6	M5	8
		13						15	16				22		6	M8	12
		16								20	25		22		7
		20	-0.007 -0.020								25	30	30	15	7

[ ! ]Pins of D dimention with Ts have one size smaller thread diameter and larger wall thickness. (Actual D dimension is the number without "T".)
[ ! ]Note the strength of under-head part.>>P.1281 [ ! ]Please confirm pilot hole depth on >>P.1281.Holes may go through.

■Male Thread

Part Number			D Dimension Tolerance g6	P Selection												L	B	E	M (Coarse)
Type	Shape Code	D	D Dimension Tolerance g6	P Selection												L	B	E	M (Coarse)
JPRB GJPRB SJPRB CJPRB (Buffed Product) MJPRB MGJPRB MCJPRB [ ! ]Applicable when D≥5.	NB	3	-0.002 -0.008	4	5	6										5	5	3	M3
		4	-0.004 -0.012		5	6										5	6	4	M4
		5				6	8									10	6	4	M5
		6					8	10								10	8	5	M6
		8	-0.005 -0.014					10	12	13						15	8		M8
		10	-0.005 -0.014						12	13	15						10		M10
		12	-0.006 -0.017							13	15	16						6	M12
		16	-0.006 -0.017										20	25		22		7	M16
		20	-0.007 -0.020											25	30	30	15	7	M20

Alterations

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
MCJPRBB20-[25,30]
MCJPRBNB12-[13,15,16]
MCJPRBNB16-[20,25]
MCJPRBTB6T-[8,10]

Standard Unit Price	Minimum order quantity	Days to Ship	Surface Treatment	Material	Steel Type	Type of Stainless Steel	Locating Side Outer Dia. P (Ø) (mm)	Mounting Side Outer Dia. D (Ø)	Mounting Side Tolerance	Mounting Section Length L (mm)	Locating Section Length B (mm)	Taper Length E (mm)
-	1 Piece(s)	6 Day(s) or more	Buffed	Steel / [Stainless Steel] SUS440C Equivalent	-	SUS440C Equivalent	25 ～ 30	20	m6	30	15	7
-	1 Piece(s)	8 Day(s) or more	Buffed	Steel / [Stainless Steel] SUS440C Equivalent	-	SUS440C Equivalent	13 ～ 16	12	g6	15	10	6
-	1 Piece(s)	8 Day(s) or more	Buffed	Steel / [Stainless Steel] SUS440C Equivalent	-	SUS440C Equivalent	20 ～ 25	16	g6	22	10	7
-	1 Piece(s)	8 Day(s) or more	Buffed	Steel / [Stainless Steel] SUS440C Equivalent	-	SUS440C Equivalent	8 ～ 10	6T	g6	10	8	5

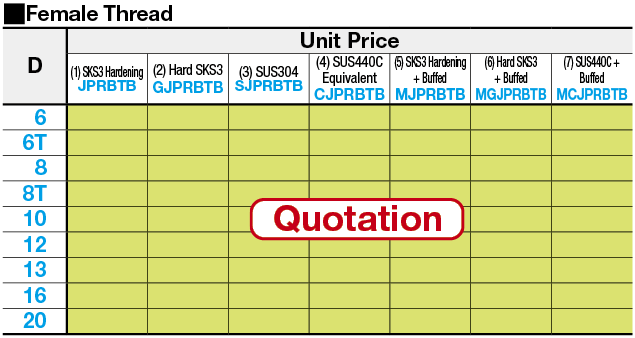

Price list

■Volume Discount Rate P.87

Qty.	1~19	20~34	35~49	50~99
Rate	Unit Price	5%	10%	18%

Lead Time

More Information

Product TOP

Basic Information

Basic Shape	Large Head	Insertion Guide Tip Shape	Round	Insertion Guide Tip Type	Tapered
Insertion Guide Specifications	Not Provided	Mounting Side Shape	Threaded	Heat Treatment	Directly Quenching
Locating Side O.D. Tolerance	0/-0.01	Dimension Configurable Type	P Configurable

Configure

4 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Material
- Steel
  - SKS3 Equivalent
- Stainless Steel
  - SUS440C Equivalent
Clear
Steel Type
- SKS3 Equivalent
Clear
Type of Stainless Steel
- SUS440C Equivalent
Clear
Locating Side Outer Dia. P (Ø)(mm)
6

8

10

13

15

16

20

25

30
Clear
Mounting Side Outer Dia. D(Ø)
5

6

6T

12

13

16

20
Clear
Mounting Side Tolerance
p6

m6

g6
Clear
Mounting Section Length L(mm)
10

15

22

30
Clear
Locating Section Length B(mm)
6

8

10

15
Clear
Taper Length E(mm)
4

5

6

7
Clear
type
- MCJPRBB
- MCJPRBNB
- MCJPRBTB
- MGJPRBB
- MGJPRBNB
- MGJPRBPB
Clear
Surface Treatment
- Hard Chrome Plating
  - Hard Chrome Plating (Plating Thickness 3µm or more)
  - Hard Chrome Plating
- Buffed
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

6 Day(s) or Less

8 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
