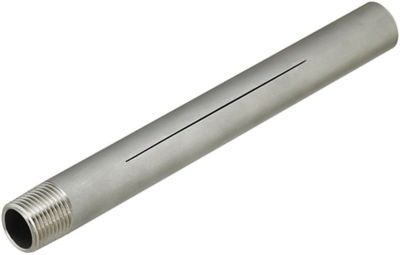

Slit Steel Pipe Nozzles
Part Number
Configured Part Number is shown.
| Type | [ M ] Material | [ S ] Surface Treatment | [ A ]Accessory | |
| Male Thread - Female Thread | Both Ends Female Thread | |||
| SLTR | SLTF | SGP | Zinc Plating | Tapered Screw Plugs (SCM435, Blackening) |
| SLTRS | SLTFS | SUS304TP | - | Tapered Screw Plugs (SUSXM7) |
Specifications
| Part Number | - | L | - | A | - | T |
| SLTR8A | - | 300 | - | A200 | - | T1.0 |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| SLTF25A-[110-700/1]-A[50-500/1]-T[0.5-2/0.5] |
| SLTR25A-[110-700/1]-A[50-500/1]-T[0.5-2/0.5] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Screw Nominal Dia. 2 | Length L (mm) | A (mm) | T (mm) |
|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 4 Day(s) or more | 10 | 25A(Rc1) | 110 ～ 700 | 50 ～ 500 | 0.5 ～ 2 | ||
- | 1 Piece(s) | 4 Day(s) or more | - | 25A(R1) | 110 ～ 700 | 50 ～ 500 | 0.5 ～ 2 |
Loading...
More Information
Suitable when the distance to the object is short.
■Precaution for Use: Actual spray width and colliding force vary. And the slit width may increase in width depending on air pressure. When more even blows are required, use Air Nozzles (P.1335, 1336) and Steel Pipes for Air Nozzles.
Example
Basic Information
| Spray Shape | Straight | Air Source | Compressor | Material | SGP |
|---|---|---|---|---|---|
| Mounting Angle | Flat | Blow Type | Standard | Type | Slit Steel Pipe Nozzles |
| Applicable Fluid | Compressed Air | Nominal Screw Dia. 1 | 25A(Rc1) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
