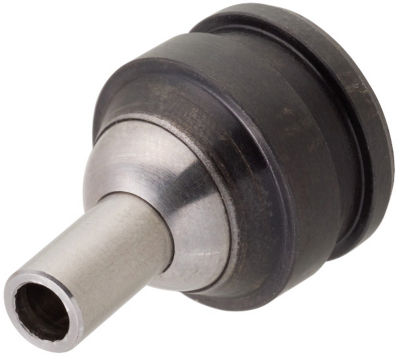

Point Nozzles - Compact
- Volume Discount
Compact Nozzles adjustable to any angle.
Part Number
Configured Part Number is shown.
PNZCS1-3-10
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Basic Information
| Spray Shape | Point | Angle Adjustment | Angle Adjustable | Type | Point Nozzles |
|---|---|---|---|---|---|
| Applicable Fluid | Compressed Air | Hole Diameter(mm) | 3 | Nominal Screw Dia. 1 | 1(R1/8) |
| Length L(mm) | 10 | Attaching Type | Screw-In |
Please check the type/dimensions/specifications of the part PNZCS1-3-10 in the Point Nozzles - Compact series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
