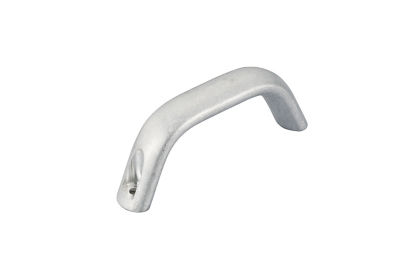

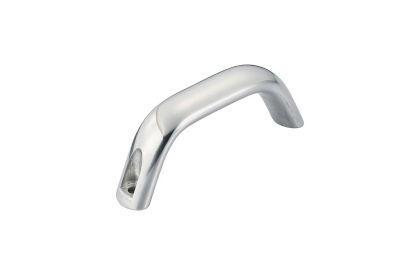

Aluminum Pull Handles
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Mounting Pitch L (mm) | Overall Height (mm) | Surface Treatment | Grip thickness (mm) | Set of Applicable Screws and Nuts |
|---|---|---|---|---|---|---|---|---|---|---|
MYR 72.73 | 1 Piece(s) | Available | 3 Day(s) or more | - | 90 | 41 | Electrostatic Paint | 19 | Single Item | |
MYR 78.86 | 1 Piece(s) | Available | 2 Day(s) or more | - | 90 | 41 | Electrostatic Paint | 19 | SST (Set of Applicable Stainless Steel Screws and Nuts) | |
MYR 74.34 | 1 Piece(s) | Available | 1 Day(s) | 10 | 93.5 | 44 | Electrostatic Paint | 20 | Single Item | |
MYR 80.04 | 1 Piece(s) | Available | 2 Day(s) or more | - | 93.5 | 44 | Electrostatic Paint | 20 | SET (Set of Applicable Screws and Nuts) | |
MYR 80.04 | 1 Piece(s) | Available | 2 Day(s) or more | - | 93.5 | 44 | Electrostatic Paint | 20 | SST (Set of Applicable Stainless Steel Screws and Nuts) | |
MYR 82.36 | 1 Piece(s) | Available | 1 Day(s) | 10 | 130 | 57 | Electrostatic Paint | 26 | Single Item | |
MYR 88.28 | 1 Piece(s) | Available | 2 Day(s) or more | - | 130 | 57 | Electrostatic Paint | 26 | SET (Set of Applicable Screws and Nuts) | |
MYR 88.28 | 1 Piece(s) | Available | 2 Day(s) or more | - | 130 | 57 | Electrostatic Paint | 26 | SST (Set of Applicable Stainless Steel Screws and Nuts) | |
MYR 63.56 | 1 Piece(s) | Available | 1 Day(s) | 10 | 90 | 41 | Buff Polished | 19 | Single Item | |
MYR 69.44 | 1 Piece(s) | Available | 2 Day(s) or more | - | 90 | 41 | Buff Polished | 19 | SET (Set of Applicable Screws and Nuts) | |
MYR 69.44 | 1 Piece(s) | Available | 2 Day(s) or more | - | 90 | 41 | Buff Polished | 19 | SST (Set of Applicable Stainless Steel Screws and Nuts) | |
MYR 68.27 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | 93.5 | 44 | Buff Polished | 20 | Single Item | |
MYR 74.15 | 1 Piece(s) | Available | 2 Day(s) or more | - | 93.5 | 44 | Buff Polished | 20 | SET (Set of Applicable Screws and Nuts) | |
MYR 75.33 | 1 Piece(s) | Available | 2 Day(s) or more | - | 93.5 | 44 | Buff Polished | 20 | SST (Set of Applicable Stainless Steel Screws and Nuts) | |
MYR 76.51 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | 130 | 57 | Buff Polished | 26 | Single Item | |
MYR 83.57 | 1 Piece(s) | Available | 2 Day(s) or more | - | 130 | 57 | Buff Polished | 26 | SET (Set of Applicable Screws and Nuts) | |
MYR 83.57 | 1 Piece(s) | Available | 2 Day(s) or more | - | 130 | 57 | Buff Polished | 26 | SST (Set of Applicable Stainless Steel Screws and Nuts) | |
MYR 51.79 | 1 Piece(s) | Available | 1 Day(s) | 10 | 90 | 41 | Tumble Polish | 19 | Single Item | |
MYR 57.67 | 1 Piece(s) | Available | 2 Day(s) or more | - | 90 | 41 | Tumble Polish | 19 | SET (Set of Applicable Screws and Nuts) | |
MYR 57.67 | 1 Piece(s) | Available | 2 Day(s) or more | - | 90 | 41 | Tumble Polish | 19 | SST (Set of Applicable Stainless Steel Screws and Nuts) | |
MYR 57.67 | 1 Piece(s) | Available | 1 Day(s) | 10 | 93.5 | 44 | Tumble Polish | 20 | Single Item | |
MYR 63.56 | 1 Piece(s) | Available | 2 Day(s) or more | - | 93.5 | 44 | Tumble Polish | 20 | SET (Set of Applicable Screws and Nuts) | |
MYR 64.74 | 1 Piece(s) | Available | 2 Day(s) or more | - | 93.5 | 44 | Tumble Polish | 20 | SST (Set of Applicable Stainless Steel Screws and Nuts) | |
MYR 65.91 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | 130 | 57 | Tumble Polish | 26 | Single Item | |
MYR 72.97 | 1 Piece(s) | Available | 2 Day(s) or more | - | 130 | 57 | Tumble Polish | 26 | SET (Set of Applicable Screws and Nuts) | |
MYR 72.97 | 1 Piece(s) | Available | 2 Day(s) or more | - | 130 | 57 | Tumble Polish | 26 | SST (Set of Applicable Stainless Steel Screws and Nuts) |
Loading...
Basic Information
| Main Body Type | Surfaced | Surfaced Type Category | U Shape | U Shape | Aluminum Pull Handles |
|---|---|---|---|---|---|
| Material | Aluminum Alloy | Mounting Method | Outside Mount |
Specification/Dimensions
-
Mounting Pitch L(mm)
-
Overall Height(mm)
-
Surface Treatment
- Tumble Polish
- Buff Polished
- Electrostatic Paint
-
Grip thickness(mm)
-
Set of Applicable Screws and Nuts
- SET (Set of Applicable Screws and Nuts)
- SST (Set of Applicable Stainless Steel Screws and Nuts)
- Single Item
-
type
- HHDF
- HHDFA
- HHDFL
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
- 3 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
