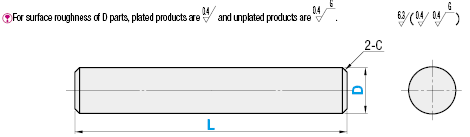

Linear Shafts-Straight Type One End Threaded with Undercut

Part Number

Configured Part Number is shown.

Note that, for some of the types shown here, order might be unable to be received by the MISUMI Indonesia offices.

AAA
Straight:Related Image

Type			[ M ]Material	[ H ]Hardness	[ S ]Surface Treatment
D Tol. g6	D Tol. h5	D Tol. f8	[ M ]Material	[ H ]Hardness	[ S ]Surface Treatment
SFJ	SFU	-	SUJ2	Effective Hardened Depth of Induction Hardening >> P.142 SUJ2: 58HRC~ SUS440C Equivalent: 56HRC~	-
ZSFJ	-	-	SUJ2
SSFJ	SSFU	-	SUS440C Equivalent
PSFJ	PSFU	-	SUJ2		Hard Chrome Plating - Plating Hardness: HV750 ~, Plating Thickness: 5µ or More
PSSFJ	PSSFU	-	SUS440C Equivalent
RSFJ	-	-	SUJ2		Low Temp. Black Chrome Plating
-	-	PSFG	S45C Equivalent	-	Hard Chrome Plating - Plating Hardness: HV750 ~, Plating Thickness: 10µ or More
-	-	PSSFG	SUS304	-

[ ! ]Features of Low Temp. Black Chrome Plating p1_156
[ ! ]L Dimension Tolerance, Circularity, Straightness, Perpendicularity, Concentricity and Changes in Hardness >> P.141

Specifications

Part Number	-	L
SFJ20	-	75

Part Number				L 1mm Increments	D Tol.			C
Type			D	L 1mm Increments	g6	h5	f8	C
(D Tol. g6) SFJ SSFJ PSFJ PSSFJ	(D Tol. h5) SFU SSFU PSFU PSSFU	(D Tol. f8) PSFG PSSFG	3	10~ 400	-0.002 -0.008	0 -0.004	-	0.2 or Less
			4	10~ 400	-0.004 -0.012	0 -0.005	-	0.2 or Less
			5	10~ 400	-0.004 -0.012	0 -0.005	-	0.2 or Less
			6	15~ 800	-0.004 -0.012	0 -0.005	-0.010 -0.028	0.5 or Less
			8	15~1000	-0.005 -0.014	0 -0.006	-0.013 -0.035	0.5 or Less
			10	15~1000	-0.005 -0.014	0 -0.006	-0.013 -0.035	0.5 or Less
			12	15~1000	-0.006 -0.017	0 -0.008	-0.016 -0.043	0.5 or Less
			13	15~1200	-0.006 -0.017	0 -0.008	-0.016 -0.043	0.5 or Less
			15	15~1200	-0.006 -0.017	0 -0.008	-0.016 -0.043	0.5 or Less
			16	30~1200	-0.006 -0.017	0 -0.008	-0.016 -0.043	0.5 or Less
			18	30~1200	-0.006 -0.017	0 -0.008	-0.016 -0.043	0.5 or Less
			20	30~1200	-0.007 -0.020	0 -0.009	-0.020 -0.053	1.0 or Less
			25	35~1200	-0.007 -0.020	0 -0.009	-0.020 -0.053	1.0 or Less
			30	35~1500	-0.007 -0.020	0 -0.009	-0.020 -0.053	1.0 or Less
			35	35~1500	-0.009 -0.025	0 -0.011	-0.025 -0.064	1.0 or Less
			40	50~1500	-0.009 -0.025	0 -0.011	-0.025 -0.064	1.0 or Less
			50	65~1500	-0.009 -0.025	0 -0.011	-0.025 -0.064	1.0 or Less

Part Number		L 1mm Increments	D Tol. g6	C
Type	D	L 1mm Increments	D Tol. g6	C
(D Tol. g6) Low Temp. Black Chrome Plating RSFJ	3	10~400	-0.002 -0.008	0.2 or Less
	4	10~400	-0.004 -0.012	0.2 or Less
	5	10~400	-0.004 -0.012	0.2 or Less
	6	20~500	-0.004 -0.012	0.5 or Less
	8	20~500	-0.005 -0.014	0.5 or Less
	10	20~500	-0.005 -0.014	0.5 or Less
	12	20~500	-0.006 -0.017	0.5 or Less
	13	25~500	-0.006 -0.017	0.5 or Less
	15	25~500	-0.006 -0.017	0.5 or Less
	16	30~500	-0.006 -0.017	0.5 or Less
	18	30~500	-0.006 -0.017	0.5 or Less
	20	30~500	-0.007 -0.020	1.0 or Less
	25	35~500	-0.007 -0.020	1.0 or Less
	30	35~500	-0.007 -0.020	1.0 or Less

Part Number		L Fixed	D Tol. g6	C
Type	D
ZSFJ	10	100	-0.005 -0.014	0.5 or Less
	12	100	-0.006 -0.017	0.5 or Less
		300		0.5 or Less
	20	200	-0.007 -0.020	1.0 or Less
		300		1.0 or Less

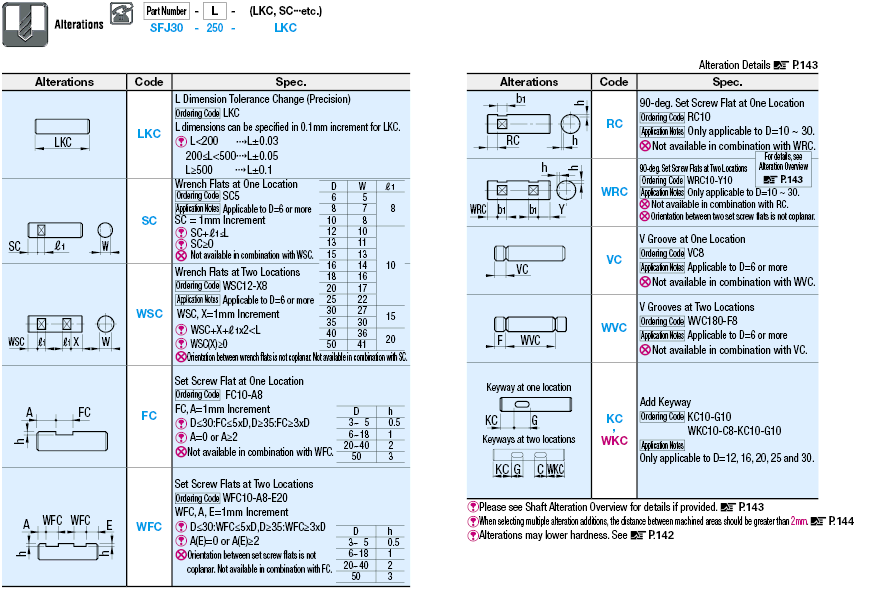

Alterations

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
PSFG6-[20-600/1]
PSFG8-[20-800/1]
PSFG10-[20-800/1]
PSFG12-[20-1000/1]
PSFG13-[25-1000/1]
PSFG15-[25-1000/1]
PSFG16-[30-1200/1]
PSFG20-[30-1200/1]
PSFG25-[35-1200/1]
PSFG30-[35-1500/1]
PSFG50-[65-1500/1]
PSFJ3-[10-400/1]
PSFJ4-[10-400/1]
PSFJ5-[10-400/1]
PSFJ6-[20-600/1]
PSFJ8-[20-800/1]
PSFJ10-[20-800/1]
PSFJ12-[20-1000/1]
PSFJ13-[25-1000/1]
PSFJ15-[25-1000/1]
PSFJ16-[30-1200/1]
PSFJ20-[30-1200/1]
PSFJ25-[35-1200/1]
PSFJ30-[35-1500/1]
PSFU6-[20-600/1]
PSFU8-[20-800/1]
PSSFJ3-[10-400/1]
PSSFJ4-[10-400/1]
PSSFJ5-[10-400/1]
PSSFJ6-[20-600/1]
PSSFJ8-[20-800/1]
PSSFJ10-[20-800/1]
PSSFJ12-[20-1000/1]
PSSFJ13-[25-1000/1]
PSSFJ15-[25-1000/1]
PSSFJ16-[30-1200/1]
PSSFJ20-[30-1200/1]
PSSFJ25-[35-1200/1]
PSSFJ30-[35-1500/1]
RSFJ5-[10-400/1]
RSFJ8-[15-500/1]
RSFJ10-[15-500/1]
RSFJ12-[15-500/1]
RSFJ30-[35-500/1]
SFJ3-[10-400/1]
SFJ4-[10-400/1]
SFJ5-[10-400/1]
SFJ6-[15-800/1]
SFJ8-[20-800/1]
SFJ10-[20-800/1]
SFJ12-[20-1000/1]
SFJ13-[25-1000/1]
SFJ15-[25-1000/1]
SFJ16-[30-1200/1]
SFJ20-[30-1200/1]
SFJ25-[35-1200/1]
SFJ30-[35-1500/1]
SFJ50-[65-1500/1]
SFU10-[20-800/1]
SFU12-[20-1000/1]

Standard Unit Price	Minimum order quantity	Days to Ship	RoHS	TEST	Heat Treatment	Surface Treatment	TEST (Ø)	Length L (mm)	Shaft Fit Tolerance	Hardness
-	1 Piece(s)	3 Day(s)	10	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	6	20 ～ 600	f8	No Induction Hardening
-	1 Piece(s)	3 Day(s)	-	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	8	20 ～ 800	f8	No Induction Hardening
-	1 Piece(s)	3 Day(s)	-	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	10	20 ～ 800	f8	No Induction Hardening
-	1 Piece(s)	3 Day(s)	-	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	12	20 ～ 1000	f8	No Induction Hardening
-	1 Piece(s)	3 Day(s)	-	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	13	25 ～ 1000	f8	No Induction Hardening
-	1 Piece(s)	3 Day(s)	-	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	15	25 ～ 1000	f8	No Induction Hardening
-	1 Piece(s)	3 Day(s)	-	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	16	30 ～ 1200	f8	No Induction Hardening
-	1 Piece(s)	3 Day(s)	-	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	20	30 ～ 1200	f8	No Induction Hardening
-	1 Piece(s)	3 Day(s)	-	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	25	35 ～ 1200	f8	No Induction Hardening
-	1 Piece(s)	3 Day(s)	-	00030 / [Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	30	35 ～ 1500	f8	No Induction Hardening
-	1 Piece(s)	4 Day(s) or more	-	[Steel_] S45C Equivalent	Not Provided	Hard Chrome Plating	50	65 ～ 1500	f8	No Induction Hardening
-	1 Piece(s)	5 Day(s)	10	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	3	10 ～ 400	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	5 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	4	10 ～ 400	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	5 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	5	10 ～ 400	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	6	20 ～ 600	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	8	20 ～ 800	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	10	20 ～ 800	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	12	20 ～ 1000	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	13	25 ～ 1000	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	15	25 ～ 1000	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	16	30 ～ 1200	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	20	30 ～ 1200	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	25	35 ～ 1200	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	30	35 ～ 1500	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s) or more	10	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	6	20 ～ 600	h5	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s) or more	10	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Hard Chrome Plating	8	20 ～ 800	h5	Induction Hardened (58HRC~)
-	1 Piece(s)	5 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	3	10 ～ 400	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	5 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	4	10 ～ 400	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	5 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	5	10 ～ 400	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	6	20 ～ 600	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	8	20 ～ 800	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	10	20 ～ 800	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	12	20 ～ 1000	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	13	25 ～ 1000	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	15	25 ～ 1000	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	16	30 ～ 1200	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	20	30 ～ 1200	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	25	35 ～ 1200	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	3 Day(s)	-	[Stainless Steel_] SUS440C Equivalent / [Stainless Steel_] SUS440C or 13Cr stainless	Induction Hardened	Hard Chrome Plating	30	35 ～ 1500	g6	Induction Hardened (56HRC~)
-	1 Piece(s)	9 Day(s) or more	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Low Temperature Black Chrome Plating	5	10 ～ 400	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	9 Day(s) or more	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Low Temperature Black Chrome Plating	8	15 ～ 500	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	9 Day(s) or more	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Low Temperature Black Chrome Plating	10	15 ～ 500	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	9 Day(s) or more	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Low Temperature Black Chrome Plating	12	15 ～ 500	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	9 Day(s) or more	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Low Temperature Black Chrome Plating	30	35 ～ 500	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	5 Day(s)	10	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	3	10 ～ 400	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	5 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	4	10 ～ 400	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	5 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	5	10 ～ 400	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	6	15 ～ 800	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	8	20 ～ 800	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s) or more	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	10	20 ～ 800	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	12	20 ～ 1000	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	13	25 ～ 1000	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	15	25 ～ 1000	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	-	-	-	-	30 ～ 1200	-	-
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	20	30 ～ 1200	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	25	35 ～ 1200	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s)	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	30	35 ～ 1500	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	4 Day(s) or more	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	50	65 ～ 1500	g6	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s) or more	-	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	10	20 ～ 800	h5	Induction Hardened (58HRC~)
-	1 Piece(s)	3 Day(s) or more	10	[Steel_] SUJ2 / [Steel_] SUJ2 Equivalent	Induction Hardened	Not Provided	12	20 ～ 1000	h5	Induction Hardened (58HRC~)

Product TOP

Basic Information

Basic Shape	Solid	End Shape (Left)	No Machining	End Shape (Right)	No Machining
Shaft End Perpendicularity	Perpendicularity (0.2)

Configure

74 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

TEST
- Steel_
  - SUJ2
  - SUJ2 Equivalent
  - S45C Equivalent
- Stainless Steel_
  - SUS440C Equivalent
  - SUS440C or 13Cr stainless
- 00030
Clear
Heat Treatment
- Not Provided
- Induction Hardened
Clear
Surface Treatment
- Not Provided
- Hard Chrome Plating
- Low Temperature Black Chrome Plating
Clear
TEST(Ø)
3

4

5

6

8

10

12

13

15

16

20

25

30

50
Clear
Length L(mm)
[10-1500/1mm Unit(s)]
Clear
Shaft Fit Tolerance
f8

g6

h5
Clear
Hardness
- Induction Hardened (56HRC~)
- Induction Hardened (58HRC~)
- No Induction Hardening
Clear
type
- PSFG
- PSFJ
- PSFU
- PSSFJ
- RSFJ
- SFJ
- SFU
- SSFJ
- SSFU
Clear
CAD
- 2D
- 3D
Clear
