Flange Integrated Oil Free Bushings - Copper Alloy, Pilot Flanged
Part Number
Configured Part Number is shown.
d8: General Use (High-Load)
e7: General Use (Light Load)
f8: High Precision Use
g6: High Precision Use (Intermittent Operation)
[ M ] Material: High Tensile Brass Alloy
Solid Lubricant Embedded
2 ~ 4 pcs.
Specifications
| Part Number | - | L |
| MPIZ12 | - | 30 |
| Part Number | L | Dh7 | Da | L1 | H | T | t | d1 | d2 | P.C.D. | F | A | Accessories: Hex Socket Low Head Cap Screw | ||||||||||||
| Type | dF7 | ||||||||||||||||||||||||
| Pilot Flanged MPIZ MPITZ | 8 | +0.028 +0.013 | 20 | 25 | 12 | 0 - 0.018 | 11.5 | 5 | 27 | 4 | 2.2 | 3.5 | 6 | 19 | - | 19 | M3-10x2 | ||||||||
| 10 | +0.028 +0.013 | 25 | 30 | 14 | 0 - 0.018 | 13.5 | 6 | 29 | 4 | 2.2 | 3.5 | 6 | 21 | - | 21 | M3-10x2 | |||||||||
| 12 | +0.034 +0.016 | 25 | 30 | 18 | 0 - 0.018 | 17.5 | 6 | 36 | 5 | 3 | 4.5 | 7.5 | 26 | - | 26 | M4-12x2 | |||||||||
| 13 | +0.034 +0.016 | 25 | 30 | 35 | 19 | 0 - 0.021 | 18.5 | 6 | 37 | 5 | 3 | 4.5 | 7.5 | 27 | - | 27 | M4-12x2 | ||||||||
| 16 | +0.034 +0.016 | 25 | 30 | 35 | 40 | 22 | 0 - 0.021 | 21.5 | 6 | 40 | 5 | 3 | 4.5 | 7.5 | 30 | 18 | 24 | M4-12x4 | |||||||
| 20 | +0.041 +0.020 | 30 | 35 | 40 | 50 | 28 | 0 - 0.021 | 27.5 | 8 | 49 | 6 | 3.7 | 5.5 | 9 | 38 | 22 | 31 | M5-16x4 | |||||||
| 25 | +0.041 +0.020 | 30 | 35 | 40 | 50 | 60 | 33 | 0 - 0.025 | 32.5 | 8 | 54 | 6 | 3.7 | 5.5 | 9 | 43 | 25 | 35 | M5-16x4 | ||||||
| 30 | +0.041 +0.020 | 35 | 40 | 50 | 60 | 70 | 38 | 0 - 0.025 | 37.5 | 10 | 63 | 8 | 4.2 | 6.6 | 11 | 50 | 30 | 40 | M6-20x4 | ||||||
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| MPITZ12-25 |
| MPITZ13-25 |
| MPITZ16-25 |
| MPITZ16-30 |
| MPITZ20-35 |
| MPITZ20-40 |
| MPITZ30-50 |
| MPIZ12-30 |
| MPIZ16-30 |
| MPIZ16-35 |
| MPIZ16-40 |
| MPIZ30-50 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Inner Dia. d (Ø) | Outer Dia. D (Ø) | Overall Length L (mm) | Mounting Type |
|---|---|---|---|---|---|---|---|---|
MYR 76.51 | 1 Piece(s) | Available | 2 Day(s) or more | 12 | 18 | 25 | Compact Flanged | |
MYR 83.57 | 1 Piece(s) | Available | 2 Day(s) or more | 13 | 19 | 25 | Compact Flanged | |
MYR 83.57 | 1 Piece(s) | Available | 2 Day(s) or more | 16 | 22 | 25 | Compact Flanged | |
MYR 89.45 | 1 Piece(s) | Available | 2 Day(s) or more | 16 | 22 | 30 | Compact Flanged | |
MYR 104.75 | 1 Piece(s) | Available | 2 Day(s) or more | 20 | 28 | 35 | Compact Flanged | |
MYR 109.46 | 1 Piece(s) | Available | 2 Day(s) or more | 20 | 28 | 40 | Compact Flanged | |
MYR 158.90 | 1 Piece(s) | Available | 2 Day(s) or more | 30 | 38 | 50 | Compact Flanged | |
MYR 64.74 | 1 Piece(s) | Available | 2 Day(s) or more | 12 | 18 | 30 | Round Flanged | |
MYR 70.62 | 1 Piece(s) | Available | 2 Day(s) or more | 16 | 22 | 30 | Round Flanged | |
MYR 72.97 | 1 Piece(s) | Available | 2 Day(s) or more | 16 | 22 | 35 | Round Flanged | |
MYR 84.74 | 1 Piece(s) | Available | 1 Day(s) | 16 | 22 | 40 | Round Flanged | |
MYR 125.94 | 1 Piece(s) | Available | 2 Day(s) or more | 30 | 38 | 50 | Round Flanged |
Loading...
More Information
■Features: Flange Integrated Oil Free Bushings can reduce the time of assembling.Oil Free Bushings do not project from bushing mounting position.
Saves space on the opposite side.
Basic Information
| Type | Flange Integrated | Metal Type | High-Tensile Brass Alloy | Max. Allowable PV Value Range(N/mm2•m/s) | 1.1~2.0 |
|---|---|---|---|---|---|
| Max. Allowable PV Value(N/mm2•m/s) | 1.65 | Maximum Allowable Load(N/mm2) | 29 | Maximum Allowable Velocity(m/s) | 0.5 |
| Operating Temperature Range(°C) | -40::150 | Operating Temperature Range (Unlubricated) Min | -40 | Operating Temperature Range (Unlubricated) Max | 150 |
| Operating Temperature Range (Regular) Min | -40 | Operating Temperature Range (Regular) Max | 200 |
Specification/Dimensions
-
Inner Dia. d(Ø)
-
Outer Dia. D(Ø)
-
Overall Length L(mm)
-
Mounting Type
- Compact Flanged
- Round Flanged
-
type
- MPITZ
- MPIZ
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- Oil Free Bushings - Bronze, Flanged
- Oil Free Bushings - Thrust Type
- Oil Free Bushings - Center Flanged Housing Units (Built-In Copper Alloy Bushings
- Oil Free Bushing Housing Units - Standard Flanged
- Oil Free Bushings - C-VALUE Products - Copper Alloy, Flanged, Standard
- Oil Free Bushings - Copper Alloy, Flanged, Thin Wall
- Oiles Cermet M Flange Bushing (54F)
- DieSlide Bushing with Flange SAF series
Complementary Products
-
Shaft Supports T-Shaped Slit (Machined) - Standard / Wide
MISUMI_Test Days to Ship : 3 Day(s) or more
Customers Who Viewed This Item Also Viewed
-
Flange Integrated Oil Free Bushings - Copper Alloy, Standard Flanged, I.D. F7
MISUMI_Test
Standard Price : MYR 29.43-
Days to Ship : 1 Day(s) or more
-

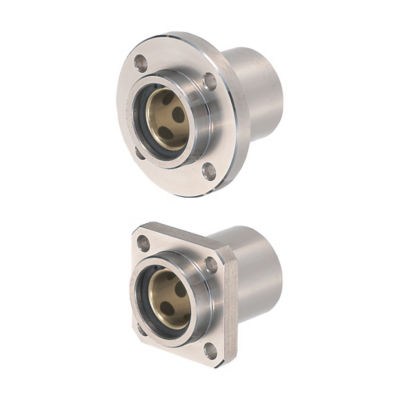

Oil Free Bushing Housing Units - Pilot Flanged - Standard - Built-In Copper Alloy Bushings, Single / Double
MISUMI_Test
Standard Price : MYR 111.82-
Days to Ship : 2 Day(s) or more
-
Flange Integrated Oil Free Bushings - Center FlangedMISUMI_Test
Standard Price : MYR 81.21-
Days to Ship : 2 Day(s) or more
-

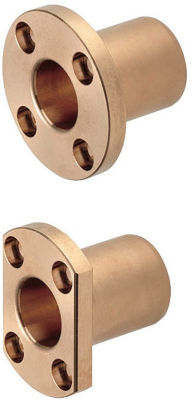

Oil Free Bushings - Bronze, Standard Flanged Housing Units - Compact Flange
