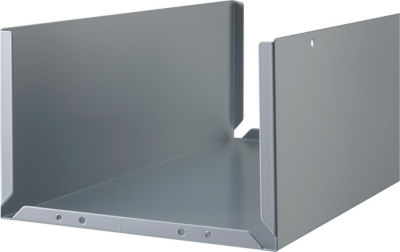

Free-Size Aluminum U-Shaped High-Strength ACHK
3-way free size. U-Shaped for Excellent Workability
- Aluminum
- Free Size
- Hole Machining
- Web Box

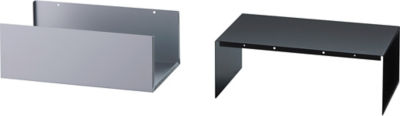

Size can be requested by the customer in 3 directions. U shape enables superior workability.
● The iron top cover material has excellent strength specifications.
● Ships within 5 days with or without drilling.
● Minimal screw-fastening, enabling superior workability.
*The aluminum material has changed from February 2018 shipments onward.
A1050P-H24→A5052
| Plate Thickness | Top Cover | 1.2 mm |
| Bottom Cover | 1.0 mm | |
| Material | Top Cover | SPCC |
| Bottom Cover | A5052 | |
| Accessory | Rubber Feet with Adhesive x 4, t4.0 | Natural Rubber, Black |
| Size | Range | Unit |
| W (Width) | 100 to 500 mm | 1 mm |
| H (Height) | 50 to 200 mm | 1 mm |
| D (Depth) | 150 to 500 mm | 1 mm |
Part Number
Configured Part Number is shown.
ACHK-K-[100-500/1]-[50-200/1]-[150-500/1]
Specification Table
The working days for this product do not include weekends or public holidays.
Check our WOS (Web Order System) for shipping date details.
| D | W H | ¥ Normal Unit Price | |||
| 100 to 200 | 201 to 300 | 301 to 400 | 401 to 500 | ||
| 150 to 200 | 50 to 100 | - | - | - | - |
| 101 to 150 | - | - | - | - | |
| 151 to 200 | - | - | - | - | |
| 201 to 250 | 50 to 100 | - | - | - | - |
| 101 to 150 | - | - | - | - | |
| 151 to 200 | - | - | - | - | |
| 251 to 300 | 50 to 100 | - | - | - | - |
| 101 to 150 | - | - | - | - | |
| 151 to 200 | - | - | - | - | |
| 301 to 350 | 50 to 100 | - | - | - | - |
| 101 to 150 | - | - | - | - | |
| 151 to 200 | - | - | - | - | |
| 351 to 400 | 50 to 100 | - | - | - | - |
| 101 to 150 | - | - | - | - | |
| 151 to 200 | - | - | - | - | |
| 401 to 450 | 50 to 100 | - | - | - | - |
| 101 to 150 | - | - | - | - | |
| 151 to 200 | - | - | - | - | |
| 451 to 500 | 50 to 100 | - | - | - | - |
| 101 to 150 | - | - | - | - | |
| 151 to 200 | - | - | - | - | |
Basic Specifications
Basic Information
| Material | Aluminum | Protection function (environmentally resistant) | None | Intermediate plate | Without Board |
|---|---|---|---|---|---|
| Installation | Indoor | Paint | Powder Paint | Features | (Material) Top Cover: Iron |

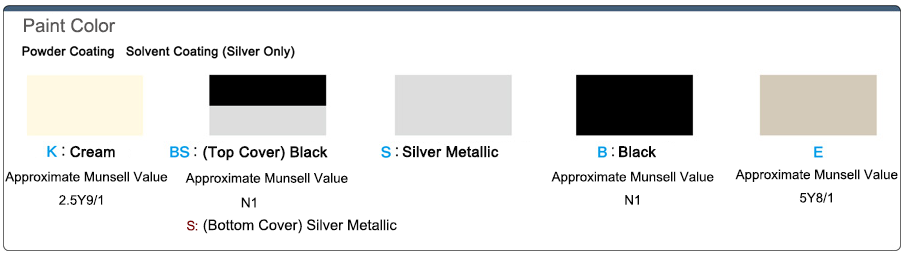

| Color | Cream (Munsell 2.5Y9/1) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
