SSCL3R, UL-Listed (CL3) Support

Click this image to zoom it.

Move the mouse over the image to zoom

MISUMI_Test

300 V UL-CL3 Standard Mobile Signals Cable

VW-1
ULAWM
ULLISTED
Oil-Resistant
Strand Wire
Thinned Wire Conductor
300 V

● Soft oil-resistant sheaths are used.

· This product is compatible with "UL Traceability Program / Processed Wire."
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* All unit prices are per meter.
Unit Price Calculation Method
[Formula: Last digits of model number (m) x unit price per meter above]
* Color and softness may vary slightly due to manufacturer changes.

Electrical Appliance and Material Safety Law certificate has not been obtained.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

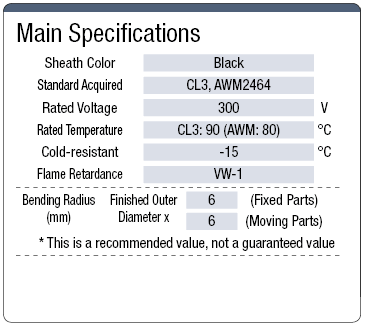

SSCL3R, UL-Listed (CL3) Support:Related Image

Model Number	AWG Size	Number of Cores	Total Length ^*3 or Specified Length
Model Number	AWG Size	Number of Cores	Total Length ^*3 or Specified Length
SSCL3R	24	2	1 ~ 100 (Specify 1 m Increment) / 500 / 1000
		3
		4
		6
		8
		10
		12
		16
		20
	22	2
		3
		4
		6
		8
		10
		12
		20
	20	2
		4
		6
		8
		10

More Information

Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
*1 Stock products are indicated with T or A in the price column at right.
*2 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
*3 Please note that when ordering 1000 m and 500 m, the order will be delivered as 100 m windings (we cannot accept orders for single cables).

Specifications

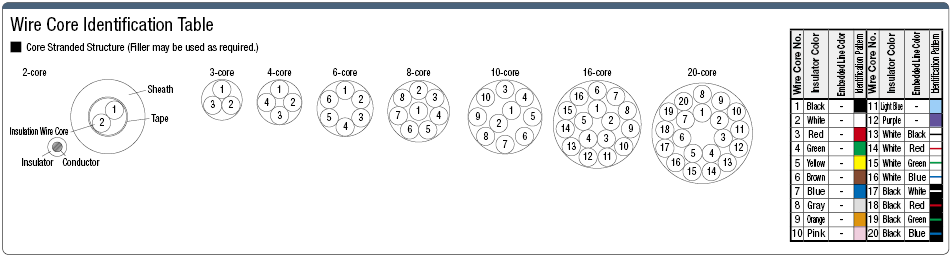

Model Number	AWG Size	Number of Cores	Estimated Section Area (mm²) ^*1	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*4 Outer Diameter (mm)	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter Approx. (mm)	Sheath		Specification	Sample Provided
Model Number	AWG Size	Number of Cores	Estimated Section Area (mm²) ^*1	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*4 Outer Diameter (mm)	Approximate Mass kg/km	Allowable Current A (30 °C) ^*2	Conductor Resistance Ω / km (20 °C)	Insulation Properties MΩkm (20 °C)	Withstand Voltage V / Min	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*3	Thickness (mm)	Material ^*3	Wire Core Outer Diameter Approx. (mm)	Thickness (mm)	Material ^*3	Specification	Sample Provided
SSCL3R	24	2	0.2	Core / Layer Stranding	2	4.1	21	4.0	90.7 or less	30.5 or more	AC.2000	44/0.08	0.61	Tin	0.26	PVC	1.14	0.85	PVC	CL3 AWM2464	◎
		3			3	4.3	32	3.4													◎
		4			4	4.6	35	3.0													◎
		6			6	5.2	42	2.5													◎
		8			8	5.7	51	2.2										0.9			◎
		10			10	6.5	60	2.0													◎
		12			12	6.6	70	1.7													◎
		16			16	7.3	89	1.5													◎
		20			20	7.9	110	1.5													◎
	22	2	0.3		2	4.4	25	5.5	61.4 or less	30.5 or more	AC.2000	65/0.08	0.74		0.28		1.3	0.85			◎
		3			3	4.6	38	4.7													◎
		4			4	4.9	43	4.2													◎
		6			6	5.8	53	3.5										0.9			◎
		8			8	6.2	65	3.1													◎
		10			10	7.1	85	2.8													◎
		12			12	7.3	95	2.4													◎
		20			20	9.0	146	2.1										1.00			◎
	20	2	0.5		2	5.1	35	8.3	34.1 or less	30.5 or more	AC.2000	117/0.08	1.00		0.33		1.67	0.85			◎
		4			4	5.9	60	6.4										0.9			◎
		6			6	6.9	75	5.4													◎
		8			8	7.4	99	4.7													◎
		10			10	8.8	119	4.4										1.00			◎

*1 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*2 The value of allowable current is to be used only as a reference value and is not guaranteed.
*3 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] ‌PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other
*4 For the outer diameter size of cables, wire sheath (coat), etc., refer to "Finished Outer Diameter" in the table above.

Current Reduction Factor

Ambient Temperature (°C)	30	40	50	60	70
Current Reduction Factor	1.00	0.90	0.78	0.64	0.45

Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value 4.0 x 0.9 = 3.6 (A) when the ambient temperature for 2-core AWG25 is 40 °C

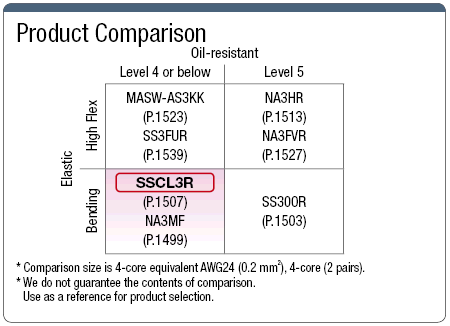

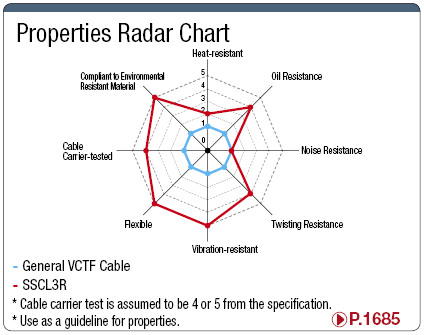

SSCL3R, UL-Listed (CL3) Support:Related Image

: 30; 45; 60

Part Number
SSCL3R-20-2-55
SSCL3R-20-4-46
SSCL3R-20-4-64
SSCL3R-20-6-14
SSCL3R-20-6-18
SSCL3R-20-6-47
SSCL3R-20-6-60
SSCL3R-20-8-97
SSCL3R-20-8-98
SSCL3R-20-10-39
SSCL3R-20-10-91
SSCL3R-22-2-14
SSCL3R-22-3-32
SSCL3R-22-4-61
SSCL3R-22-6-86
SSCL3R-22-8-1
SSCL3R-22-8-20
SSCL3R-22-8-25
SSCL3R-22-8-40
SSCL3R-22-10-95
SSCL3R-22-20-4
SSCL3R-22-20-27
SSCL3R-22-20-55
SSCL3R-22-20-58
SSCL3R-22-20-67
SSCL3R-24-2-99
SSCL3R-24-3-29
SSCL3R-24-6-34
SSCL3R-24-8-45
SSCL3R-24-12-33
SSCL3R-24-16-23
SSCL3R-24-16-28
SSCL3R-24-20-33
SSCL3R-24-20-37

Standard Unit Price	Minimum order quantity	Days to Ship	RoHS	Overall Length (m)	Conductor Cross Section (mm²)	AWG size (AWG)	Number Of Cores (Core)	Finished outer diameter (mm)
MYR 584.92	1 Piece(s)	2 Day(s) or more	10	55	0.5	20	2	5.1
MYR 821.51	1 Piece(s)	2 Day(s) or more	-	46	0.5	20	4	5.9
MYR 969.41	1 Piece(s)	2 Day(s) or more	-	64	0.5	20	4	5.9
MYR 482.92	1 Piece(s)	2 Day(s) or more	-	14	0.5	20	6	6.9
MYR 620.90	1 Piece(s)	2 Day(s) or more	-	18	0.5	20	6	6.9
MYR 1,487.14	1 Piece(s)	2 Day(s) or more	-	47	0.5	20	6	6.9
MYR 1,461.31	1 Piece(s)	2 Day(s) or more	-	60	0.5	20	6	6.9
MYR 3,004.97	1 Piece(s)	2 Day(s) or more	-	97	0.5	20	8	7.4
MYR 3,035.94	1 Piece(s)	2 Day(s) or more	-	98	0.5	20	8	7.4
MYR 1,961.31	1 Piece(s)	2 Day(s) or more	-	39	0.5	20	10	8.8
MYR 3,523.86	1 Piece(s)	2 Day(s) or more	-	91	0.5	20	10	8.8
MYR 164.78	1 Piece(s)	2 Day(s) or more	-	14	0.3	22	2	4.4
MYR 409.24	1 Piece(s)	2 Day(s) or more	-	32	0.3	22	3	4.6
MYR 739.72	1 Piece(s)	2 Day(s) or more	-	61	0.3	22	4	4.9
MYR 1,551.19	1 Piece(s)	2 Day(s) or more	-	86	0.3	22	6	5.8
MYR 53.04	1 Piece(s)	2 Day(s) or more	-	1	0.3	22	8	6.2
MYR 623.65	1 Piece(s)	2 Day(s) or more	-	20	0.3	22	8	6.2
MYR 779.57	1 Piece(s)	2 Day(s) or more	-	25	0.3	22	8	6.2
MYR 1,247.31	1 Piece(s)	2 Day(s) or more	-	40	0.3	22	8	6.2
MYR 3,093.06	1 Piece(s)	2 Day(s) or more	-	95	0.3	22	10	7.1
MYR 355.65	1 Piece(s)	2 Day(s) or more	-	4	0.3	22	20	9
MYR 1,920.49	1 Piece(s)	2 Day(s) or more	-	27	0.3	22	20	9
MYR 3,116.25	1 Piece(s)	2 Day(s) or more	-	55	0.3	22	20	9
MYR 3,286.22	1 Piece(s)	2 Day(s) or more	-	58	0.3	22	20	9
MYR 3,796.15	1 Piece(s)	2 Day(s) or more	-	67	0.3	22	20	9
MYR 739.03	1 Piece(s)	2 Day(s) or more	-	99	0.2	24	2	4.1
MYR 512.24	1 Piece(s)	2 Day(s) or more	-	29	0.2	24	3	4.3
MYR 686.02	1 Piece(s)	2 Day(s) or more	-	34	0.2	24	6	5.2
MYR 1,192.28	1 Piece(s)	2 Day(s) or more	-	45	0.2	24	8	5.7
MYR 1,373.72	1 Piece(s)	2 Day(s) or more	-	33	0.2	24	12	6.6
MYR 1,018.38	1 Piece(s)	2 Day(s) or more	-	23	0.2	24	16	7.3
MYR 1,239.77	1 Piece(s)	2 Day(s) or more	-	28	0.2	24	16	7.3
MYR 1,807.53	1 Piece(s)	2 Day(s) or more	-	33	0.2	24	20	7.9
MYR 2,026.62	1 Piece(s)	2 Day(s) or more	-	37	0.2	24	20	7.9

Basic Information

Rated Voltage	300V	Shield	None	Properties	Oil resistance
Representative Standard	UL	Sheath (outer coating) color	Black	Sheath (outer coating) material	PVC
Insulation body materials	PVC	Power supply/signal	For signals	Other properties	Elastic, Vibration-resistant, Pliable, Flexible

Configure

34 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Overall Length(m)
1

4

14

18

20

23

25

27

28

29

32

33

34

37

39

40

45

46

47

55

58

60

61

64

67

86

91

95

97

98

99
Clear
Conductor Cross Section(mm²)
0.2

0.3

0.5
Clear
AWG size(AWG)
20

22

24
Clear
Number Of Cores(Core)
2

3

4

6

8

10

12

16

20
Clear
Finished outer diameter(mm)
4.1

4.3

4.4

4.6

4.9

5.1

5.2

5.7

5.8

5.9

6.2

6.6

6.9

7.1

7.3

7.4

7.9

8.8

9
Clear

Days to Ship

All

2 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
