SS300SB UL with Shield

MISUMI_Test

UL-AWM Standard Shield Signals Cable

VW-1
ULAWM
For Signal
Oil-Resistant
Strand Wire
Single Shield
Twisted Pair
Small Diameter
300 V

● Soft oil-resistant sheaths are used.
● The thin and pliable specification makes wiring work easier.

· This product is compatible with "UL Traceability Program / Processed Wire."
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* Color and softness may vary slightly due to manufacturer changes.

Electrical Appliance and Material Safety Law certificate has not been obtained.

* Please note that we are unable to deliver the product as a single strand of cable for orders of the following lengths:
For lengths specified as 1000 m, product will be delivered as 10 windings of 100 m in length.
For lengths specified as 500 m, product will be delivered as 5 windings of 100 m in length.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

* Before ordering, confirm that the following symbols in the order (if any) are correct: "( = single-byte bracket"; "1 = One"; "I = i"; "0 = zero"; "O = oh".


			Sales Unit
Model Number	AWG Size	Number of Pairs ^*4 1P = 2 Cores	Total Length or Specified Length
Model Number	AWG Size	Number of Pairs ^*4 1P = 2 Cores	Total Length or Specified Length
SS300SB	28	1P	1 ~ 100 (Specify 1 m Increment) / 500 / 1000
		2P
		3P
		4P
		5P
		6P
		8P
		10P
		13P
		20P
	24	1P
		2P
		3P
		4P
		5P
		6P
		8P
		10P
		13P
		20P
	22	1P
		2P
		3P
		4P
		5P
		6P
		10P
	20	1P
		2P
		3P
		4P
		5P

More Information

Be sure to read the following precautions when you place an order.
*Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
*For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
*1 Stock products are indicated with T or A in the price column at right.
*2 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
*3 Please note that when ordering 1000 m and 500 m, the order will be delivered as 100 m windings (we cannot accept orders for single cables).
*4 Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering.

Specifications

Model Number	AWG Size	Number of Pairs 1P = 2 Cores	Estimated Section Area (mm²) ^*1	Twisted Structure (See Figure)	Number of Wire Cores	Finished Outer Diameter (mm)	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter Approx. (mm)	Sheath		Specification	Sample Provided
Model Number	AWG Size	Number of Pairs 1P = 2 Cores	Estimated Section Area (mm²) ^*1	Twisted Structure (See Figure)	Number of Wire Cores	Finished Outer Diameter (mm)	Approximate Mass kg/km	Allowable Current A (30 °C) ^*2	Conductor Resistance Ω / km (20 °C)	Insulation Properties MΩkm (20 °C)	Withstand Voltage V / Min	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*3	Thickness (mm)	Material ^*3	Wire Core Outer Diameter Approx. (mm)	Thickness (mm)	Material ^*3	Specification	Sample Provided
SS300SB	28	1P	0.08	Twisted Pair	2	4.2	26	2.37	224	10	2000	7/0.127	0.38	Tin	0.26	PVC	0.9	0.85	PVC	ULAWM2464	◎
		2P			4	5.5	42	1.83													◎
		3P			6	5.7	47	1.55													◎
		4P			8	6	53	1.36													◎
		5P			10	6.5	60	1.26													◎
		6P			12	6.9	68	1.07													◎
		8P			16	7.4	82	0.95													◎
		10P			20	8.5	95	0.95													◎
		13P			26	8.8	106	0.79													◎
		20P			40	10.5	140	0.69													◎
	24	1P	0.2		2	4.7	36	4.1	95			11/0.16	0.61		0.25		1.12				◎
		2P			4	6.1	53	3.2													◎
		3P			6	6.4	61	2.7													◎
		4P			8	6.9	73	2.4													◎
		5P			10	7.4	84	2.2													◎
		6P			12	7.9	92	1.8													◎
		8P			16	8.5	113	1.6													◎
		10P			20	9.8	138	1.6													◎
		13P			26	10.2	161	1.3													◎
		20P			40	12.2	211	1.2													◎
	22	1P	0.3		2	5	40	5.5	62			17/0.16	0.76		0.26		1.28				◎
		2P			4	6.6	60	4.2													◎
		3P			6	7	71	3.6													◎
		4P			8	7.5	86	3.1													◎
		5P			10	8.1	100	2.9													◎
		6P			12	8.7	114	2.5													◎
		10P			20	10.8	168	2.2													◎
	20	1P	0.5		2	5.4	46	7.4	40			21/0.18	0.95		0.27		1.5				◎
		2P			4	7.4	75	5.7													◎
		3P			6	7.7	93	4.8													◎
		4P			8	8.4	113	4.2													◎
		5P			10	9.1	130	3.9													◎

*1 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*2 The value of allowable current is to be used only as a reference value and is not guaranteed.
*3 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] ‌PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other

Current Reduction Factor

Ambient Temperature (°C)	30	40	50	60	70
Current Reduction Factor	1.00	0.89	0.77	0.63	0.44

Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value for AWG24 1-pair when the ambient temperature is 40°C: 4.1 x 0.89 = 3.64 (A)

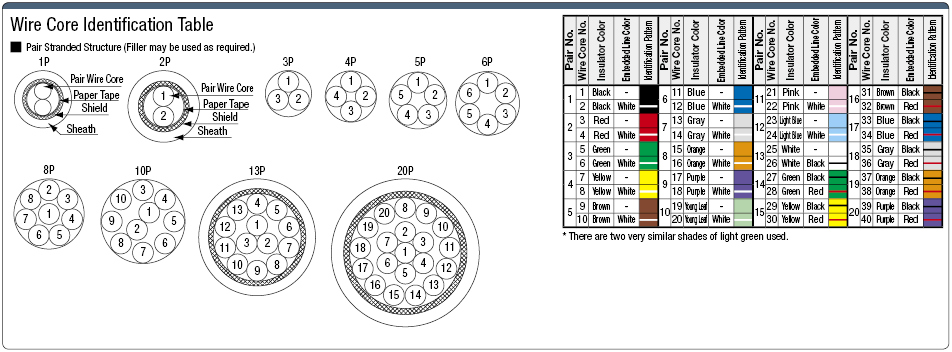

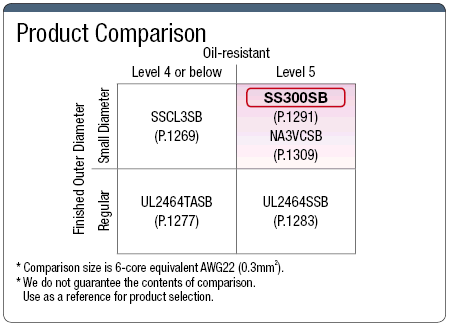

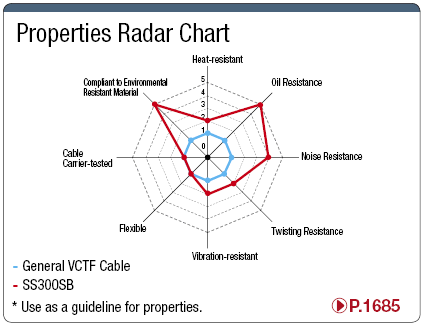

SS300SB UL with Shield:Related Image
