VH Connector Pin Header (Horizontal Mounting)【50 Pieces Per Package】

Click this image to zoom it.

Move the mouse over the image to zoom

• Volume Discount

MISUMI_Test

MISUMI_Test

• MISUMI_Test×Nylon Connectors
• MISUMI_Test×Connectors (General Purpose)
• MISUMI_Test×Wiring Components

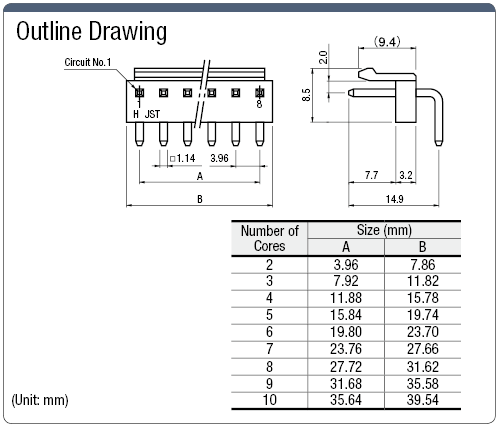

For 3.96 mm pitch horizontal mounting with a built-in male contact. 1 package contains 50 pieces

• ICON_PICT
• CSA
• TUV
• For Power Supply
• For Signal
• Sensor
• Motor
• Insertion

● This is a horizontal mounting model pin header with a male (pin) contact, which is built-in in advance.
● Contact pitch is 3.96 mm.
● Available from Misumi as a pack, this product has an original Misumi model number.
● Manufacturer: J.S.T. Mfg. Co., Ltd


· Quantity: 50 pcs. / pack

Part Number

Configured Part Number is shown.

B4PS-VH-50P

• Add
• Similar Products
• Download
  Product Details

• Product specification
• Part Numbers
• Standard Specifications

Specifications

1 Pack Unit
50-piece Pack

Model Number	Number of Cores
B2PS-VH-50P	2
B3PS-VH-50P	3
B4PS-VH-50P	4
B5PS-VH-50P	5
B6PS-VH-50P	6
B7PS-VH-50P	7
B8PS-VH-50P	8
B10PS-VH-50P	10

More Information

30

45

60

1. 1

Part Number
B4PS-VH-50P

Part Number	Standard Unit Price	Number of pc(s). included in pkg.	Minimum order quantity	Volume Discount	Days to Ship
	MYR 72.04	50 Pieces Per Package	1 Pack(s)	Available	2 Day(s) or more

Loading...

1. 1

VH Connector Common Specifications

● A compact, high-capacity nylon connector, widely used in FA devices, etc.
● Features a contact pitch of 3.96 mm, an assembly mounting height of 7.5 mm, and a thickness of 4.5 mm.
● The good performance quality and stability of use are due to having UL / CSA / TUV standards.
UL: E60389
CSA: LR20812
TÜV: R75122

Specifications

Item		Content
Rated Voltage		250 VAC / VDC
Rated Current		5 A (*)
Withstand Voltage		1,500 VAC (1 minute)
Insulation Resistance		1,000 MΩ or more
Contact Resistance	Initial	10 mΩ or less
	After environmental testing	20 mΩ or less
Applicable Electric Wire Range		AWG22 ~ 18 (0.33 ~ 0.83 mm2)
Suitable Electric Wire Insulation Outer Diameter		1.7 ~ 3.0 mm
Operating Temperature Range		-25 ~ 85°C

* When BVH-21T-P1.1 is used

Material

Item	Material
Housing	Nylon 66 (UL94V-0)
Housing Color	White Color
Crimp Contact	Phosphor Bronze / Tin Plated

PH Connector Common Specifications

● Compact, high-density nylon connectors, widely used in FA devices, etc.
● Features a contact pitch of 2.0 mm, an assembly mounting height of 7.5 mm, and a thickness of 4.5 mm.
● The good performance quality and stability of use are due to having UL / CSA / TUV standards.
UL: E60389
CSA: LR20812
TUV: R75087

Specifications

Item		Content
Rated Voltage		100 VAC / VDC
Rated Current		2 A
Withstand Voltage		800 VAC (1 minute)
Insulation Resistance		1,000 MΩ or more
Contact Resistance	Initial	10 mΩ or less
	After environmental testing	20 mΩ or less
Applicable Electric Wire Range		AWG30 ~ 24 (0.05 ~ 0.22 mm2)
Suitable Electric Wire Insulation Outer Diameter		0.9 ~ 1.5 mm
Operating Temperature Range		-25 ~ 85°C

Material

Item	Material
Housing	Nylon 66 (UL94V-0)
Housing Color	White Color
Crimp Contact	Phosphor Bronze / Tin Plated

Basic Information

Connector series initials	V· W· X	V· W· X	VH	Applicable pin/contact	Male (plug)
Number Of Pins	4	Application	Cable-to-board	Allowable Current(A)	5
Allowable Voltage(V)	250	Wire connection method	Solder	Connection direction	Angle
Protection function (environmentally resistant)	None	Representative Standard	UL / TUV / CSA	Removal method	Others

Configure

Clear All

1 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Days to Ship

• • All
  • 2 Day(s) or Less

  Clear

Specify Alterations

• The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
