MDR-Connector Complete Set (Connector / Connector Hood)
- Volume Discount
Selection workload reduction. Connector / Hood Package Deal
- For Signal
- PLC
- Motor
- SCSI
- Solder

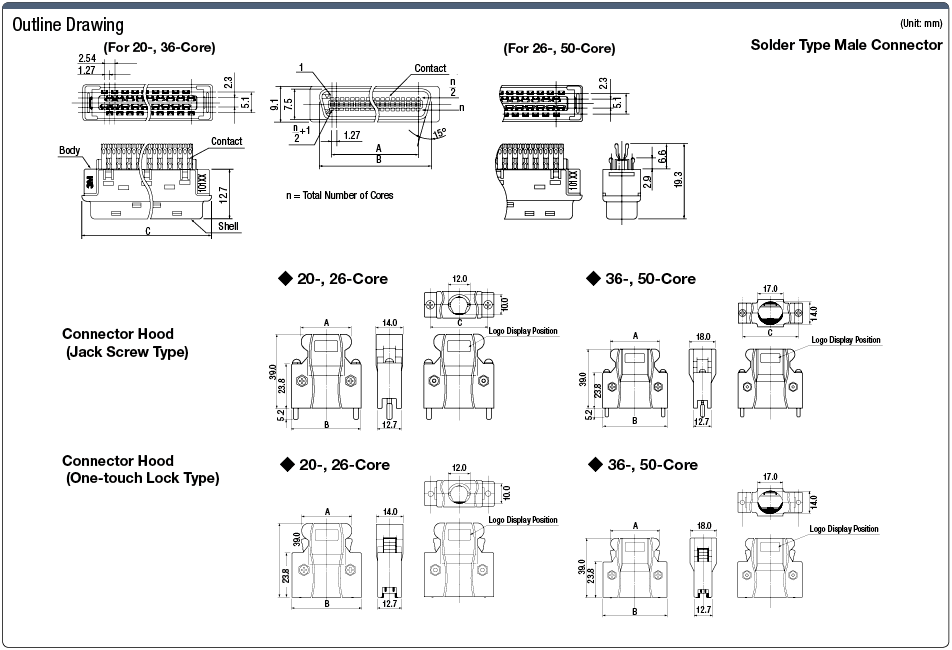

● Reduces selection labor! Connector and connector hood are sold as a set
● There are two kinds of set content
Solder model Connector + One-Touch Lock model Connector Hood (General Purpose)
Solder model Connector + Jack Screw model Connector Hood (EMI Countermeasure)
● For solder model connectors.
● For connector hoods.
For IEEE1284 connector harnesses.
· Perform crimping with the dedicated crimping tool specified by the manufacturer.
Part Number
Configured Part Number is shown.
SET-MDR-F-50
Specifications
| Model Number | Number of Cores | Type | MDR Connector | Connector Hood | |
| Solder Type | One-touch Lock (General Purpose) | Jack Screw (EMI Countermeasure) | |||
| SET-MDR-F-20 | 20 | One-touch Lock (General Purpose) | 10120-3000PE | 10320-52F0-008 | - |
| SET-MDR-F-26 | 26 | 10126-3000PE | 10326-52F0-008 | - | |
| SET-MDR-F-36 | 36 | 10136-3000PE | 10336-52F0-008 | - | |
| SET-MDR-F-50 | 50 | 10150-3000PE | 10350-52F0-008 | - | |
| SET-MDR-S-20 | 20 | Jack Screw (EMI Countermeasure) | 10120-3000PE | - | 10320-52S0-00S |
| SET-MDR-S-26 | 26 | 10126-3000PE | - | 10326-52S0-00S | |
| SET-MDR-S-36 | 36 | 10136-3000PE | - | 10336-52S0-00S | |
| SET-MDR-S-50 | 50 | 10150-3000PE | - | 10350-52S0-00S | |
More Information
Basic Information
| Series name | IEEE1284 Half Pitch | Shape type | Relay | Configuration type | Hood + Connector |
|---|---|---|---|---|---|
| Contact type | Cantilever Contact | Number of cores(Core) | 50 | Conforming wire size(AWG) | 24 ~ 30 |
| Finished outer diameter (maximum)(mm) | 16 | EMI compatibility | N/A | Fixing Method | One-touch Lock |
| Wiring Method | Solder | Quantity(Set) | 1 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
