Mini Universal / MATE-N-LOK Original Manual Crimpers

Mini Universal / MATE-N-LOK Original Manual Crimpers

Click this image to zoom it.

Move the mouse over the image to zoom

  • Volume Discount

MISUMI_Test

MISUMI_Test

Manual Crimping Tools for Mini Universal / MATE-N-LOK Series Connector


● Dedicated crimping tools for Mini Universal / MATE-N-LOK series connectors.


· It can only crimp compatible contacts.
· Tools developed for proto-model protection work.
For product manufacturing lines, we recommend using the tools specified by the connector manufacturer.
· A die-integrated tool.
· This tool cannot be calibrated.

PDF

Part Number

Configured Part Number is shown.

MSHT-A04

Specifications

Mini Universal / MATE-N-LOK Original Manual Crimpers:Related Image

Model NumberCompatible
Series		Compatible
Contacts		Contact
Type		Compatible WireWeight
(g)
AWGSheath Outer Diameter Ømm
MSHT-A04Mini-Universal MATE-N-LOK170363-1Male (Pin)26 ~ 221.2 ~ 1.8600
170364-122 ~ 181.5 ~ 2.4
171638-120 ~ 162.0 ~ 3.2
170365-1Female (Socket)26 ~ 221.2 ~ 1.8
170366-122 ~ 181.5 ~ 2.4
171639-120 ~ 162.0 ~ 3.2

■Blade type guide
Mini Universal / MATE-N-LOK Original Manual Crimpers:Related Image

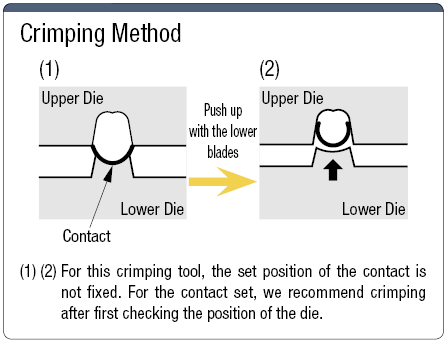

More Information

Mini Universal / MATE-N-LOK Original Manual Crimpers:Related Image

Mini Universal / MATE-N-LOK Original Manual Crimpers:Related Image
30
45
60
  1. 1
Part Number
MSHT-A04
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to Ship

MYR 1,086.98

1 Piece(s)Available 1 Day(s)

Loading...

  1. 1

Basic Information

Applicable type Mini Universal MATE-N-LOK Connector Product classification Crimping Tool

Please check the type/dimensions/specifications of the part MSHT-A04 in the Mini Universal / MATE-N-LOK Original Manual Crimpers series.
