MAST-UL2464: UL2464-compatible UL-Standard Wire

Sino-Japanese Common Model 300 V UL-AWM Standard Supported for Signals

VW-1
ULAWM
For Signal
Strand Wire

·This product is compatible with "UL Traceability Program / Processed Wire". (c-UL is not compatible)
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
*Color and softness may vary slightly due to manufacturer changes.
Electrical Appliance and Material Safety Law certificate is not obtained.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

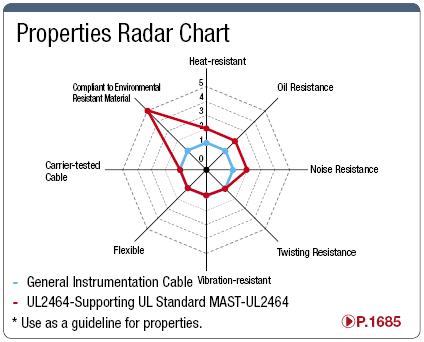

MAST-UL2464: UL2464-compatible UL-Standard Wire:Related Image

* Before ordering, confirm that the following symbols in the order (if any) are correct: "( = single-byte bracket"; "1 = One"; "I = i"; "0 = zero"; "O = oh".

Sheath Color	Black
Standard Acquired	UL
Rated Voltage	300V
Operating Temperature Range	0 ~ 80°C
Bending Radius	Finished Outer Diameter x 6 (Fixed Part Only)


1 Piece Unit	1 Roll Unit		Sales Unit
			Standard Shipping Days
Model Number	AWG Size	Core Number / Pair Number ^* 1P = 2 Cores	Total Length or Specified Length
Model Number	AWG Size	Core Number / Pair Number ^* 1P = 2 Cores	Total Length or Specified Length
MAST-UL2464	24	2	1 ~ 100 (Specify 1 m Increment)
		3
		4
		3P (6)
		4P (8)
		5P (10)
		6P (12)
		8P (16)
	22	2
		3
		4
		6
		10
		12
		20
	20	2
		3
		4
		6
		8
		10
		12
		16
		20

Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
* For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
* All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
* Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering.
* Length in "m" is included in model numbers. Always specify quantity as number of units, not as meters.
* Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering (check the Specification Table for number of wire cores). 1P (1 PS) is "x 2-core".
* Allowable current is to be used only as a reference value and is not guaranteed.

More Information

Specifications

Model Number	AWG Size	Core Number / Pair Number ^{* 1}1P = 2 Cores	Estimated Section Area (mm²) ^*2	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*5 Outer Diameter (mm)	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter Approx. (mm)	Sheath		Specification
Model Number	AWG Size	Core Number / Pair Number ^{* 1}1P = 2 Cores	Estimated Section Area (mm²) ^*2	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*5 Outer Diameter (mm)	Approximate Mass kg/km	Allowable Current A (30°C)^*3	Conductor Resistance Ω/km (20 °C)	Insulation Properties MΩkm (20°C)	Withstand Voltage V / Min	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*4	Thickness (mm)	Material ^*4	Wire Core Outer Diameter Approx. (mm)	Thickness (mm)	Material ^*4	Specification
MAST-UL2464	24	2	0.2	Twisted Core	2	4.2	22	3.8	97.5	10	2000	7/0.203	0.61	Tin	0.27	PVC	1.15	0.9	PVC	AWM2464
		3			3	4.4	27	3.3
		4			4	4.7	32	2.9
		3P (6)		Twisted Pair	6	5.8	44	2.5
		4P (8)			8	6.3	53	2.2
		5P (10)			10	6.8	62	2
		6P (12)			12	7.3	71	1.7
		8P (16)			16	8.5	91	1.5
	22	2	0.3	Twisted Core	2	5.5	36	5.8	57.5	10	2000	17/0.16	0.76		0.46		1.68	1
		3			3	5.7	43	5
		4			4	6.2	52	4.5
		6			6	7.1	69	3.8
		10			10	8.8	102	3.1
		12			12	9.1	115	2.6
		20			20	11	173	2.3
	20	2	0.5	Twisted Core	2	5.8	42	7.7	36.2	10	2000	21/0.18	0.95		0.46		1.87	1.0
		3			3	6.1	52	6.7
		4			4	6.6	63	6
		6		Twisted Core	6	7.7	85	5.1
		8			8	8.9	108	4.4
		10			10	9.6	129	4.1
		12			12	9.9	147	3.5
		16			16	10.9	185	3.1
		20			20	12.0	224	3.1

*1 Please note that when the indicated Core / Pair is 1P (1PS), the number of wire cores will be "x 2-core".
*2 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*3 The value of allowable current is to be used only as a reference value and is not guaranteed.
*4 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other
*5 For the outer diameter size of cables, wire sheath (coat), etc., refer to "Finished Outer Diameter" in the table above.

Current Reduction Factor

Ambient Temperature (°C)	30 or less	40	50	60	70
Current Reduction Factor	1	0.89	0.77	0.63	0.45

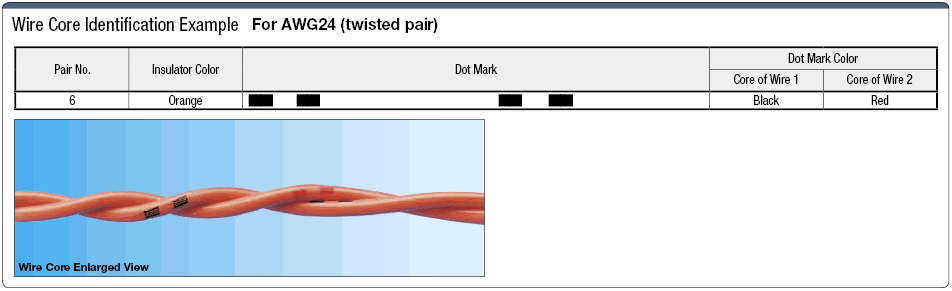

Wire Core Identification Table

Pair No.	Insulator Color	Dot Mark	Dot Mark Color
Pair No.	Insulator Color	Dot Mark	Core of Wire 1	Core of Wire 2
1	Orange	■	Black	Red
2	Yellow	■	Black	Red
3	Light Green	■	Black	Red
4	Gray	■	Black	Red
5	White	■	Black	Red
6	Orange	■■	Black	Red
7	Yellow	■■	Black	Red
8	Light Green	■■	Black	Red
9	Gray	■■	Black	Red
10	White	■■	Black	Red
11	Orange	■■■	Black	Red
12	Yellow	■■■	Black	Red
13	Light Green	■■■	Black	Red
14	Gray	■■■	Black	Red
15	White	■■■	Black	Red
16	Orange	■■■■	Black	Red

: 30; 45; 60
