XH Connector Socket Housing【50 Pieces Per Package】
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
2.5 mm Pitch Model, Height 9.8 mm / Thickness 5.75 mm. 1 package contains 50 pieces
- ICON_PICT
- CSA
- TUV
- For Power Supply
- For Signal
- Sensor
- Motor
- Insertion
● Housing for dedicated contacts (BXH-001T-P0.6).
● The housing thickness is 5.75 mm.
● The contact pitch is 2.5 mm.
● Available from Misumi as a pack, this product has an original Misumi model number.
● Manufacturer: J.S.T. Mfg. Co., Ltd
· Quantity: 50 pcs. / pack. Please note.
· Contacts are sold separately.
Part Number
Configured Part Number is shown.
XHP-3-50P
Specifications
1 Pack Unit 50-piece Pack

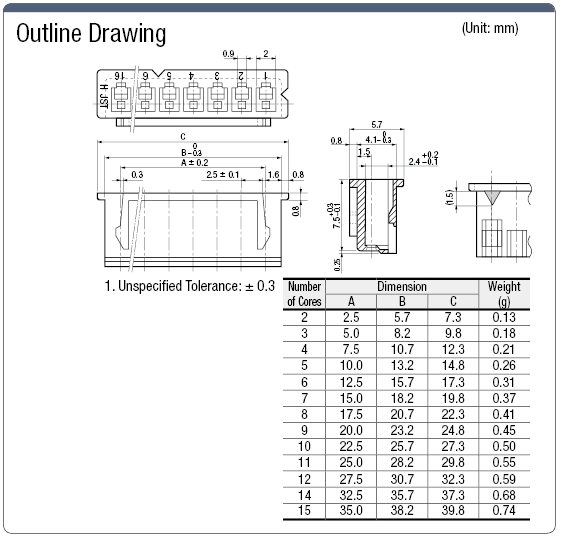

| Model Number | Number of Cores |
| XHP-2-50P | 2 |
| XHP-3-50P | 3 |
| XHP-4-50P | 4 |
| XHP-5-50P | 5 |
| XHP-6-50P | 6 |
| XHP-7-50P | 7 |
| XHP-8-50P | 8 |
| XHP-9-50P | 9 |
| XHP-10-50P | 10 |
| XHP-11-50P | 11 |
| XHP-12-50P | 12 |
| XHP-14-50P | 14 |
| XHP-15-50P | 15 |
Lead Time
More Information
| Part Number |
|---|
| XHP-3-50P |
| Part Number | Standard Unit Price | Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|---|
MYR 31.99 | 50 Pieces Per Package | 1 Pack(s) | Available | 1 Day(s) |
Loading...
Features
● Compact, high-density nylon connectors, widely used in FA devices, etc.● Each contact pitch is 2.5 mm, the thickness of the EH connector is 3.8 mm, the thickness of the XH connector 5.75 mm, and the thickness of the NH connector is 6.4 mm.
● The good performance quality and stability of use are due to having UL / CSA / TUV standards.
● UL No.E60389
Specifications
| Connector Type | EH Connector | XH Connector | NH Connector | |
|---|---|---|---|---|
| Rated Voltage | 250 VAC / VDC | |||
| Rated Current | 3 A | |||
| Withstand Voltage | 800 VAC (1 minute) | |||
| Insulation Resistance | 1,000 MΩ or more | 500 MΩ or more | ||
| Contact Resistance | After Initial Environmental Testing |
10 mΩ or less | 15 mΩ or less | |
| 20 mΩ or less | ||||
| Operating Temperature Range | -25 ~ 85°C | |||
| Applicable Electric Wire Range | AWG30 ~ 22 (0.05 ~ 0.3 mm2) |
AWG28 ~ 22 (0.08 ~ 0.33 mm2) |
||
| Suitable Electric Wire Insulation Outer Diameter | 1.0 ~ 1.9 mm | 1.3 ~ 1.9 mm | 1.2 ~ 1.7 mm | |
| Connector Thickness | 3.8 mm | 5.75 mm | 6.4 mm | |
| Combination Example |  |
 |
 |
|
| UL | E60389 | E60389 | E60389 | |
| CSA | LR20812 | LR20812 | LR20812 | |
| TUV | R75089 | R75085 | R75086 | |
Material
| Item | Material |
|---|---|
| Housing | Nylon 66 (UL94V-0) |
| Housing Color | White Color |
| Crimp Contact | Phosphor Bronze / Tin Plated |
Basic Information
| Connector series initials | V· W· X | V· W· X | XH | Applicable pin/contact | Female (socket) |
|---|---|---|---|---|---|
| Number Of Pins | 3 | Application | Cable to cable | Allowable Current(A) | 3 |
| Allowable Voltage(V) | 250 | Wire connection method | Crimp | Connection direction | Straight |
| Protection function (environmentally resistant) | None | Representative Standard | UL / TUV / CSA | Removal method | Others |
Please check the type/dimensions/specifications of the part XHP-3-50P in the XH Connector Socket Housing series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
