Bundled Cord Type / Outdoor Use / Multi-Mode
Customer requested length. Optical fiber is specifiable in 1 m increments.
Customer requested length. Optical fiber is specifiable in 1 m increments.
· Although resistance to the environment can be provided outdoors, it is recommended that cables to be used outdoors be installed as far inside piping as possible as a measure against the effects of prolonged rain, ultraviolet rays, lightning, etc.
· The overall length is the length from one connector tip to the other.
· A "PC polishing" method is used for all of the following products.
· Delivery in drums is possible for 201 m or more. The drums are made of wood. Note that delivery in drums with fumigation certificates is not possible. Please be aware of this.

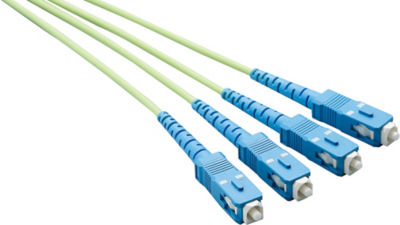

· Images shown are of the "Core No.: 4" and "Core No.: 50" types.
Part Number
Configured Part Number is shown.
NWNFC-MSCFC-D-OUT-62-[2-1000/1]
Specification Table
| Series Name | Connector Type | CN1 | CN2 | Number Of Cores | Application | Core diameter (μm) | Overall Length (m) |
| NWNFC | MSCSC |  SC |  SC | D (2-core) 4 (4-core) | OUT (outdoor use) | 50/62 | 2 to 500 |
| MFCFC |  FC |  FC | |||||
| MSCFC |  SC |  FC | |||||
| MSTST |  ST |  ST | 1 m Increment Specifiable | ||||
| MSTSC |  ST |  SC | |||||
| MSTFC |  ST |  FC |
Option
The following options can be included. If included, create a model number as shown below.
Overview of Specifications
| Length | Tolerance |
| + 500 mm | +30 mm, −0 mm |
| 501 to 1,000 mm | +50 mm, −0 mm |
| 1,001 to less than 3,000 mm | +75 mm, −0 mm |
| 3,000 mm or more | +3%, −0 mm |
Basic Information
| Operating Environment | Outdoor | Cable Type | Multi | Number Of Cores | 2-core |
|---|---|---|---|---|---|
| Connector CN1 side | SC | Connector CN2 side | FC | Cable (cord, assembly) | Set |
| Length designated range(m) | 2 ~ 500 | Core diameter(50/62) | 62 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
