NA3VC UL Standard

Volume Discount

Cable for 300 V UL-AWM Standard Signals

VW-1
ULAWM
Oil-Resistant
Strand Wire
Twisted Pair
300 V

· This product is compatible with "UL Traceability Program / Processed Wire".
(c-UL is not compatible)
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* All unit prices are per meter.
Unit Price Calculation Method
[Formula: Last digits of model number (m) x unit price per meter above]
* Color and softness may vary slightly due to manufacturer changes.

Electrical Appliance and Material Safety Law certificate is not obtained.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

Model Number	AWG Size	Core Number / Pair Number ^{* 4} 1P = 2 Cores
Model Number	AWG Size	Core Number / Pair Number ^{* 4} 1P = 2 Cores
NA3VC	25	1P
		1.5P (3-Core)
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
		12P
		15P
		18P
		25P
		32P
	23	1P
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
		12P
		18P
		25P
	21	1P
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
	19	2
		3
		4
		6
		8
		10
		12
	16	2
		3
		4
		6
		8

Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
*1 Stock products are indicated with T or A in the price column at right.
*2 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
*3 Please note that when ordering 1000 m and 500 m, the order will be delivered as 100 m windings (we cannot accept orders for single cables).
*4 Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering.

More Information

Specifications

Model Number	AWG Size	Core Number / Pair Number ^{* 1}1P = 2 Cores	Estimated Section Area (mm²) ^{* 2}	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*6 Outer Diameter (mm)	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter Approx. (mm)	Sheath		Specification	Sample Provided^{* 5}
Model Number	AWG Size	Core Number / Pair Number ^{* 1}1P = 2 Cores	Estimated Section Area (mm²) ^{* 2}	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*6 Outer Diameter (mm)	Approximate Mass kg/km	Allowable Current A (30°C)^{* 3}	Conductor Resistance Ω / km (20°C)	Insulation Properties MΩkm (20°C)	Withstand Voltage V / 5 Minutes	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*4	Thickness (mm)	Material ^*4	Wire Core Outer Diameter Approx. (mm)	Thickness (mm)	Material ^*4	Specification	Sample Provided^{* 5}
NA3VC	25	1P	0.2	Twisted Pair	2	3.9	19.0	4.4	121 or less	10 or more	2000	7/0.18	0.54	Tin	0.23	PVC	1.0	0.9	PVC	ULAWM2517	◎
		1.5P (twisted core)			3	4.1	21.5	3.8										0.9			◎
		2P			4	5.0	29.0	3.5										0.9			◎
		3P			6	5.4	36.8	2.9										1.0			◎
		4P			8	5.8	44.1	2.6										1.0			◎
		5P			10	6.3	51.0	2.4										1.0			◎
		6P			12	6.8	58.5	2.2										1.0			◎
		7P			14	6.8	62.5	2.1										1.0			◎
		8P			16	7.2	70.2	2.0										1.0			◎
		10P			20	8.4	82.1	1.8										1.0			◎
		12P			24	8.8	96.8	1.7										1.1			◎
		15P			30	9.8	119.2	1.5										1.2			◎
		18P			36	10.3	138.9	1.4										1.2			◎
		25P			50	12.1	187.3	1.2										1.3			◎
		32P			64	13.4	235.5	1.1										1.4			◎
	23	1P	0.3		2	4.2	21.9	6.3	71.1 or less	10 or more	2000	12/0.18	0.72		0.24		1.2	0.9			◎
		2P			4	5.7	34.6	5.0										0.9			◎
		3P			6	6.1	45.8	4.2										1.0			◎
		4P			8	6.6	56.3	3.7										1.0			◎
		5P			10	7.2	68.3	3.4										1.0			◎
		6P			12	8.0	78.9	3.1										1.0			◎
		7P			14	8.0	85.8	3.0										1.0			◎
		8P			16	8.8	100.5	2.8										1.1			◎
		10P			20	9.8	122.6	2.6										1.1			◎
		12P			24	10.3	144.4	2.4										1.2			◎
		18P			36	11.9	197.9	2.1										1.2			◎
		25P			50	14.1	273.8	1.7										1.4			◎
	21	1P	0.5		2	4.7	30.3	8.8	41.9 or less	10 or more	2000	20/0.18	0.92		0.24		1.4	0.9			◎
		2P			4	6.5	47.9	7.0										1.0			◎
		3P			6	6.8	61.1	5.8										1.0			◎
		4P			8	7.4	76.3	5.1										1.0			◎
		5P			10	8.0	92.2	4.8										1.0			◎
		6P			12	8.9	112.5	4.3										1.1			◎
		7P			14	8.9	121.4	4.1										1.1			◎
		8P			16	9.9	138.8	3.9										1.1			◎
		10P			20	11.7	174.9	3.6										1.2			◎
	19	2	0.75	Twisted Core Layer	2	5.1	41.0	11.5	27.7 or less	10 or more	2000	30/0.18	1.13		0.24		1.6	0.9			◎
		3			3	5.5	50.6	10.0										1.0			◎
		4			4	6.0	60.7	9.0										1.0			◎
		6			6	6.9	80.0	7.6										1.0			◎
		8			8	7.4	98.8	6.6										1.0			◎
		10			10	8.5	116.5	6.2										1.0			◎
		12			12	8.8	134.7	5.7										1.0			◎
	16	2	1.25		2	6.3	58.8	17.5	15.4 or less	10 or more	2000	54/0.18	1.53		0.28		2.1	1.0			◎
		3			3	6.7	76.9	15.2										1.0			◎
		4			4	7.2	94.6	13.7										1.0			◎
		6			6	8.4	123.3	11.6										1.0			◎
		8			8	8.9	154.7	10.1										1.0			◎

*1 Please note that when the indicated Core / Pair is 1P (1PS), the number of wire cores will be "x 2-core".
*2 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*3 The value of allowable current is to be used only as a reference value and is not guaranteed.
*4 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material; P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other
*5 For the outer diameter size of cables, wire sheath (coat), etc., refer to "Finished Outer Diameter" in the table above.

Current Reduction Factor

Ambient Temperature (°C)	30	40	50	60	70	80	90	100
Current Reduction Factor	1.00	0.90	0.75	0.73	0.65	0.56	0.44	0.27

Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value 4.4 x 0.9 = 3.96 (A) when the ambient temperature for 2-core AWG25 is 40 °C

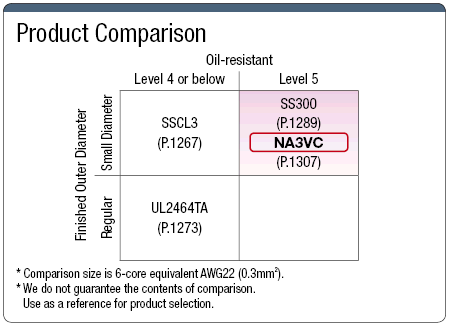

NA3VC UL Standard:Related Image
