NA3CT / NA6CT UL Standard for Mounted Power Sources

Click this image to zoom it.

Move the mouse over the image to zoom

MISUMI_Test

Fixed Power Supply Cable for UL Standard Motor

VW-1
ULAWM
Motor
Oil-Resistant

● UL VW-1 flame retardancy test approved.

· Be careful not to confuse specified length and quantity when ordering.
The Electrical Appliance and Material Safety Law certificate has not been obtained. Please be forewarned.
· 1 wire of NA3CT/6CT 6-core model black conductor has a white line for identification.
· This product is compatible with "UL Traceability Program / Processed Wire." (c-UL is not compatible)
* All unit prices are per meter.
Unit Price Calculation Method
[Formula: Last digits of model number (m) x unit price per meter above]
* Color and softness may vary slightly due to manufacturer changes.

Electrical Appliance and Material Safety Law certificate has not been obtained.

Part Number

Configured Part Number is shown.

NA6CT-8-4-100

Product specification
Part Numbers

Specifications

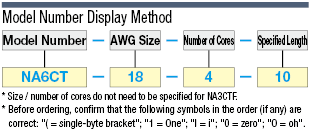

NA3CT / NA6CT UL Standard for Mounted Power Sources:Related Image

Sheath Color	Navy
Operating Temperature Range	0 ~ 105°C
Standard Acquired	ULAWM2501 (600 V)
Standard Acquired	ULAWM2517 (300 V)
Allowable Bending Radius	Finished Outer Diameter x 6 (Fixed Part Only)

Model Number	AWG Size	Number of Cores	Sample Provided


NA6CT (ULAWM2501 / 600 V 105°C)	18^*(0.75mm²)	4	◎
	16^*(1.25mm²)	4	◎
		6	◎
	14^*(2mm²)	4	◎
		6	◎
	12^*(3.5mm²)	4	◎
		6	◎
	10^*(5.5mm²)	4	◎
		6	◎
	8 ^* (10 mm²)	4	◎
	6 ^* (14 mm²)	4	◎
NA3CT (ULAWM2517 / 300 V 105°C)	20^*(0.5mm²)	4	◎
		6	◎
	18^*(0.75mm²)	4	◎
Model Number	Composite (AWG Size x Core Number) + (AWG Size x Core Number)		Sample Provided


NA3CTF-T (ULAWM2517 / 300 V 105°C)	(AWG16 x 4) + (AWG20 x 2)		◎

* (~ mm²) is to be used only as an estimated section area. Refer to the comparison table on >>Click here for details.

More Information

Specifications

Model Number	AWG Size ^*1	Number of Cores	Specified Length (m)	Conductor Identification ^*2		Conductor		Insulation Thickness (mm)	Wire Core Outer Diameter Approx. (mm)	Sheath Thickness (mm)	Finished Outer Diameter (mm) ^{* 3}	Electrical Properties				Approximate Mass kg/km
Model Number	AWG Size ^*1	Number of Cores	Specified Length (m)	Conductor Identification ^*2		Structure Strands / mm	Outer Diameter Approx. / mm	Insulation Thickness (mm)	Wire Core Outer Diameter Approx. (mm)	Sheath Thickness (mm)	Finished Outer Diameter (mm) ^{* 3}	Conductor Resistance Ω / km (20°C)	Insulation Properties MΩkm (20°C)	Withstand Voltage V / Min	Allowable Current A (30°C)^{* 4}	Approximate Mass kg/km
NA6CT (ULAWM2501 / 600 V 105°C)	18 (0.75mm²)	4	1 ~ 100 (Specify 1 m Increment)	Blue White Red YG		34/0.18	1.21	0.85	2.91	1.7	10.5	22.1	50	2000	9	133
	16 (1.25mm²)	4		Blue White Red YG		53/0.18	1.51	0.85	3.21	1.7	11.2	13.9	50	2000	12	164
	16 (1.25mm²)	6		Blue White Red YG Black Black / White		53/0.18	1.51	0.85	3.21	1.7	13.1	13.9	50	2000	10	225
	14 (2mm²)	4		Blue White Red YG		41/0.26	1.92	0.85	3.62	1.7	13.2	8.75	50	2000	18	210
	14 (2mm²)	6		Blue White Red YG Black Black / White		41/0.26	1.92	0.85	3.62	1.7	14.4	8.75	50	2000	15	291
	12 (3.5mm²)	4		Blue White Red YG		43/0.32	2.42	0.85	4.12	1.7	13.4	5.51	50	2000	23	277
	12 (3.5mm²)	6		Blue White Red YG Black Black / White		43/0.32	2.42	0.85	4.12	1.7	15.9	5.51	50	2000	19	390
	10 (5.5mm²)	4		Blue White Red YG		43/0.40	3.03	0.85	4.73	1.7	14.9	3.46	50	2000	31	371
	10 (5.5mm²)	6		Blue White Red YG Black Black / White		43/0.40	3.03	0.85	4.73	1.7	17.7	3.46	50	2000	26	536
	8 (10mm²)	4		Blue White Red GY		55/0.45	3.9	1.25	6.4	1.7	18.9	2.14	40	2000	61	615
	6 (14 mm²)	4		Blue White Red GY		87/0.45	4.8	1.65	8.1	2.2	24.1	1.34	40	2000	83	1020
NA3CT (ULAWM2517 / 300 V 105°C)	20 (0.5mm²)	4		Blue White Red YG		27/0.16	0.96	0.32	1.6	1.0	6	36	10	2000	6	49
	20 (0.5mm²)	6		Blue White Red YG Black Black		27/0.16	0.96	0.32	1.6	1.0	6.9	36	10	2000	5	67
	18 (0.75mm²)	4		Blue White Red YG		34/0.18	1.21	0.35	1.9	0.8	6.3	23.6	10	2000	9	59
Model Number	Composite (AWG Size x Core Number) + (AWG Size x Core Number)		Specified Length (m)	Conductor Identification		Conductor		Insulation Thickness (mm)	Wire Core Outer Diameter Approx. (mm)	Sheath Thickness (mm)	Finished Outer Diameter (mm)	Electrical Properties				Approximate Mass kg/km
Model Number			Specified Length (m)	Conductor Identification		Structure Strands / mm	Outer Diameter Approx. / mm	Insulation Thickness (mm)	Wire Core Outer Diameter Approx. (mm)	Sheath Thickness (mm)	Finished Outer Diameter (mm)	Conductor Resistance Ω / km (20°C)	Insulation Properties MΩkm (20°C)	Withstand Voltage V / Min	Allowable Current A (30 °C)	Approximate Mass kg/km
NA3CTF-T (ULAWM2517 / 300 V 105°C)	(AWG16 x 4) + (AWG20 x 2)		1 ~ 100 (Specify 1 m Increment)	AWG16	Blue White Red YG	54/0.18	1.53	0.34	2.2	0.8	7.5	14.7	10	2000	10	102
NA3CTF-T (ULAWM2517 / 300 V 105°C)	(AWG16 x 4) + (AWG20 x 2)		1 ~ 100 (Specify 1 m Increment)	AWG20	Black Black	27/0.16	0.96	0.27	1.5	0.8	7.5	36	10	2000	5	102

*1 (~ mm²) is to be used only as an estimated section area. Refer to the comparison table on >>Click here for details.
*2 1 wire of NA3CT/6CT 6-core type black conductor has a white line for identification.
*3 For the outer diameter size of cables, wire sheath (coat), etc., refer to "Finished Outer Diameter" in the table above.
*4 Allowable current is to be used only as a reference value and is not guaranteed.

: 30; 45; 60

Part Number
NA6CT-8-4-100

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Days to Ship
	MYR 11,471.13	1 Piece(s)		2 Day(s) or more

Basic Information

Overall Length(m)	100	Conductor Cross Section(mm²)	10	AWG size(AWG)	8
Number Of Cores(Core)	4	Finished outer diameter(mm)	18.9	Rated Voltage	300V
Shield	None	Properties	Oil resistance	Representative Standard	UL
Sheath (outer coating) color	Navy color	Grounding Wire	Colored YG (yellow/green)	Sheath (outer coating) material	PVC
Power supply/signal	Dual use

Configure

1 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Days to Ship

All

2 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
