Metal Cable Gland (Straight)

Metal Cable Gland (Straight)

Click this image to zoom it.

Move the mouse over the image to zoom

  • Volume Discount

MISUMI_Test

MISUMI_Test

Metal conduit connector for FAG / FSV / FTUB / FSN series only (straight model).
Parallel pipe screw (PF screw) specification

  • IP67

● Straight model connector to connect conduits to thick steel screw electrical tubing and PF or CTG screws.
● It comes with a lock nut, allowing it to be mounted to unthreaded panel holes, and the connector panel joint surface is fitted with a seal gasket.
● Compatible with IP67 protection mechanism when combined with dedicated tube main unit.

· Depending on the quantity of your order, the delivery time may require an estimate.
· The appearance and specifications are subject to change without notice.

PDF

Part Number

Configured Part Number is shown.

MSS22-22

Specifications

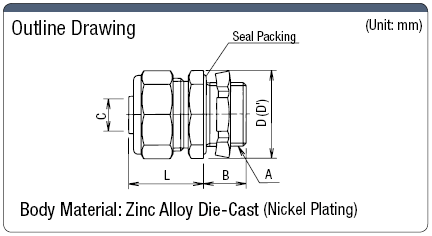

Metal Cable Gland (Straight):Related Image

(mm)
Model NumberCompatible Conduit Thick Steel Screw ABInner Diameter
C		Length before tightening
L		Opposite Sides
D		Diagonal
D'		Weight (g)Loose Charge
TypeSizeCable Conduit
Screw Nominal		Parallel Screw
Nominal for Pipes		Recommended
Mounting Hole Diameter		1 ~ 5 Pieces
TypeSize
MSS10-16FAG
FSV
FTUB
FSN		10CTG-16PF-1/221148.222272958
12-161210.723
16-16161426.53234.582
16-2216CTG-22PF-3/427363998
22-222218.992
28-2828CTG-28PF-1341624.5294650164
36-3636CTG-36PF-11/4421833.130.55458.5200
42-4242CTG-42PF-11/24838.1336065250
