Cable Gland (M Screw / CTG Screw)

Cable Gland (M Screw / CTG Screw)

Click this image to zoom it.

Move the mouse over the image to zoom

  • Volume Discount

MISUMI_Test

MISUMI_Test

The cable gland with lock nut is compatible with electric wire outer diameter φ2 ~ φ30, protective design IP67

  • Oil-Resistant


● The cable can be fixed by simply tightening the cap.
● The protective structure satisfies IP67, and has excellent oil resistance.
● Panel mounting is also possible using the accompanying lock nut.



PDF

Part Number

Configured Part Number is shown.

Specifications

Cable Gland (M Screw / CTG Screw):Related Image

■ Standards Table
(mm)

ModelCompatible Wire Outer DiameterPanel
Mounting Hole Diameter		Mounting ScrewCompatible Plate ThicknessOperating Temperature
Range		Protective
Structure		ABCDEFGHWeight (g)
OA-W-15M-04Ø2 - 4Ø15M15
(P=1)		3mm
or less		-25°C
~
+80°C		IP6727.5616.4Ø1816.5Ø182.520.57.0
OA-W-15M-05Ø3 ~ 56.8
OA-W-15M-07Ø5 ~ 76.2
OA-W-1606Ø4 ~ 6Ø21CTG164mm
or less		281020Ø2222Ø275.52812.4
OA-W-1608Ø6 ~ 811.8
OA-W-1609Ø7 ~ 922Ø242412.8
OA-W-1611Ø9 ~ 1111.9
OA-W-1613Ø11 ~ 133mm or less32924Ø2711.4
OA-W-2216Ø11 ~ 16Ø28CTG226mm or less36.51336Ø3936Ø396.53832.0
OA-W-2219Ø15 ~ 1929.5
OA-W-2823Ø19 ~ 23Ø34CTG285.5mm or less521141Ø4541Ø4554167.2
OA-W-3630Ø25 ~ 30Ø42CTG367.5 mm or less611449.5Ø54.549.5Ø54.5550106.5

More Information

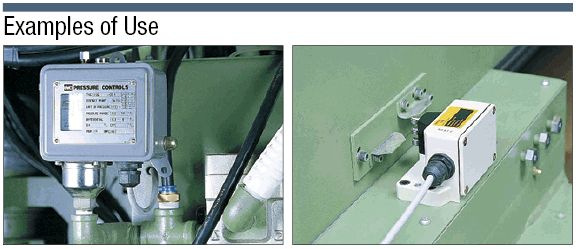

Cable Gland (M Screw / CTG Screw):Related Image

Cable Gland (M Screw / CTG Screw):Related Image

Cable Gland (M Screw / CTG Screw):Related Image

30
45
60
  1. 1
Part Number
OA-W-1606
OA-W-1608
OA-W-1609
OA-W-1611
OA-W-1613
OA-W-2823
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipConforming wire diameter
(mm) 		Mounting screw Mounting hole diameter
(mm) 		Conforming plate thickness

MYR 12.67

1 Piece(s)Available 1 Day(s) Ø4 ~ 6CTG16φ214mm or less

MYR 12.94

1 Piece(s)Available 1 Day(s) Ø 6 ~ 8CTG16φ214mm or less

MYR 13.40

1 Piece(s)Available 1 Day(s) Ø7 ~ 9CTG16φ214mm or less

MYR 13.40

1 Piece(s)Available 1 Day(s) Ø 9 ~ 11CTG16φ214mm or less

MYR 15.46

1 Piece(s)Available 1 Day(s) Ø 11 ~ 13CTG16φ213 mm or less

MYR 38.83

1 Piece(s)Available 1 Day(s) Ø 19 ~ 23CTG28φ345.5 mm or less
