Online Name Plate/Acrylic Engraved Name Plates
- Volume Discount
Quotes can be requested through our online design service.
- MISUMI Original
Our online design service enables collective issuance.。
| 1 Title Name Plates |
| 2. Name Plates And Switch Legend Plates |

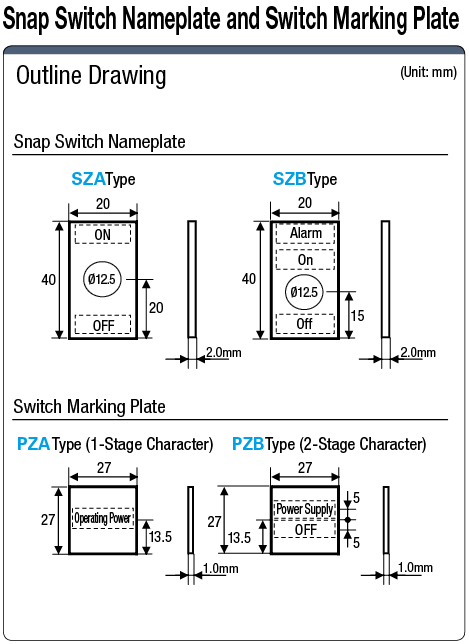

| 3. Snap Switch Name Plates and Switch Name Plates |
・Products with different model numbers cannot be designed together Complete each design with the same model number.
Please note that MISUMI will request a redesign if the design details are incorrect.
If ordering by fax
■TZA15-20-Desired Text
■To use red text
To order red text, add "-CC" to the end.
Order form sample: TZA15-20-Desired Text-CC
■To order two lines
Add a slash (/) between the top and bottom line.
Order form sample: TZA15-90-(top line) Desired Text/(bottom line)Desired Text
| Series | Title Name Plate | Name Plate | Switch Legend Plate | Snap Switch Name Plate | Switch Name Plate |
| Type | TLA·TLB | TZA·TZB | DRMA·DRMB | SZA·SZB | PZA·PZB |
| Material | Transparent Acrylic (White Undercoating on Reverse) | Acrylic (Translucent White) | |||
| Thickness | 2.0 mm (Dimension L: 150 to 290 mm) 3.0 mm (Dimension L: 300 to 400 mm) | 2.0 mm (1.0 mm when TZA Dimension H is 5.0 mm) | 2.0 mm | 2.0 mm | 1.0 mm |
| Machining Method | Engraving and Inking from Reverse Side | Engraving and Inking from Front | |||
| Font | Circle Gothic | ||||
| Text Color | Black/Red | ||||
| Text Arrangement | DIMENSION H/L CENTERED | DIMENSION H/L CENTERED | Dimension F/W Centered | Refer to diagram below | DIMENSION H/L CENTERED |
| Reverse Side Double-Sided Tape Y/N | Double-Sided Tape Attached (no double-sided tape if 2-<248/>3.5 mount holes are drilled on the left and right.) | Double-Sided Tape Attached | NA | NA | NA |
Part Number
Enter Part Number
To confirm with applicable discounts and Days to ship, please quote.
Specification Table
Basic Specifications
Title Name Plate
Name Plate Size/Machinable Character Count
■ Title Name Plate TLA/TLB Type
(unit: mm)
Name Plate Size/Machinable Character Count
■ Title Name Plate TLA/TLB Type
(unit: mm)
| Type | L H | 150 | 160 | 170 | 180 | 190 | 200 | 210 | 220 | 230 | 240 | 250 | 260 | 270 | 280 | 290 | 300 | 310 | 320 | 330 | 340 | 350 | 360 | 370 | 380 | 390 | 400 | Standard Text Height A |
| TLA | 15 | 10 | 10 | 11 | 12 | 12 | 13 | 14 | 14 | 15 | 16 | 17 | 17 | 18 | 19 | 19 | 20 | 21 | 22 | 23 | 23 | 24 | 24 | 25 | 26 | 27 | 27 | 9 |
| 20 | 8 | 8 | 9 | 10 | 10 | 11 | 12 | 12 | 13 | 13 | 14 | 15 | 15 | 16 | 16 | 17 | 18 | 18 | 19 | 19 | 20 | 20 | 21 | 21 | 22 | 22 | 12 | |
| 25 | 6 | 7 | 7 | 8 | 8 | 9 | 9 | 10 | 10 | 11 | 11 | 12 | 12 | 13 | 13 | 14 | 14 | 15 | 15 | 16 | 16 | 17 | 17 | 18 | 18 | 19 | 15 | |
| 30 | 5 | 6 | 6 | 7 | 7 | 8 | 8 | 8 | 9 | 9 | 10 | 10 | 11 | 11 | 11 | 12 | 12 | 13 | 13 | 14 | 14 | 15 | 15 | 15 | 16 | 16 | 18 | |
| 35 | 5 | 5 | 5 | 6 | 6 | 7 | 7 | 7 | 8 | 8 | 9 | 9 | 9 | 10 | 10 | 10 | 11 | 11 | 12 | 12 | 12 | 13 | 13 | 14 | 14 | 14 | 21 | |
| 40 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 7 | 7 | 7 | 8 | 8 | 8 | 9 | 9 | 9 | 10 | 10 | 10 | 11 | 11 | 11 | 12 | 12 | 12 | 25 | |
| 45 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 7 | 7 | 7 | 8 | 8 | 8 | 9 | 9 | 9 | 10 | 10 | 10 | 11 | 11 | 11 | 12 | 12 | 12 | 25 | |
| 50 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 7 | 7 | 7 | 8 | 8 | 8 | 9 | 9 | 9 | 10 | 10 | 10 | 11 | 11 | 11 | 30 | |
| TLB | 15 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 5 |
| 20 | 13 | 14 | 15 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 35 | 6 | |
| 25 | 11 | 12 | 13 | 13 | 14 | 15 | 16 | 17 | 17 | 18 | 19 | 20 | 21 | 21 | 22 | 23 | 24 | 25 | 25 | 26 | 27 | 28 | 29 | 29 | 30 | 31 | 7.5 | |
| 30 | 10 | 10 | 11 | 12 | 12 | 13 | 14 | 14 | 15 | 16 | 17 | 17 | 18 | 19 | 19 | 20 | 21 | 22 | 22 | 23 | 24 | 24 | 25 | 26 | 27 | 27 | 9 | |
| 35 | 8 | 8 | 9 | 10 | 11 | 11 | 12 | 13 | 13 | 14 | 15 | 15 | 16 | 17 | 17 | 18 | 19 | 19 | 20 | 20 | 21 | 22 | 22 | 23 | 24 | 24 | 10.5 | |
| 40 | 8 | 8 | 9 | 10 | 10 | 11 | 12 | 12 | 13 | 13 | 14 | 15 | 15 | 16 | 16 | 17 | 18 | 18 | 19 | 19 | 20 | 20 | 21 | 21 | 22 | 22 | 12 | |
| 45 | 8 | 8 | 9 | 10 | 10 | 11 | 12 | 12 | 13 | 13 | 14 | 15 | 15 | 16 | 16 | 17 | 18 | 18 | 19 | 19 | 20 | 20 | 21 | 21 | 22 | 22 | 12 | |
| 50 | 6 | 7 | 7 | 8 | 8 | 9 | 9 | 10 | 10 | 11 | 11 | 12 | 12 | 13 | 13 | 14 | 14 | 15 | 15 | 16 | 16 | 17 | 17 | 18 | 18 | 19 | 15 |
■ Option with mount holes (2-φ3.5) on left and right
| Option Price | +¥60 |
Name Plates And Switch Legend Plates
Name Plate Size/Machinable Character Count

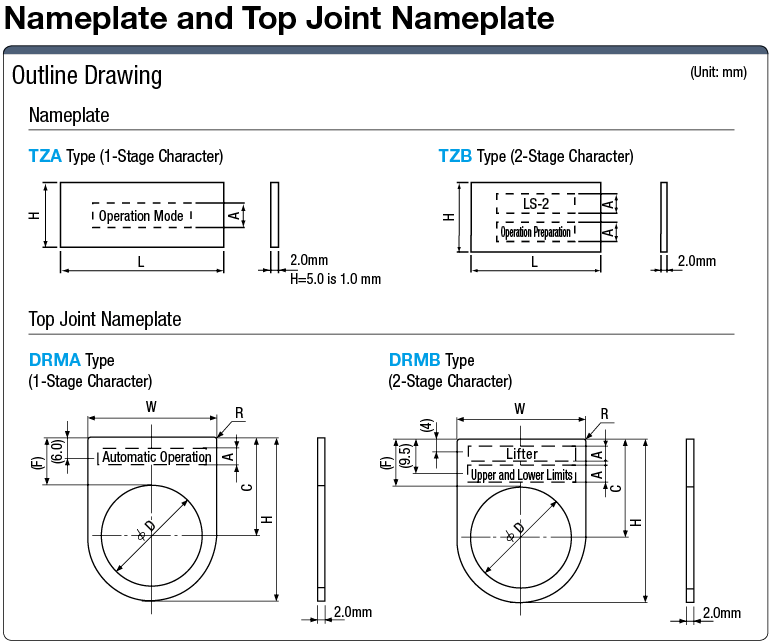

■ Name Plate TZA/TZB Type
(unit: mm)
■ Name Plate TZA/TZB Type
(unit: mm)
| Type | L H | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | Standard Text Height A |
| TZA | 5 | 4 | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | − | − | − | − | − | − | − | − | − | − | 3 |
| 8 | − | 3 | 4 | 6 | 8 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 24 | 26 | 28 | 30 | 32 | 33 | 4 | |
| 10 | − | 3 | 4 | 6 | 7 | 9 | 11 | 12 | 14 | 15 | 17 | 19 | 21 | 21 | 22 | 24 | 26 | 28 | 29 | 4.5 | |
| 12 | − | 2 | 4 | 5 | 7 | 8 | 10 | 11 | 13 | 14 | 15 | 16 | 18 | 19 | 20 | 22 | 23 | 25 | 27 | 5 | |
| 15 | − | 2 | 4 | 5 | 7 | 8 | 10 | 11 | 13 | 14 | 15 | 16 | 18 | 19 | 20 | 22 | 23 | 25 | 27 | 5 | |
| 20 | − | 2 | 4 | 5 | 7 | 8 | 10 | 11 | 13 | 14 | 15 | 16 | 18 | 19 | 20 | 22 | 23 | 25 | 27 | 5 | |
| TZB | 12 | − | 3 | 4 | 6 | 8 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 24 | 26 | 28 | 30 | 32 | 33 | 4 |
| 15 | − | 3 | 4 | 6 | 7 | 9 | 11 | 12 | 14 | 15 | 17 | 19 | 21 | 21 | 22 | 24 | 26 | 28 | 29 | 4.5 | |
| 20 | − | 2 | 4 | 5 | 7 | 8 | 10 | 11 | 13 | 14 | 15 | 16 | 18 | 19 | 20 | 22 | 23 | 25 | 27 | 5 |
(unit: mm)
■ Switch Legend Plate DRMA/DRMB Type
| Type | Size (unit: mm) | Machinable Character Count | Standard Text Height A | Dead Weight (g) | ||||
| φD | W | H | C | (F) | ||||
| DRMA22 | 22.5 | 30 | 40 | 25 | 13 | 8 | 4 | 3 |
| DRMA25 | 25.5 | 35 | 45 | 27.5 | 14 | 9 | 4.5 | 4 |
| DRMA30 | 30.5 | 40 | 50 | 30 | 14 | 10 | 5 | 5 |
| DRMB22 | 22.5 | 30 | 40 | 25 | 13 | 8 | 4 | 3 |
| DRMB25 | 25.5 | 35 | 45 | 27.5 | 14 | 9 | 4.5 | 4 |
| DRMB30 | 30.5 | 40 | 50 | 30 | 14 | 10 | 5 | 5 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
