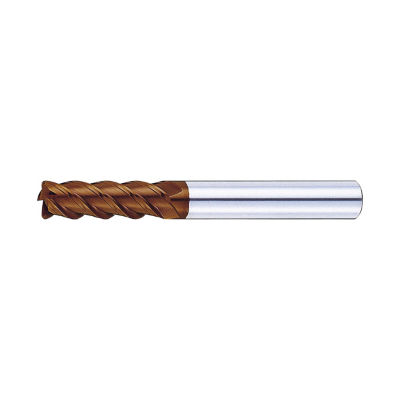

XCP Coated Carbide Radius End Mill For Tempered Steel / High Hardness Steel Machining / 4-Flute / Blade Length 2.5D Type / Regular Type
· A highly versatile series that's ideal for machining work materials from tempered steel (up to 45 HRC) to high hardness steel (up to 65 HRC).
· Coating with excellent hardness and heat resistance makes it suitable for high speed machining.
· 45° radius end mill capable of high-speed and high-efficiency machining
(i)Caution
- See the bottom of the outline drawing tab for cutting conditions.
Part Number
Configured Part Number is shown.
Outline Drawing
Cutting Conditions
| Part Number |
|---|
| SNR-XCP-CR-HEM4SR8-R0.3-[25-45/1]-[5-20/1] |
| SNR-XCP-CR-HEM4SR8-R0.5-[25-46/1]-[5-20/1] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
- | 1 Piece(s) | 4 Day(s) or more | ||
- | 1 Piece(s) | 4 Day(s) or more |
Loading...
Specifications/Overview
● The unique tip pocket shape enables groove cutting at cut depth equal to that of the 2-flute type.
● Gash land blade tip suppresses chipping to the greatest extent possible.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
