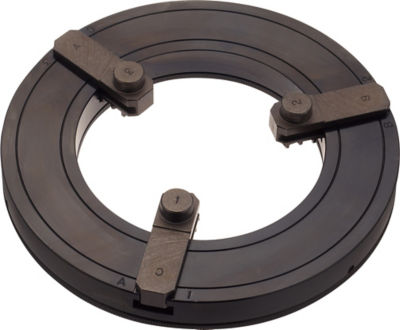

Soft Jaw Processing Jig
- Volume Discount
Not quenched and can be easily processed according to the workpiece diameter. Available at an affordable price.
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| JBR5 |
| JBR6 |
| JBR8 |
| JBR10 |
| JBR12 |
| JBR15 |
| JBTL100 |
| JBTL125 |
| JBTL160 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Chuck Size | Inner Diameter A (mm) | A (mm) | B (mm) | C (mm) | D | E | F | G | J | K | L | Stroke | Maximum Weight | Maximum Speed | Suitable chuck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 789.67 | 1 Piece(s) | Available | 2 Day(s) or more | 5 | - | 76.2 | 19.03 | 12.7 | M16 | 42 | 25 | 5.5 | 48 | 17 | 162 | - | - | - | - | |
MYR 887.42 | 1 Piece(s) | Available | 2 Day(s) or more | 6 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
MYR 951.96 | 1 Piece(s) | Available | 2 Day(s) or more | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
MYR 1,053.86 | 1 Piece(s) | Available | 2 Day(s) or more | 10 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
MYR 1,661.89 | 1 Piece(s) | Available | 2 Day(s) or more | 12 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
MYR 2,490.32 | 1 Piece(s) | Available | 2 Day(s) or more | 15 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
MYR 2,173.12 | 1 Piece(s) | Available | 2 Day(s) or more | - | 100 | - | - | - | - | - | - | - | - | - | - | 7.4 | 1500 | 800 | 5, 6, 8 | |
MYR 2,269.92 | 1 Piece(s) | Available | 2 Day(s) or more | - | 125 | - | - | - | - | - | - | - | - | - | - | 7.4 | 1500 | 700 | 6, 8, 10 | |
MYR 2,751.42 | 1 Piece(s) | Available | 2 Day(s) or more | - | 160 | - | - | - | - | - | - | - | - | - | - | 8.5 | 1750 | 600 | 8, 10, 12 |
Loading...
Specifications
| Model | Chuck Dimension | A | B | C | D | E | F | G |
| JBR | 5 | 12 | 140 | 60 | 12 | 28 | 9 | 13 |
| 6 | 168 | 80 | 32 | 17 | ||||
| 8 | 218 | 115 | 15 | 36 | 19 | |||
| 10 | 259 | 150 | 17 | 40 | ||||
| 12 | 15 | 316 | 188 | 21 | 50 | 23 | ||
| 15 | 20 | 380 | 230 | 23 | 52 | 16 | 31 |
| Model | Inner Diameter A | B | C | D | E | F | G | Stroke | Maximum Weight | Maximum Speed | Suitable Chuck |
| JBTL | 100 | 170 | 26 | 13 | 7 | 19 | 61 | 7.4 | 1,500 | 800 | 5, 6, 8 |
| 125 | 200 | 16.3 | 8 | 700 | 6, 8, 10 | ||||||
| 160 | 248 | 31 | 18.3 | 24 | 80 | 8.5 | 1,750 | 600 | 8, 10, 12 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
