MEPAC eco multi type
Wide range of option is ready with WEB including sensor and attachment, etc. Select from 774 items.
[Features]
· Has 3 types of cylinder diameter with ø8, ø12 and ø18 and 3 driving systems of single acting, double acting and mechanic.
· Select based on usage.
· Wide range of holding specifications with one body.
· Can use both outer diameter or inner diameter holdings only by changing the nail location.
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| X9608E-M-S-E33L1 |
| X9612E-D-SS |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Gripping Methods | Operation Method | Gripping Force (when 0.5Mpa at opening) (N) | Gripping Force (when 0.5Mpa at closing) (N) | Operating Pressure Range (MPa) | Stroke (mm) | Sensor Qty. | Sensor specifications | Flap Open-Close Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 872.98 | 1 Piece(s) | 8 Day(s) or more | Inserted Parallel Type / Mechanical hand | Single Acting | - | - | - | 3 | 1 | E33L1 | Normally Closed | ||
MYR 1,033.40 | 1 Piece(s) | 8 Day(s) or more | Inserted Parallel Type | Double Acting | 16 | 16 | 0.3～0.5 | 6 | 2 | E34L1 | Double Action |
Loading...
Basic Information
| Type | Main Body | Number of Fingers | 2 pcs. | Main Body Shape | Square type |
|---|---|---|---|---|---|
| Environment, Applications | Standard | Additional Functions | No | Stroke Adjustment Mechanism | No |
| Float Sensor | No | Finger Option | No | Hinge pin | With Retaining Ring |
| Air Port Options | Standard Port |
Specification/Dimensions
-
Gripping Methods
- Inserted Parallel Type
- Mechanical hand
-
Operation Method
- Double Acting
- Single Acting
-
Gripping Force (when 0.5Mpa at opening)(N)
-
Gripping Force (when 0.5Mpa at closing)(N)
-
Stroke(mm)
- 3
- 6
-
Sensor Qty.
- 1
- 2
-
Sensor specifications
-
Flap Open-Close Type
- Double Action
- Normally Closed
-
type
- X9608E-M
- X9612E-D
-
CAD
- 2D
Days to Ship
-
- All
- 8 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- Air Gripper/Parallel Type
- Chuck Powerful Chuck, CKL2 Series
- Parallel Hand Long Stroke Hand HGP series
- Angular Type Air Gripper / Standard Type MHC2 Series
- Parallel Type Air Gripper, Standard Type, Compact (Without Auto Switch) MHZA2-6/MHZAJ2-6 Series
- MHQJ2 Series Parallel Type Air Gripper With Dust Cover
- MHR3/MDHR3 Series 3-Finger Type Rotary Actuated Air Gripper
- Toggle Type Air Gripper MHT2 Series
Customers Who Viewed This Item Also Viewed
-
Pickup unit external input typeMACHINE ENGINEERING
Standard Price : MYR 3,216.75
Days to Ship : 8 Day(s) or more
-

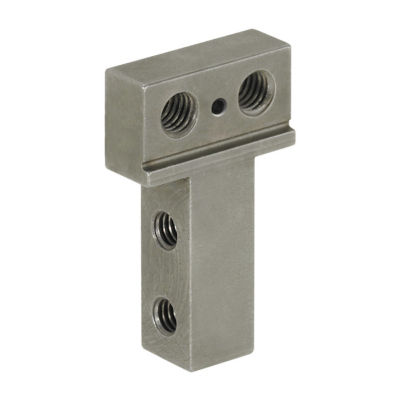

Attachments for Air Grippers
