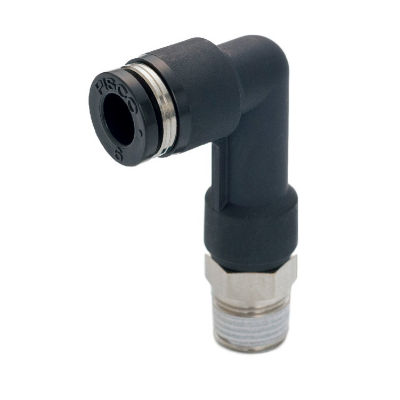

General Piping Use Tube Fitting, Long Elbow
Click this image to zoom it.
Move the mouse over the image to zoom
A wide variety of single action fittings for general piping.
[Features]
· Single action fitting for general pneumatic piping.
· After mounting, the resin unit's removal angle can be changed.
· An extensive lineup of products.
· Allows for centralized piping.
(i)Caution
- The external shape, dimensions, and other qualities may differ for some models of tube fitting. For details, see the product information.
Japanese Only
Part Number
Configured Part Number is shown.
One-Touch Fitting For General Pneumatic Piping
Chart comparing old and new exterior dimensions
- 1.When there is no change in the dimensions of the current and new product designs
- 2. When there is a change in the dimensions of the current and new product designs. Top: current product, Bottom: new design
Long Elbow: Millimeter size appearance (current product)
Long Elbow: Millimeter size dimensional drawing (current product) metric thread type
Long Elbow: Millimeter size appearance (new design)
Long Elbow: Millimeter size dimensional drawing (new design) metric thread type
Long Elbow: Inch size dimensional drawing (current product)
Long Elbow: Inch size dimensional drawing (new design)
High performance and high quality
The lock claw evenly grips the circumference of the tube. Even after many years, tubes still attach and detach like new. Unique elastic sleeve design shuts out air leaks.
Industry-leading range of variations
A wide assortment of different-diameter sizes is available. One fitting can be used where traditionally two fittings were required. By reducing the number of fittings used, you can reduce costs and space. After installation, you can change the take-off angle of the resin body.
Allows centralized piping
The triple types (PKD, PKG, PKJ) and twin triple types (PKVD, PKVG) enable compact, centralized piping.
A clean room packaging specification suitable for piping in a clean environment is available (optional)
The product uses fluorochemical grease and is cleaned with clean air before being packaged in a clean room (equivalent to ISO Class 6). We offer a clean washing specification suitable for various particle- and oil-averse production processes (optional setting for clean room packaging specification).
The product is vacuum sealed after ultrasonic vacuum cleaning with HFE (hydrofluoroether) in a clean room.
| Part Number |
|---|
| PLL8-01 |
| PLL8-02 |
| PLL10-02 |
| PLL12-03 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Applicable Tube O.D.1 (φ) | Nominal of Thread 1 | Orifice Dia (mm) |
|---|---|---|---|---|---|---|---|
MYR 22.13 | 1 Piece(s) | 1 Day(s) | 8 | 1/8 | 6 | ||
MYR 23.07 | 1 Piece(s) | 1 Day(s) | 8 | 1/4 | 6.7 | ||
MYR 28.43 | 1 Piece(s) | 1 Day(s) | 10 | 1/4 | 8 | ||
MYR 42.17 | 1 Piece(s) | 1 Day(s) | 12 | 3/8 | 10 |
Loading...
Basic Information
| Types | One-Touch Couplings | Fitting Type | Screw Mount Direction | Applicable Fluid | Water / Air |
|---|---|---|---|---|---|
| Application | Standard/Mini | Screw Mounting, Direction | Elbow | Elbows | Long Elbows |
| Operating Temperature(°C) | 0::60 | Types of connection screw 1 | R | Package Specifications | Regular Packaging Specifications |
| Release Ring Color | Black | Resin Body Color | Black |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
