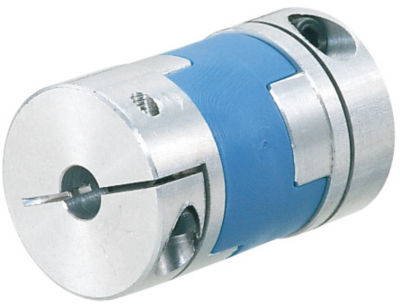

MOL flexible coupling - Oldham type
High torque, small eccentric reaction force, large permissible misalignment large, with vibration absorption.
Part Number
Configured Part Number is shown.
MOL-20C-8-8
Basic Information
| Type | Oldham Type | Allowable Misalignment | Angular Misalignment / Eccentricity | Application | Standard / Stepping Motor |
|---|---|---|---|---|---|
| Allowable Torque Range(N•m) | 1.01~3.00 | Shaft Bore Dia. (machined) D1(Ø) | 8 | Shaft Bore Dia. (machined) D2(Ø) | 8 |
| O.D.(Ø) | 20 | Full Length(mm) | 33.8 | Maximum Range of Rotation Number(r/min) | 10001~78000 |
| Body Material | A2017 | Product Category | Coupling body | Normal Torque(N•m) | 1.2 |
| Max. Rotational Speed(r/min) | 31000 | Allowable Lateral Misalignment Range(mm) | 1.1~3.0 | Allowable Lateral Misalignment(mm) | 1.5 |
| Allowable Angular Misalignment(deg) | 3 | Buffer Material | Polyacetal | Operating Temperature Range(°C) | -20::80 |
| Moment of Inertia(kg･m2) | 1.5×10-6 | Construction | Clamping Type | Additional Work | Standard Shaft Bore |
| Keyway | NA |
Please check the type/dimensions/specifications of the part MOL-20C-8-8 in the MOL flexible coupling - Oldham type series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
