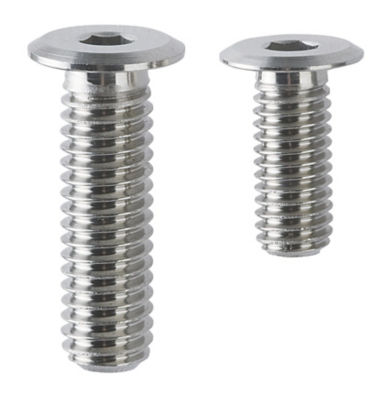

Ultra Low-Profile Head Bolt With Hex Socket SSH【1-10 Pieces Per Package】
[Features]
· All heads are 1.5 mm or less. There is no need to worry about protruding screw heads after tightening.
· For improving the compactness and safety of equipment and systems.
· M2 and M2.5 have recently been standardized.
· Strength classification - SSH threaded portion: 10.9, Head: 5.8 (although the strength is improved by heat treatment, the head is not as strong as normal hexagonal socket head bolts. Please bear this in mind during use.)
· SSHS: A2-40.
· Ultra low head bolt low screws (fully threaded) with hex socket heads are available.
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| SSH-M5X16 |
| SSHS-M2X5-VA |
| Part Number | Standard Unit Price | Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Days to Ship | Nominal of Thread (M) | Length L (mm) | Pitch (mm) | Material | Surface Treatment | Sales Unit | Strength Class (Steel) | Strength Class (Stainless Steel) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 28.72 | 10 Pieces Per Package | 1 Pack(s) | 1 Day(s) | 5 | 16 | 0.8 | Steel | Black Oxide Coating | Box/package | 10.9 | - | ||
MYR 10.67 | 1 Piece(s) | 1 Day(s) | 2 | 5 | 0.4 | Stainless Steel | No | Low Quantity (can be purchased from one) | - | A2-50 |
Loading...
Basic Information
| Detailed Shape | Extra Low Head | Mounting Hole Shape | Hex Socket | Basic Shape | Standard (Round) |
|---|---|---|---|---|---|
| Thread Type | Metric coarse | Application | Standard |
Specification/Dimensions
-
Nominal of Thread (M)
-
Length L(mm)
-
Pitch(mm)
-
Material
-
Surface Treatment
- No
- Black Oxide Coating
-
Sales Unit
-
Strength Class (Steel)
-
Strength Class (Stainless Steel)
-
type
- SSH
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
