Desktop Vibration Isolation Base
[Features]
· A simple vibration isolation base that can be used on work desks and work benches as is.
· A lightweight, compact, and slim type. Easy to carry around.

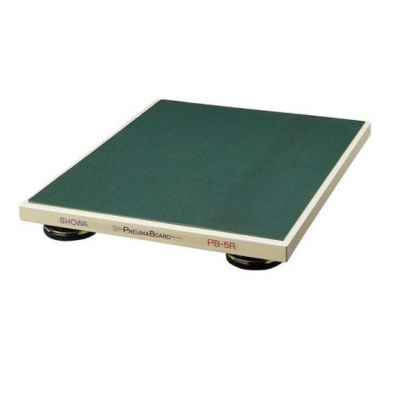

· The 5R type is equipped with special vibration-proof rubber for high level vibration removal performance.
· Easy to use as no air source is required.
· Includes built-in orifices within the vibration-proof rubber. This and the diaphragm effect (similar to an air spring) provide smooth vibration-damping functionality.

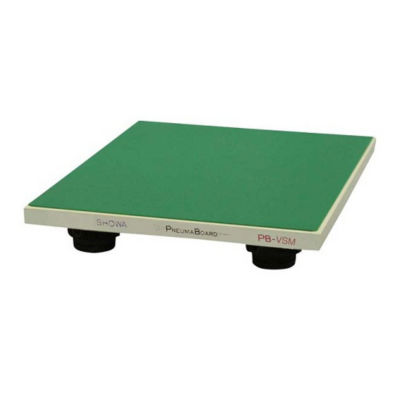

· The VSM type is a maintenance-free vibration isolation base featuring a composite mount (patent pending) that combines a coil spring and a viscoelastic body. Boasts excellent vibration-proofing performance together with high damping characteristics. Boasts resonance magnification of approximately 250%.
· Because it features a leveling function, it also supports variable equipment loads.
· The 5AA type features a built-in small automatic level regulator. As such, if there is an air source, it will automatically adjust the pressure of the air spring in response to the load on the spring, helping maintain the horizontal. Turn the pin lever valve ON or OFF to intake or exhaust in approximately two seconds and eliminate any shaking during adjustments of the equipped equipment. Includes a ø6 mm × 3 m urethane tube and joint (RT1/8, male thread) for connecting to an air source.
Japanese Only
| Part Number |
|---|
| PB-5AA-1070 |
| PB-5AA-8060 |
| PB-5R-1070 |
| PB-5R-8060 |
| PB-VSM-1070 |
| PB-VSM-8060 |

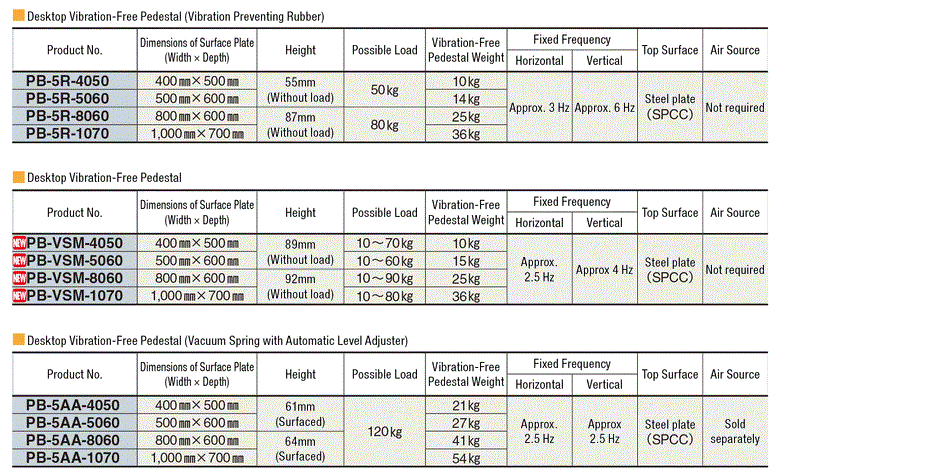

| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Types | Base Width (mm) | Base Depth (mm) | Height (mm) | Mountable mass (kg) | Natural frequency (Hz) | Air Source |
|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 18,322.57 | 1 Piece(s) | 22 Day(s) or more | Air Spring Type with Automatic Level Controller | 1000 | 700 | 64 | 120 | About 2.5 in horizontal, about 2.5 in vertical | Separately necessary | ||
MYR 15,385.94 | 1 Piece(s) | 22 Day(s) or more | Air Spring Type with Automatic Level Controller | 800 | 600 | 64 | 120 | About 2.5 in horizontal, about 2.5 in vertical | Separately necessary | ||
MYR 13,331.29 | 1 Piece(s) | 22 Day(s) or more | Anti-vibration Rubber Type | 1000 | 700 | 87 | 80 | About 3 in horizontal, about 6 in vertical | N/A | ||
MYR 11,722.95 | 1 Piece(s) | 22 Day(s) or more | Anti-vibration Rubber Type | 800 | 600 | 87 | 80 | About 3 in horizontal, about 6 in vertical | N/A | ||
MYR 15,230.34 | 1 Piece(s) | 22 Day(s) or more | Complex Mount Type | 1000 | 700 | 92 | 10~80 | About 2.5 in horizontal, about 4 in vertical | N/A | ||
MYR 12,988.98 | 1 Piece(s) | 22 Day(s) or more | Complex Mount Type | 800 | 600 | 92 | 10~90 | About 2.5 in horizontal, about 4 in vertical | N/A |
Loading...
Basic Information
| Base Material | Steel plates (SPCC) |
|---|
Specification/Dimensions
-
Types
- Air Spring Type with Automatic Level Controller
- Anti-vibration Rubber Type
- Complex Mount Type
-
Base Width(mm)
-
Base Depth(mm)
-
Height(mm)
-
Mountable mass(kg)
-
Natural frequency(Hz)
-
Air Source
- N/A
- Separately necessary
-
type
- PB
Days to Ship
-
- All
- 22 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
