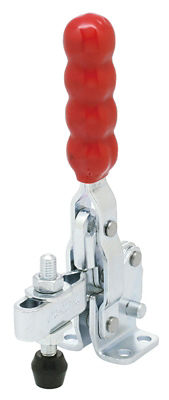

Vertical Type Toggle Clamp ST-VTC207
[Application]
· Used as an assembly, inspection, and welding clamp.
[Features]
· Low-cost compared to other products.
Japanese Only
Part Number
Configured Part Number is shown.
ST-VTC207U
Tool-Free Clamp (ST-VTC207) Features
Outline drawing (ST-VTC207U)
Outline drawing (ST-VTC207S)
| Type | Main Body | Arm | Grip | Bolt, Nut | Pad |
|---|---|---|---|---|---|
| ST-VTC-U | SPCC zinc plating | SPCC | Polyvinyl chloride | SUM41 | Chloroprene rubber (CR) |
| ST-VTC-S | SM400A |
Dimensional drawing
Dimensional drawing: ST-VTC207S (welding type)
Dimensional drawing (ST-VTC207U)
| Part Number | L | L1 | Clamping Pressure (kN) | Weight (g) |
|---|---|---|---|---|
| ST-VTC207U | 100 | 57.5 | 1.75 | 300 |
| ST-VTC207S | 98 | 55 | 2.15 | 315 |
| Part Number |
|---|
| ST-VTC207U |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 83.11 | 1 Piece(s) | 1 Day(s) |
Loading...
Basic Information
| Attaching Method | Flanged | Tightening Force (Range Selectable)(N) | 1050 to 2259 | Body Material | SPCC |
|---|---|---|---|---|---|
| Clamp Screw Size | M8 | Clamp Screw Material | SUM41 (Bolt, Nut)+Chloroprene Rubber (Pad) | Product Category | Clamp |
| Tightening Force(N) | 1750 | Tip Screw Type | Bolt with Rubber | Tip Screw Position Adjustment | Adjustable |
Please check the type/dimensions/specifications of the part ST-VTC207U in the Vertical Type Toggle Clamp ST-VTC207 series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
