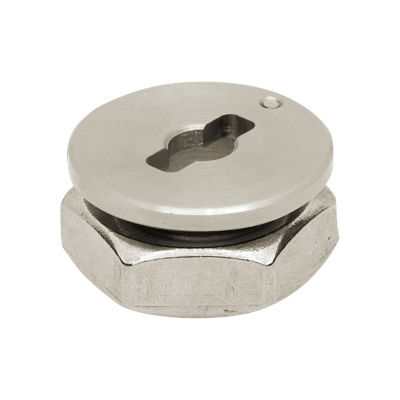

Cam case (QCTH-N, QCTH-B)
[Features]
· Pin applies spring pressure at the cam surface inside the cam case, pulling plate inside.
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| QCTH0525-B-SUS |
| QCTH0525-N-SUS |
| QCTH0834-B-SUS |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Mounting Type | Applicable base thickness (mm) |
|---|---|---|---|---|---|---|
MYR 159.91 | 1 Piece(s) | 1 Day(s) | For Recessing | Over 10 | ||
MYR 165.83 | 1 Piece(s) | 1 Day(s) | For Sheet | 6~10 | ||
MYR 184.61 | 1 Piece(s) | 1 Day(s) | For Recessing | Over 12 |
Loading...
Basic Information
| Body Material | SCS24 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
