Tool Scope Type IE/LE Lens Barrels
[Features]
· A Tool Scope that includes a C mount for TV cameras.
· Objective lens images are received by the directly connected TV camera and the C mount alignment can be adjusted.
· Specify an objective lens. Will be included and shipped.
· Also available without an objective lens. Contact us for more information.
· Tool Scope is a registered trademark of Chuo Precision Industrial Co., Ltd. in Japan.
Japanese Only
Objective Lens Images Are Directly Received By The TV Camera And The C Mount Alignment Can Be Adjusted
IE type barrel appearance

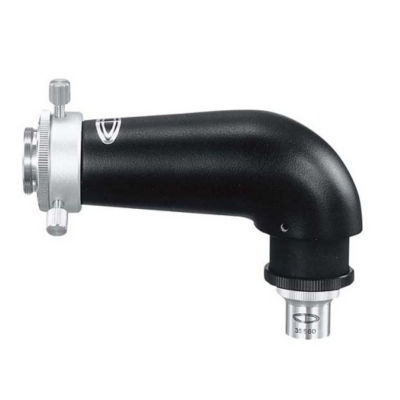

LE type barrel appearance
Lens Magnification Combination Table
| TV-IE, TV-LE Lens Combination Table | |||||||
|---|---|---|---|---|---|---|---|
| Objective Lens | OB-1 | OB-2 | OB-3 | OB-5 | OB-10 | OB-20 | LWD-20 |
| Objective Lens Length | 21 mm | 21 mm | 21 mm | 21 mm | 29.5 mm | 35.5 mm | 31 mm |
| Working Distance (W.D.) | 165 mm | 71.5 mm | 34 mm | 13 mm | 6.5 mm | 1.5 mm | 5.8 mm |
Specifications
| Product Number | TV-IE | TV-LE |
|---|---|---|
| Product Name | IE Type Barrel | LE Type Barrel |
| Lens Barrel Type | Straight Barrel | Tilt angle 90° |
| Mechanical Tube Length | 163 mm | |
| Compatible Objective Lenses | OB-1, OB-2, OB-3, OB-5, OB-10, OB-20, LWD-20 | |
| C mount | 32-thread / 25.4 mm / Flange Focal Distance 17.526 mm | |
| Mass | 0.4 kg | |
Dimensional Drawing
TV-IE dimensional drawing
TV-LE dimensional drawing
Development Tidbits
This product was developed when a customer requested to imprint an image into a TV camera. Tool Scope is a registered trademark of Chuo Precision Industrial Co., Ltd. in Japan.
Related Products
| Part Number |
|---|
| TV-LE-10 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 2,643.09 | 1 Piece(s) | 6 Day(s) or more |
Loading...
Basic Information
| Barrel type | LE Type Barrel | Object Lens ratio | 10 Times | Objective Lens type | OB-10 |
|---|---|---|---|---|---|
| Operating Distance | 6.5mm | Mechanical Tube Length | 163mm | C Mount | 32-Thread / 25.4 mm / Flange Focal Distance 17.526 mm |
Please check the type/dimensions/specifications of the part TV-LE-10 in the Tool Scope Type IE/LE Lens Barrels series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
