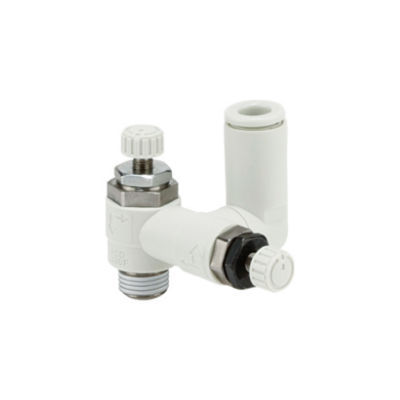

Dual Speed Controller With One-Touch Fitting, ASD Series
Speed controller with unrestricted 360° tube mounting direction.
[Features]
· Allows bi-directional flow control (meter-in and meter-out) using one speed controller.
· Prevents stick-slip of cylinders.
· Speed control of single-acting cylinders.
(i)Caution
- For specifications and details, please refer to the catalog.
- Product images may be representative images. Refer to the catalog for details.
Part Number
Configured Part Number is shown.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Lock Nut Option | Connection Dia. | Types of Screw | Applicable Tube O.D. mm (mm) | Applicable Tube O.D. inch size (inch) | Body Size |
|---|---|---|---|---|---|---|---|---|---|---|
MYR 114.78 | 1 Piece(s) | 1 Day(s) | Hexagon Shape Lock Nut | 5 × 0.8 | M | 4 | - | M5 standard | ||
MYR 114.78 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 5 × 0.8 | M | 6 | - | M5 standard | ||
MYR 117.43 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 10-32 | UNF | - | 1/8 | M5 standard | ||
MYR 114.78 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 10-32 | UNF | - | 5/32 | M5 standard | ||
MYR 114.78 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 10-32 | UNF | - | 3/16 | M5 standard | ||
MYR 114.78 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 10-32 | UNF | - | 1/4 | M5 standard | ||
MYR 151.42 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/8 | R | 6 | - | 1/8 standard | ||
MYR 160.70 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/8 | R | 8 | - | 1/8 standard | ||
MYR 151.42 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/8 | NPT | - | 3/16 | 1/8 standard | ||
MYR 151.42 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/8 | NPT | - | 1/4 | 1/8 standard | ||
MYR 160.70 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/8 | NPT | - | 5/16 | 1/8 standard | ||
MYR 169.95 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | R | 6 | - | 1/4 standard | ||
MYR 169.95 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | R | 8 | - | 1/4 standard | ||
MYR 193.35 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | R | 10 | - | 1/4 standard | ||
MYR 169.95 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | NPT | - | 1/4 | 1/4 standard | ||
MYR 169.95 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | NPT | - | 5/16 | 1/4 standard | ||
MYR 193.35 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | NPT | - | 3/8 | 1/4 standard | ||
MYR 212.33 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | R | 6 | - | 3/8 standard | ||
MYR 212.33 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | R | 8 | - | 3/8 standard | ||
MYR 212.33 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | R | 10 | - | 3/8 standard | ||
MYR 232.20 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | R | 12 | - | 3/8 standard | ||
MYR 216.75 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 3/8 | R | 6 | - | 3/8 standard | ||
MYR 216.75 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 3/8 | R | 8 | - | 3/8 standard | ||
MYR 216.75 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 3/8 | R | 10 | - | 3/8 standard | ||
MYR 232.20 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 3/8 | R | 12 | - | 3/8 standard | ||
MYR 212.33 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | NPT | - | 1/4 | 3/8 standard | ||
MYR 212.33 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | NPT | - | 5/16 | 3/8 standard | ||
MYR 212.33 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/4 | NPT | - | 3/8 | 3/8 standard | ||
MYR 216.75 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 3/8 | NPT | - | 1/4 | 3/8 standard | ||
MYR 216.75 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 3/8 | NPT | - | 5/16 | 3/8 standard | ||
MYR 216.75 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 3/8 | NPT | - | 3/8 | 3/8 standard | ||
MYR 304.58 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/2 | R | 10 | - | 1/2 standard | ||
MYR 304.58 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/2 | R | 12 | - | 1/2 standard | ||
MYR 304.58 | 1 Piece(s) | 21 Day(s) | Hexagon Shape Lock Nut | 1/2 | NPT | - | 3/8 | 1/2 standard |
Loading...
Basic Information
| Type | Speed Controller | Format | Universal | Control Method | Meter Out / In |
|---|---|---|---|---|---|
| Joint Type | Male thread + One-Touch Couplings | Material | PBT | Environment, Applications | Standard |
| Thread Material | Stainless steel 303 | Knob Type | Resin | Made-to-order specifications | None |
Specification/Dimensions
-
Connection Dia.
- 1/2
- 1/4
- 1/8
- 3/8
- 5 × 0.8
- 10-32
-
Types of Screw
- M
- NPT
- R
- UNF
-
Applicable Tube O.D. mm(mm)
- 4
- 6
- 8
- 10
- 12
-
Applicable Tube O.D. inch size(inch)
-
Body Size
-
type
- 10-ASD230F
- 10-ASD□30F
- ASD□30F
-
Lock Nut Option
- Round Shape Lock Nut
- Hexagon Shape Lock Nut
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 7 Day(s) or Less
- 14 Day(s) or Less
- 17 Day(s) or Less
- 21 Day(s) or Less
- 23 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
