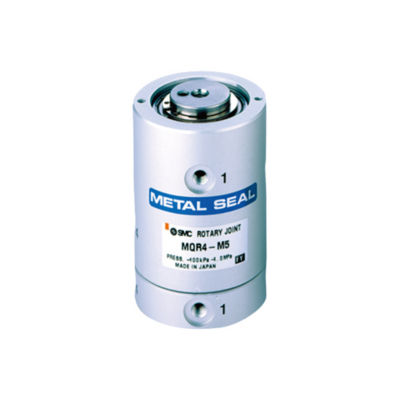

Low Torque Rotary Joint MQR Series
A rotary manifold in which the piping ports are aligned in a spiral pattern for easy piping.
[Features]
· Stable rotational torque that is not easily affected by supply pressure or temperature fluctuations.
· There is no change in the rotary torque due to spool sticking to the rotating surface, even after a long periods of non-operation.
· Low rotational torque: 0.003 to 0.50 N·m or less.
· Operating temperature: -10 to +80°C.
· Allowable rotational speed: 200 to 3,000 min-1 (rpm).
[Applications]
· For air supplies to rotational/rocking shafts on metal-seal type turntables, robot arms, etc.
(i)Caution
- Refer to the catalog for product specs.
- The product shown in the image may be a representative image. Refer to the catalog for product shapes and types.
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| MQR1-M5 |
| MQR2-M5 |
| MQR4-F |
| MQR4-M5 |
| MQR8-M5 |
| MQR12-F |
| MQR12-M5 |
| MQR16-M5 |
| MQRF2-M5 |
| MQRF4-M5 |
| MQRF8-M5 |
| MQRF12-M5 |
| MQRF16-M5 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Number of Circuits (Number of Ports) | Allowable Rotational Speed (min-1(r.p.m.)) | Type | Thread size P |
|---|---|---|---|---|---|---|---|---|
MYR 712.05 | 1 Piece(s) | 21 Day(s) | 1 | 3000 | Standard | R 1/8 | ||
MYR 3,843.15 | 1 Piece(s) | 21 Day(s) | 2 | 2000 | Standard | - | ||
MYR 337.72 | 1 Piece(s) | 21 Day(s) | - | - | - | - | ||
MYR 5,418.18 | 1 Piece(s) | 21 Day(s) | 4 | 1500 | Standard | - | ||
MYR 8,561.65 | 1 Piece(s) | 21 Day(s) | 8 | 900 | Standard | - | ||
MYR 386.25 | 1 Piece(s) | 21 Day(s) | - | - | - | - | ||
MYR 13,768.37 | 1 Piece(s) | 21 Day(s) | 12 | 600 | Standard | - | ||
MYR 42,234.78 | 1 Piece(s) | 21 Day(s) | 16 | 200 | Standard | - | ||
MYR 4,157.02 | 1 Piece(s) | 21 Day(s) | 2 | 2000 | Flange | - | ||
MYR 5,755.87 | 1 Piece(s) | 21 Day(s) | 4 | 1500 | Flange | - | ||
MYR 8,923.60 | 1 Piece(s) | 21 Day(s) | 8 | 900 | Flange | - | ||
MYR 14,154.63 | 1 Piece(s) | 21 Day(s) | 12 | 600 | Flange | - | ||
MYR 43,006.87 | 1 Piece(s) | 21 Day(s) | 16 | 200 | Flange | - |
