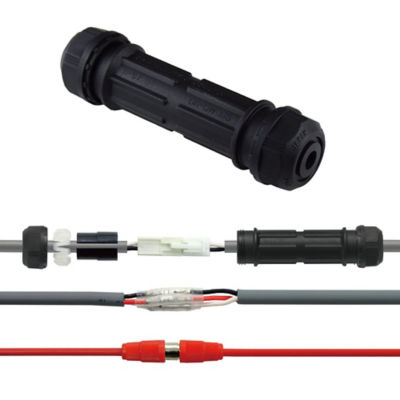

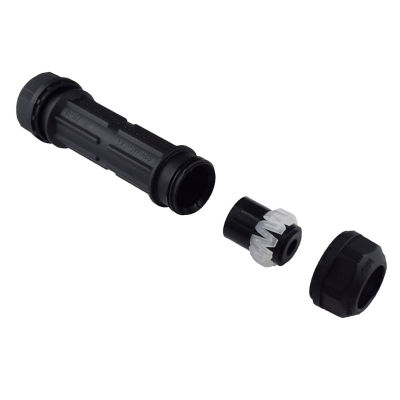

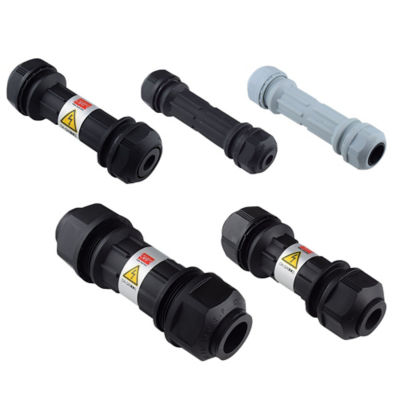

Waterproof insulation cap OA-QW series
Conforms to protection grade IP67. For waterproofing various wiring relay parts. Can be installed after assembly for protection with ease.
[Main Specifications]
· Rated voltage: 600 VAC/DC
· Operating ambient temperature: -25 to + 80°C
· Internal space (mm): ø14.6 x 50
· Model number: Oil resistant (black rubber bushing) OA-QWxxxxxSN
Weather Resistance (Blue Rubber Bushing) OA-QWxxxxxSEN
Japanese Only
Part Number
Configured Part Number is shown.
OA-QW09SRSN
Basic Information
| Material (Main Body) | Nylon | Main Body Color | Black | IP protection class | IP67 |
|---|---|---|---|---|---|
| Operating Temperature Range(°C) | -25 to +80 | Outer Diameter φ(mm) | φ26 | Length(mm) | 98 |
| Environmental characteristics | Oil Resistance | Conforming wire diameter (L side)(mm) | φ4～9 | Conforming wire diameter (R side)(mm) | φ4～9 |
| Internal space(mm) | φ14.6×50 |
Please check the type/dimensions/specifications of the part OA-QW09SRSN in the Waterproof insulation cap OA-QW series series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
