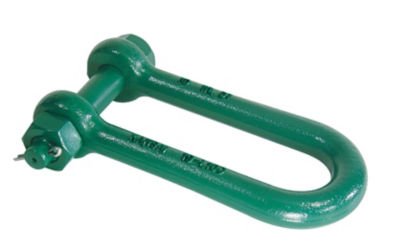

High Strength Long Shackle Bolt And Nut Fastener Type
Part Number
Configured Part Number is shown.
KL-16X140
Features
●Strength will be greatly increased by increasing the size of the curved portion diameter.Usage
●Cargo handling work.Specification
●Mounting: Bolt TypeMaterials
●Alloy Steel
Basic Information
| Working Load(t) | 3.5 | Material | Alloy Steel | Product Type | Shackle |
|---|---|---|---|---|---|
| Dimension t(mm) | 16 | Size B(mm) | 40 | Size d3(mm) | 17 |
| Size W(mm) | 19 | Size B1(mm) | 40 | Size L(mm) | 140 |
| Size D(mm) | 38 | Trusco Code | 305-0823 | Specifications | Strength can be drastically increased by increasing the size of the curve diameter. |
| Features | Luggage handling work. | Attachment | Bolt Type | Mass(g) | 1000 |
| Amount Of Content | 1 pc. |
Please check the type/dimensions/specifications of the part KL-16X140 in the High Strength Long Shackle Bolt And Nut Fastener Type series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
