Replacement Blade Insert T (Triangle) TNGG-R-FX

A triangle-shaped insert.

Part Number

Configured Part Number is shown.

TNGG160404R-FX-T1500Z

Part Number
TNGG160404R-FX-T1500Z

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Days to Ship
	MYR 57.31	10 Piece(s)		Quote

Shape	T (Triangular)	Use	Outer Diameter / Inner Diameter	Work Material	Steel / Stainless Steel / Cast Iron / Non-Ferrous Metal
Breaker Application	Finish	Rake Angle	Negative	Preferred Hand	Right Handed
Nose Radius	0.4	Clearance Angle(°)	0	Corner Height Tolerance	±0.025
Inscribed Circle Tolerance	±0.025	Thickness Tolerance	±0.13	Slot Code	G
Hole Availability	Available	Hole Shape	Cylinder State	Breaker Availability	Both Faces

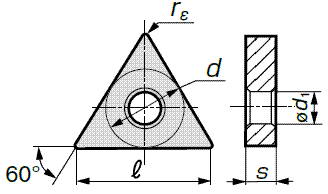

Material Type	T1500Z	Dimension S(mm)	4.76	Dimension φd(mm)	9.525
Detail Nose Radius(mm)	0.4	Cutting Edge Length(mm)	16.5	Material	Coated cermet

Please check the type/dimensions/specifications of the part TNGG160404R-FX-T1500Z in the Replacement Blade Insert T (Triangle) TNGG-R-FX series.

Configure

1 Part Numbers

Configure Remaining Specifications

Completed

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
