Taper end mill 2 flutes
A small diameter taper end mill that standardizes maximum taper angles up to 15 degrees.
Part Number
Configured Part Number is shown.
ATES-22001
| Part Number |
|---|
| ATES-22001 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 352.14 | 1 Piece(s) | 3 Day(s) or more |
Loading...
Basic Information

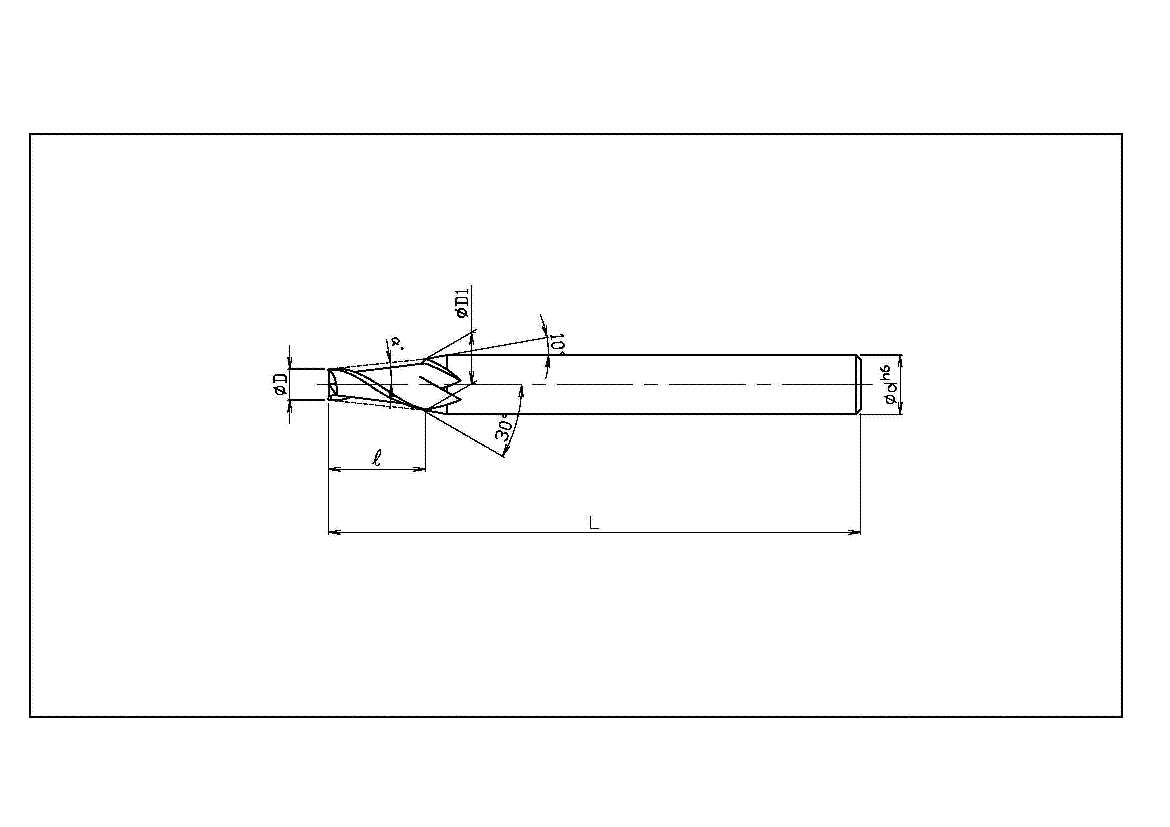

| Single corner (θ)(Degree) | 30′ | Tip diameter D(φ) | 2 | Type | Tapered square |
|---|---|---|---|---|---|
| work material | general steel / Quenched and tempered steel / Stainless Steel / Aluminum / Resin | Blade Length l(mm) | 8 | Number of flutes(sheet) | 2 |
| shank d(mm) | 4 | Overall Length L(mm) | 45 | Torsion(°) | 30 |
| Large End Diameter (φ) | 2.14 | O.D. Tolerance(mm) | +0/-0.03 |
Please check the type/dimensions/specifications of the part ATES-22001 in the Taper end mill 2 flutes series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
